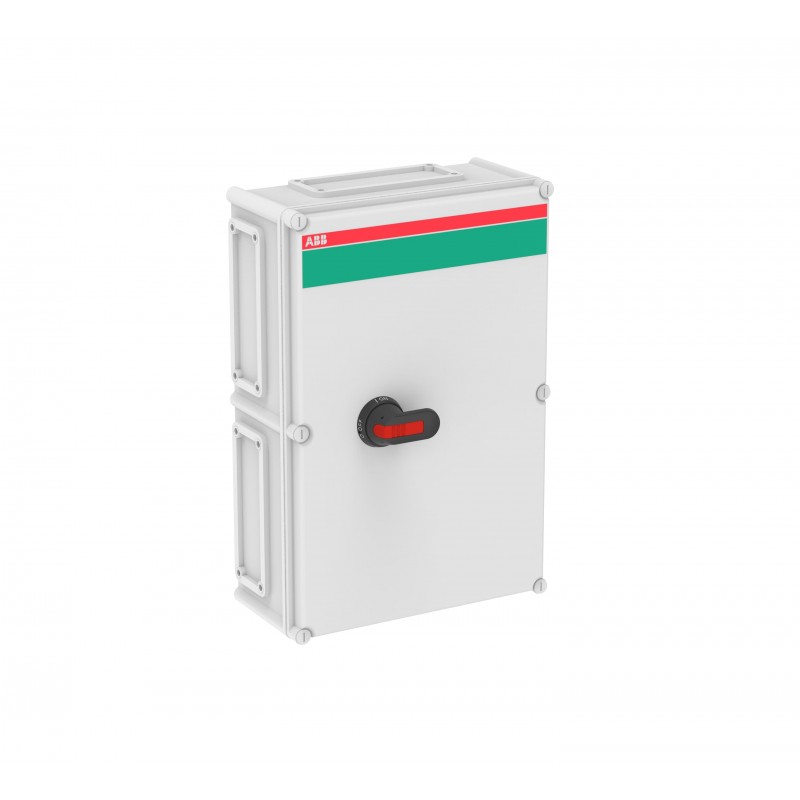

1SCA022276R8670 ABB Int. Boxed disconnector OT200KGCC3T

Reference: 1SCA022276R8670

Manufacturer: ABB

Description:

Int. Boxed disconnector OT200KGCC3T
OT200KGCC3T Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.317,35 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP804afe15-48d9-4a8d-839c-5596734b7bd4 Finland
Simplified SCIPb3387636-b198-414e-9bfa-72b645245a0b Germany
6017f4c3-6fb5-4e75-b7ad-2d15cceddad9 Poland
56e61994-3d0c-4e1d-9c22-6a5f50bd5c3d Spain
6562f206-0113-4975-8817-d893f3bc11eb Hungary
760c68e2-0852-4a64-9e43-4f883e61dc1c Germany
a25bd67a-922a-4438-b9fe-38e611f1b2e8 Italy
4d39b95b-c89f-40a0-89ee-02557e0d3e55 Bulgaria
5c3bfe4c-d42c-423f-857b-c5eec0b6496f Portugal
ba3c6911-1e86-45cb-ab1c-fb9a55c938e6 Greece
6ed320ab-6937-4b80-881f-e04444154535 Sweden
7ccd911f-3b65-4125-887d-b241879e5237 Estonia
d2da87d0-82e7-436d-a9b3-6f049bb72574 Poland
7d380ffd-5368-4b8c-b560-71bfad71dc26 France
51508452-c9b2-4164-8778-8d0e8eb0a5ad Sweden
3e57c13b-391a-49cc-877f-3f1e7387b149 Poland
02426ec0-04ad-4e7a-8d54-70fbdc5bdec7 Netherlands
f2c71a4b-b7c0-4812-8aa1-d7c08736c45c France
333250e9-ac0d-4a92-80b7-3d657df54f55 Germany
baa74bee-bcd0-430d-b756-ee749c955702 Belgium
406c50ce-aa8f-4a27-95df-275ba6a3c16e Hungary
9b163463-b210-41f5-9592-c521d5de6f4a Germany
3e8a3a0f-f2f4-421d-8ac2-ed645e61b220 Norway
670bbe1d-c649-4480-9aaa-e67ae0dd3fe7 Denmark
c84a1979-658f-4a9b-98c7-44ea27fd4bbf Belgium
becaabd1-6030-4cbd-bebd-ed3de187e4ea Germany
7d6a0e3c-b6c8-40f5-a622-7f1c3823d23c Czech Republic
0e25a538-2d22-4151-837e-4bb27a6e4e5b Croatia
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Mechanical DrawingsOTPK563818PII.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width380 mm
Product Net Height560 mm
Product Net Depth / Length180 mm
Product Net Weight7.366 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight9.3 kg
Package Level 1 EAN6417019063249
Technical
Cable Entry PositionBottom/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7035
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsBottom In - Bottom Out
Position of PE TerminalsBottom In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642403
E-Number (Norway)1429336
E-Number (Sweden)3140270

ETIM for 1SCA022276R8670 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value380 mm
Feature nameHeight (EF000040)
Feature value560 mm
Feature nameDepth (EF000049)
Feature value180 mm
