ABBManual Switches1SCA022260R5370 ABB Int. Boxed disconnector OT200KFCC3T

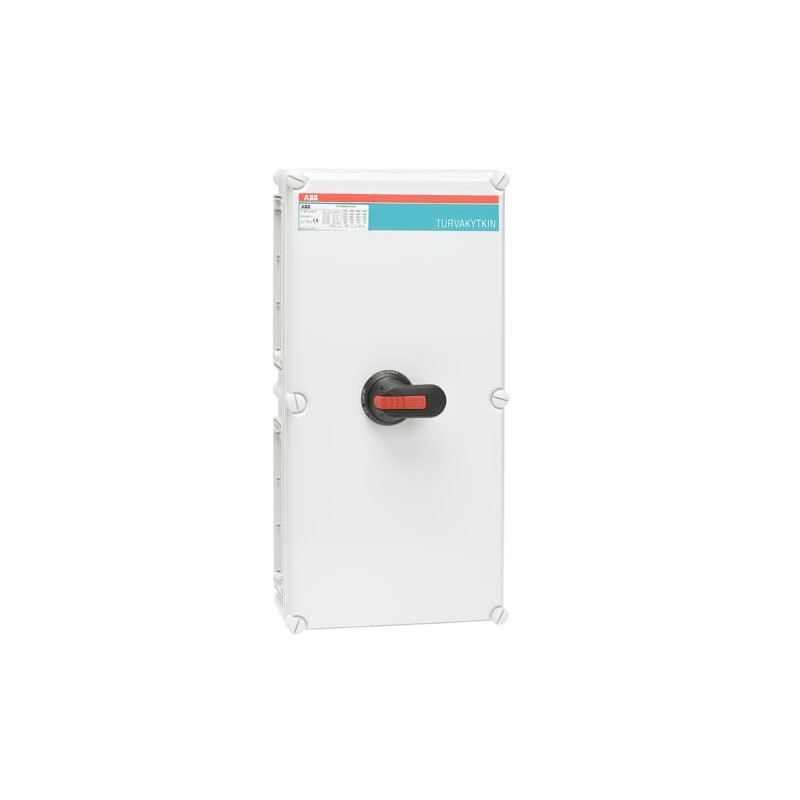

ABB 1SCA022260R5370 1SCA022260R5370 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022260R5370 ABB Int. Boxed disconnector OT200KFCC3T

Reference: 1SCA022260R5370

Manufacturer: ABB

Description:

Int. Boxed disconnector OT200KFCC3T
OT200KFCC3T Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 745,28 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP6d597b95-b91b-429c-bc8b-4586c88f6592 Finland
Simplified SCIPed4190ef-e9f3-4d5f-b178-86efc1cd4bee Germany
cd9b66f8-5d7b-40b4-a3bb-86b1bd746f68 Spain
1d7fee6d-b3e6-4e35-85a8-2e8e9f3b13fe Germany
6a12cffc-4698-4bc1-ae8b-080eb376e624 Greece
5f2b4792-2bd0-406f-a115-b176ece4c0e4 Poland
f4a71043-ed1e-4191-a0f0-6fd9be219375 Germany
6e501ecd-3fa9-47e7-88e6-4556800ddd91 Italy
8c0dd486-7c94-45c5-8416-71ab7df46ec7 France
db271ed8-257c-43f8-960a-497fe56a2711 Poland
991b3f2b-4ee0-43a7-9c36-6a8a7d22bbfe Bulgaria
eb8d73e3-c4a7-47f1-9147-fcfe56d4b750 Estonia
e668298d-4e23-4a5c-b7d3-a25705eecf97 Sweden
cb840380-264d-41e8-bc97-bc49865cc9ee Netherlands
98ddd9a3-c24f-492b-a721-05e18d81ba34 Poland
7ab4ea49-d167-434e-90a7-c1bea5fbb8eb Portugal
598a6307-b806-47ac-86be-975781f762ba Sweden
56ee1cb1-8156-4dd6-ba25-0555a4f7c420 Hungary
22114b1d-6825-4cff-8b65-faa3dcebfe14 Belgium
2171cb9e-e0f2-4173-8124-808b466626c6 Germany
bf7c8c2d-c113-4ebc-a331-be4c6893c8a7 France
1d6104fa-a019-4b34-a7d1-a3fadc7afdf0 Norway
4dbcebd3-a07a-46d9-8f06-ec8122591172 Denmark
b0f4f95c-8116-4c8c-8dfa-e76e5fd10df1 Belgium
b86fc045-1ff3-441f-8ff4-8681cd5c85be Czech Republic
86f64f5e-7db8-4e8e-9492-ce0ff15c7d4d Germany
c595aa0a-1b47-47b2-a5ff-cd1b5ec1cf4d Croatia
29370ecc-6c7e-45cc-8b18-fee4853e58f3 Hungary
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width280 mm
Product Net Height560 mm
Product Net Depth / Length130 mm
Product Net Weight7.063 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight9.3 kg
Package Level 1 EAN6417019115931
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7035
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Position of PE TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642401
E-Number (Norway)1429306
E-Number (Sweden)3140228

ETIM for 1SCA022260R5370 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
