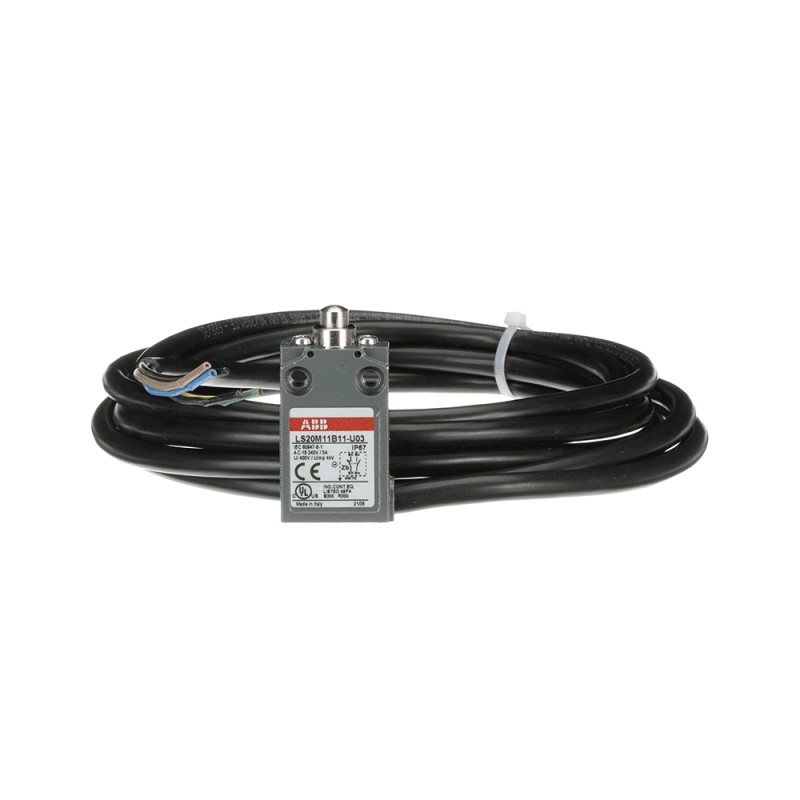

ABB 1SBV015511R2603 1SBV015511R2603 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SBV015511R2603 ABB LS20M11B11-U03 limit switch

Reference: 1SBV015511R2603

Manufacturer: ABB

Description:

LS20M11B11-U03 limit switch

LS20M11B11-U03 final race

Categories:

Sensors > End switch
ABB > Detectors and limit switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 51,74 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity	10 piece
Customs Tariff Number	85364900
Popular Downloads
Data Sheet, Technical Information	1SBC141157C0202
Instructions and Manuals	1SBC141157C0202
Dimensions
Product Net Width	30 mm
Product Net Height	60 mm
Product Net Depth / Length	16 mm
Product Net Weight	0.375 kg
Technical
B10d Value	Operations 20 Millions
Conventional Free-air Thermal Current (I_th)	acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection	acc. to IEC 60529 IP67
Maximum Electrical Switching Frequency	(AC-15) 3600 cycles per hour
	(DC-13) 3600 cycles per hour
Mechanical Durability	10 million
Rated Impulse Withstand Voltage (U_imp)	4 kV
Rated Operational Current AC-15 (I_e)	(24 V) 10 A
	(130 V) 5.5 A
	(240 V) 3 A
Rated Insulation Voltage (U_i)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V
Rated Operational Current DC-13 (I_e)	(24 V) 2.8 A
	(125 V) 0.55 A
	(250 V) 0.27 A
Environmental
Ambient Air Temperature	Operation -25 ... +70 °C
	Storage -40 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SBD251109E1001
RoHS Declaration	1SBD251110E1000
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	2CMT2023-006537
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Certificates and Declarations
CQC Certificate	CQC2004010305127663
cUL Certificate	9AKK107991A7379
Declaration of Conformity - CCC	2024010305660669
Declaration of Conformity - CE	1SBD250883U1000
Declaration of Conformity - UKCA	1SBD250886U1000
Container Information
Package Level 1 Units	bag 1 piece
Package Level 1 Width	70 mm
Package Level 1 Depth / Length	200 mm
Package Level 1 Height	45 mm
Package Level 1 Gross Weight	0.38 kg
Package Level 1 EAN	3471522635655
External Classifications and Standards
ETIM 6	EC000030 - End switch
ETIM 7	EC000030 - End switch
ETIM 8	EC000030 - End switch
eClass	V11.0 : 27272601
UNSPSC	39122213
IDEA Granular Category Code (IGCC)	5202 >> Limit switch

DATASHEET - PDF

Title

Size

Type

PDF CATALOG SWITCHES EN

33 Mbytes
