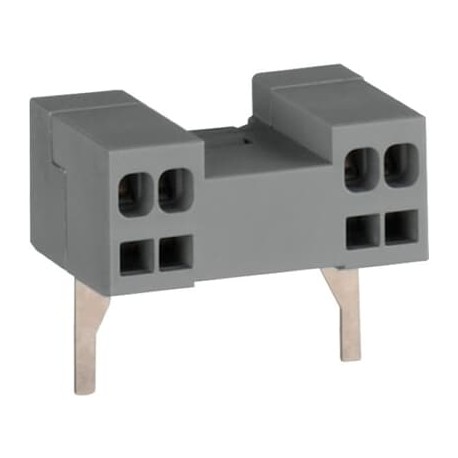

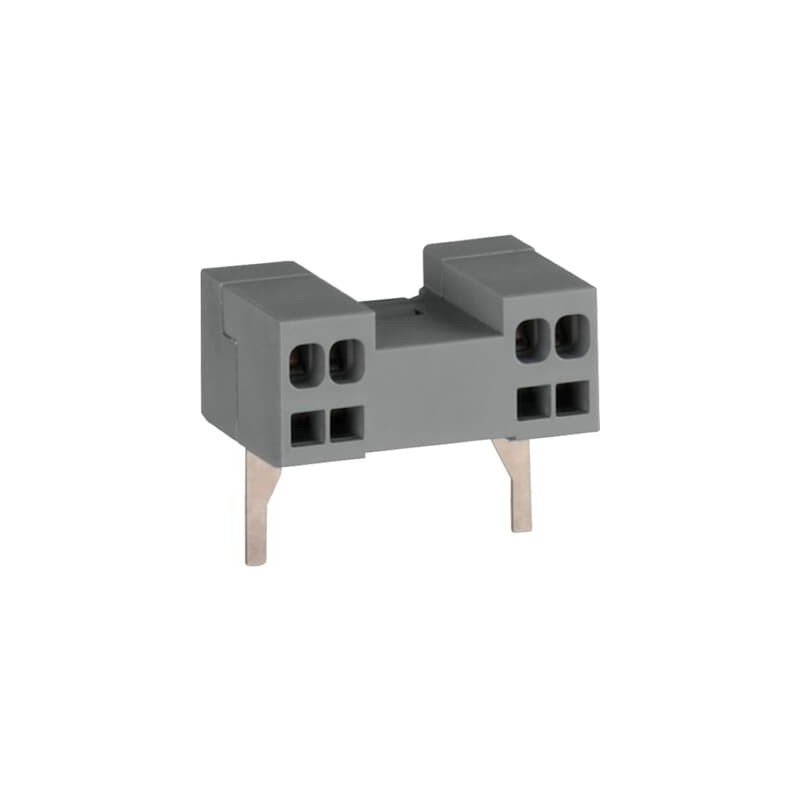

1SBN070157T1000 ABB COIL SPRING
1SBN070157T1000
ABB
COIL SPRING
LDC4S Additional Coil Terminal Block
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- LDC4S
- Product ID:
- 1SBN070157T1000
- EAN:
- 3471523130685
- Catalog Description:
- LDC4S Additional Coil Terminal Block
- Long Description:
- Additional coil terminal blocks for a bottom access to the coil terminals of contactors or contactor relays.
Ordering
- EAN:
- 3471523130685
- Minimum Order Quantity:
- 10 piece
- Customs Tariff Number:
- 85369010
Dimensions
- Product Net Width:
- 35mm
- Product Net Height:
- 24mm
- Product Net Depth / Length:
- 22mm
- Product Net Weight:
- 0.01kg
Container Information
- Package Level 1 Units:
- box 10 piece
- Package Level 1 Width:
- 85 mm
- Package Level 1 Height:
- 60 mm
- Package Level 1 Depth / Length:
- 110 mm
- Package Level 1 Gross Weight:
- 0.1 kg
- Package Level 1 EAN:
- 3471523130685
Additional Information
- Connecting Capacity Control Circuit:
- Flexible with Ferrule 1/2x 0.75 ... 2.5 m²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 m²
Rigid 1/2x 1 ... 2.5 m²
- Degree of Protection:
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
- Medium Description:
- LDC4S Additional Coil Terminal Block for a top and/or bottom access to the coil terminals of contactors or contactor relays. The letter S means that the auxiliary contact block is equipped with IP20 spring type connecting terminals.
- Order Multiple:
- 10 piece
- Product Main Type:
- Accessories for Block Contactors
- Product Name:
- Additional Coil Terminal Block
- Rated Insulation Voltage (Ui):
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Suitable For:
- AF09
AF12
AF16
AF26
AF30
AF38
AF40
AF52
AF65
AF80
AF96
NF
- Terminal Type:
- Spring Terminals
- Wire Stripping Length:
- Control Circuit 10 mm
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- NoDecNee
- Environmental Information:
- 1SBD250181E1000
- Instructions and Manuals:
- 1SBC101032M6801
- RINA Certificate:
- RINA_ELE084013XG
- UL Certificate:
- UL_20140305-E312527_7_1
- UL Listing Card:
- UL_E312527
Classifications
- ETIM 4:
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5:
- EC002498 - Accessories for low-voltage switch technology
- ETIM 6:
- EC002498 - Accessories for low-voltage switch technology
- ETIM 7:
- EC002498 - Accessories for low-voltage switch technology
- UNSPSC:
- 39120000
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
