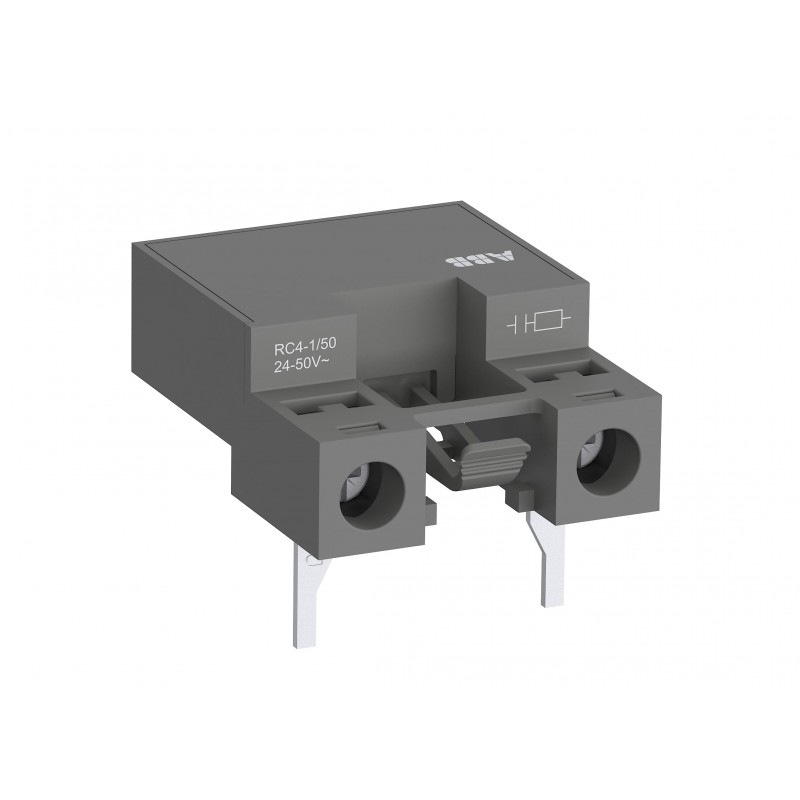

1SBN050400R1000 ABB RC4-1/50 24-50V AC Relay Contactor
1SBN050400R1000
ABB
2
RC4-1/50 24-50V AC Relay Contactor
RC4-1/50 Surge Suppressor
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85363030 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 36 mm |
| Product Net Depth / Length | 44 mm |
| Product Net Height | 32 mm |
| Product Net Weight | 0.015 kg |
| Technical | |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Control Circuit Voltage (Uc) | 50 Hz / 60 Hz 24 ... 50 V AC |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AFC09 |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| NFC44E | |
| NFC53E | |
| NFC62E | |
| NFC71E | |
| NFC80E | |
| NFC33/11 | |
| NFC51/11 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Surge Suppressor |
| Technical UL/CSA | |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rigid Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +70 °C |
| Storage -40 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250030U1000 |
| Declaration of Conformity - UKCA | 1SBD250048U1000 |
| UL Certificate | UL_20200903-E312527_1_4 |
| Container Information | |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 66 mm |
| Package Level 1 Depth / Length | 42 mm |
| Package Level 1 Height | 92 mm |
| Package Level 1 Gross Weight | 0.035 kg |
| Package Level 1 EAN | 3471523013698 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121610 |
