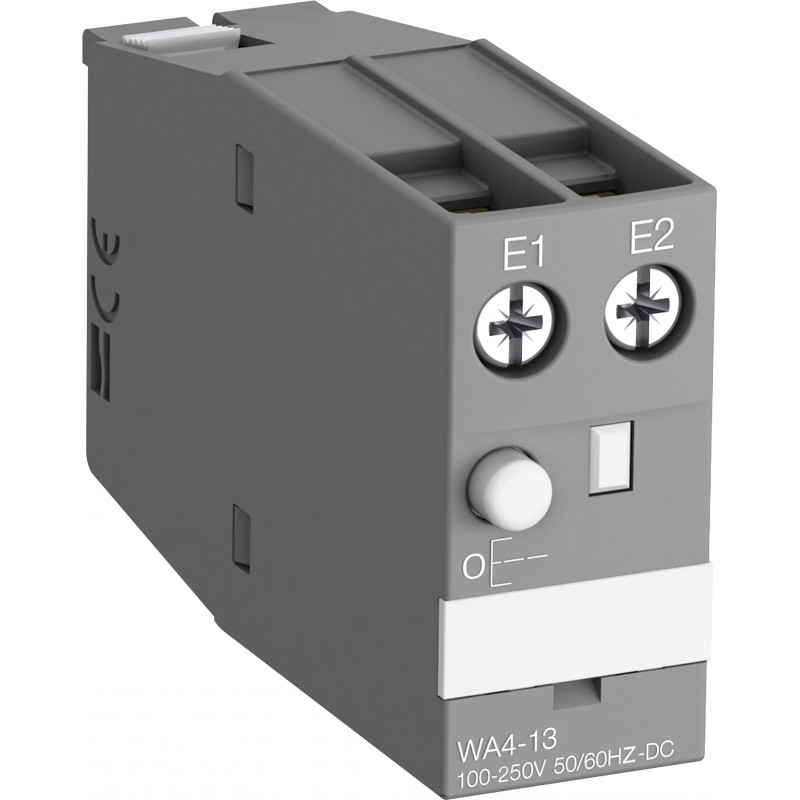

1SBN040100R1013 ABB WA4-13 Mec. Retention Cont. AF09-AF65
1SBN040100R1013
ABB
WA4-13 Mec. Retention Cont. AF09-AF65
WA4-13 Retention mec. Cont. FY09-AF65
WA4-13 100-250V50/60HZ-DC Mechanical Latching Unit
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101046M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 19.8 mm |
| Product Net Depth / Length | 67.4 mm |
| Product Net Height | 41 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1-14 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| 60 Hz 100 ... 250 V | |
| DC Operation 100 ... 250 V | |
| Coil Consumption | Pull-in DC (Umin / Umax) 15 ... 100 W |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| Product Name | Mechanical Latching Unit |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| Environmental | |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_HU-002678-A1 |
| CCC Certificate | CCC_2024010305656856 |
| Declaration of Conformity - CCC | 2020980303000186 |
| Declaration of Conformity - CE | 1SBD250020U1000 |
| Declaration of Conformity - UKCA | 1SBD250042U1000 |
| UL Certificate | UL_20181026-E312527_7_2 |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 72 mm |
| Package Level 1 Depth / Length | 25 mm |
| Package Level 1 Height | 44 mm |
| Package Level 1 Gross Weight | 0.08 kg |
| Package Level 1 EAN | 3471523131088 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3709747 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Mechanical locking |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
