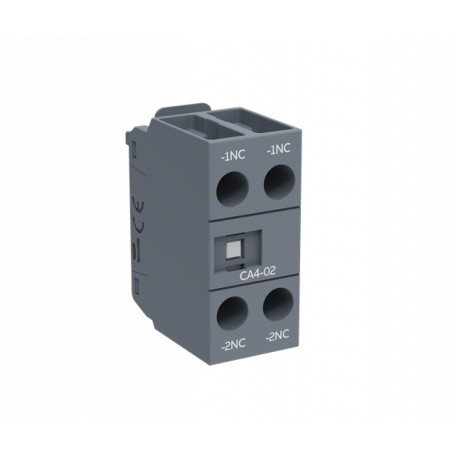

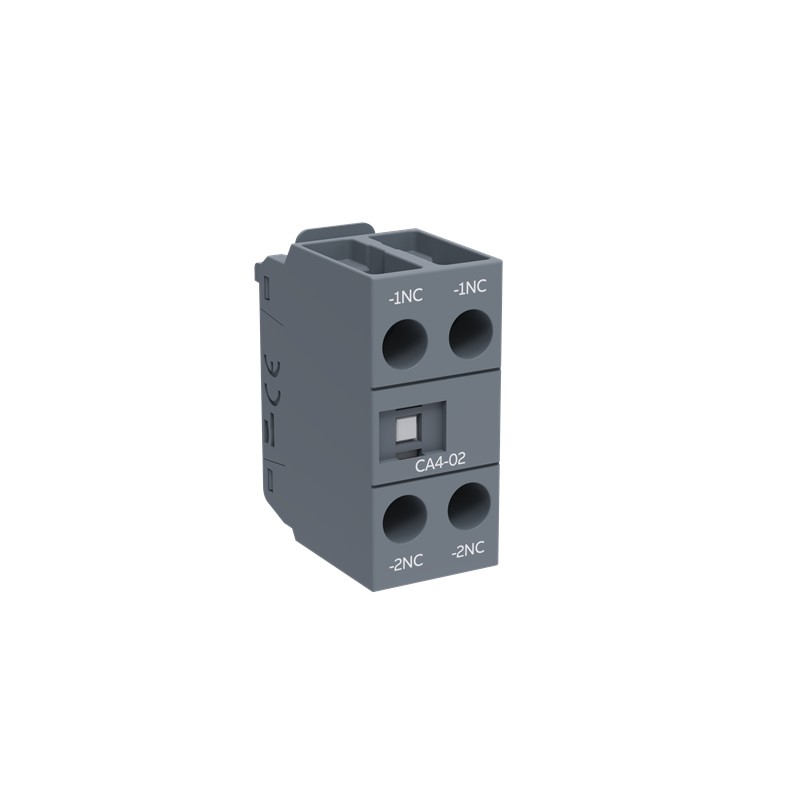

ABB 1SBN010110R1002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SBN010110R1002 ABB CA4-02 CONTACT AUX. FRONTAL

Code: 1SBN010110R1002

Manufacturer: ABB

Description:

CA4-02 CONTACT AUX. FRONTAL
CA4-02 Auxiliary Contact Block

Categories:

  • Low-voltage industrial components > Auxiliary contact block
  • ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 7,91 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Instructions and Manuals (Part 2)1SAC200017M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width43 mm
Product Net Depth / Length19.9 mm
Product Net Height23.6 mm
Product Net Weight0.024 kg
Technical
Number of Auxiliary Contacts NO0
Number of Auxiliary Contacts NC2
Number of Poles2P
StandardsIEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Rated Operational VoltageAuxiliary Circuit 690 V
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.27 A / 60 W
(250 V) 0.27 A / 68 W
(400 V) 0.15 A / 60 W
(500 V) 0.13 A / 65 W
(600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 140 A
for 1 s 100 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Maximum Electrical Switching Frequency(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency3600 cycles per hour
Power Lossat 6 A per Pole 0.1 W
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Rigid 1/2x 1 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping LengthAuxiliary Circuit 10 mm
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening TorqueAuxiliary Circuit 1.2 N·m
Terminal TypeScrew Terminals
Suitable ForAF09
AF09Z
AF12
AF12Z
AF16
AF16Z
AF26
AF26Z
AF30
AF30Z
AF38
AF38Z
AF40
AF52
AF65
AF80
AF96
AFC09
AFC12
AFC16
AFC26
AFC30
AFC38
AFC40
AFC52
AFC65
AFC80
AFC96
NF22E
NFZ22E
NF31E
NFZ31E
NF40E
NFZ40E
NFC22E
NFC31E
NFC40E
NFZB22E
NFB22E
NFZB31E
NFB31E
NFZB40E
NFB40E
Product NameAuxiliary Contact Block
Technical UL/CSA
Connecting Capacity Auxiliary Circuit UL/CSARigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSAAuxiliary Circuit 11 in·lb
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV CertificateBV_2634H24900C1
CB CertificateFR-719194
CCC CertificateCCC_2024010305656311
Declaration of Conformity - CCCCQC2019010304264779
Declaration of Conformity - CE1SBD250007U1000
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width110 mm
Package Level 1 Depth / Length110 mm
Package Level 1 Height30 mm
Package Level 1 Gross Weight0.026 kg
Package Level 1 EAN3471523024670
Package Level 2 Unitsbox 50 piece
Package Level 2 Gross Weight1.4 kg
External Classifications and Standards
Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121500
E-Number (Sweden)3210694

ETIM for 1SBN010110R1002 Low-voltage industrial controls and switchgear (EC000041)

Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value2
Feature nameNumber of fault-signal switches (EF007613)
Feature value0
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value4 A
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueClip-on
Feature nameMounting method (EF000003)
Feature valueFront fastening
Feature nameLamp holder (EF000048)
Feature valueNone
