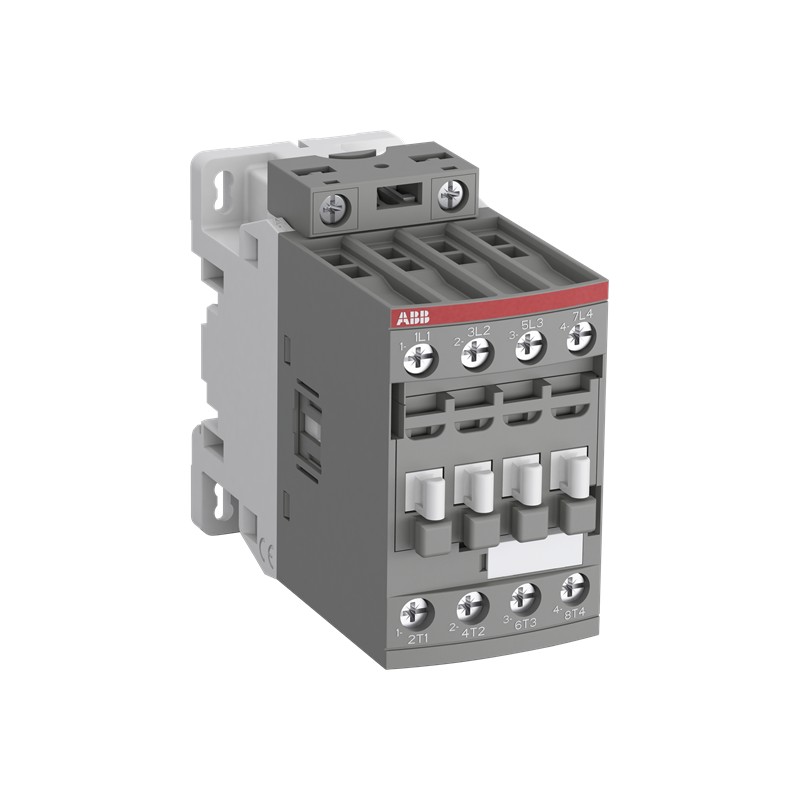

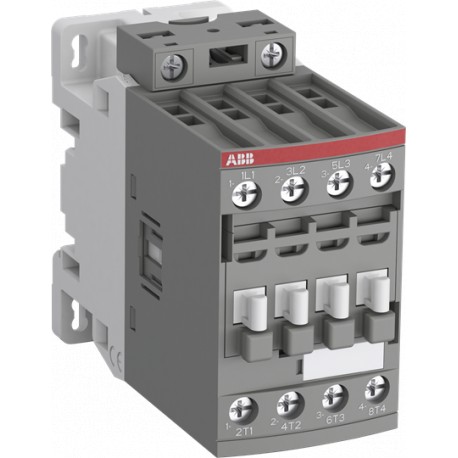

1SBL231201R8400 ABB AFC26-40-00-84 Contactor

Reference: 1SBL231201R8400

Manufacturer: ABB

Description:

AFC26-40-00-84 Contactor

AFC26-40-00-84 110V50Hz 110-120V60Hz Contactor

Categories:

Low-voltage industrial components > Power contactor, AC switching
ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 66,99 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Popular Downloads
Data Sheet, Technical Information	1SBC100219C0201
Instructions and Manuals	1SBC101027M6801
Instructions and Manuals (Part 2)	1SAC200017M0002
CAD Dimensional Drawing	2CDC001079B0201
Dimensions
Product Net Width	45 mm
Product Net Depth / Length	101 mm
Product Net Height	86 mm
Product Net Weight	0.399 kg
Technical
Number of Main Contacts NO	4
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	4P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1
Rated Operational Voltage	Main Circuit 690 V
Rated Frequency (f)	Control Circuit 50 / 60 Hz
	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I_th)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 55 A
Rated Operational Current AC-1 (I_e)	(690 V) 40 °C 45 A
	(690 V) 60 °C 40 A
	(690 V) 70 °C 32 A
Rated Operational Current AC-3 (I_e)	(415 V) 60 °C 21.2 A
	(440 V) 60 °C 20 A
	(500 V) 60 °C 17.6 A
	(690 V) 60 °C 10.5 A
	(380 / 400 V) 60 °C 22 A
	(220 / 230 / 240 V) 60 °C 23.2 A
Rated Operational Current DC-1 (I_e)	(110 V) 2 Poles in Series, 40 °C 45 A
	(110 V) 2 Poles in Series, 60 °C 40 A
	(110 V) 2 Poles in Series, 70 °C 32 A
	(110 V) 3 Poles in Series, 40 °C 45 A
	(110 V) 3 Poles in Series, 60 °C 40 A
	(110 V) 3 Poles in Series, 70 °C 32 A
	(110 V) 4 Poles in Series, 40 °C 45 A
	(110 V) 4 Poles in Series, 60 °C 40 A
	(110 V) 4 Poles in Series, 70 °C 32 A
	(220 V) 3 Poles in Series, 40 °C 45 A
	(220 V) 3 Poles in Series, 60 °C 40 A
	(220 V) 3 Poles in Series, 70 °C 32 A
	(220 V) 4 Poles in Series, 40 °C 45 A
	(220 V) 4 Poles in Series, 60 °C 40 A
	(220 V) 4 Poles in Series, 70 °C 32 A
	(72 V) 1-Pole, 40 °C 45 A
	(72 V) 1-Pole, 60 °C 40 A
	(72 V) 1-Pole, 70 °C 32 A
	(72 V) 2 Poles in Series, 40 °C 45 A
	(72 V) 2 Poles in Series, 60 °C 40 A
	(72 V) 2 Poles in Series, 70 °C 32 A
	(72 V) 3 Poles in Series, 40 °C 45 A
	(72 V) 3 Poles in Series, 60 °C 40 A
	(72 V) 3 Poles in Series, 70 °C 32 A
	(72 V) 4 Poles in Series, 40 °C 45 A
	(72 V) 4 Poles in Series, 60 °C 40 A
	(72 V) 4 Poles in Series, 70 °C 32 A
Rated Operational Power AC-3 (P_e)	(400 V) 11 kW
	(415 V) 11 kW
	(440 V) 11 kW
	(500 V) 11 kW
	(690 V) 9 kW
	(220 / 230 / 240 V) 5.5 kW
Rated Short-time Withstand Current Low Voltage (I_cw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 300 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 55 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 450 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Rated Insulation Voltage (U_i)	acc. to IEC 60947-4-1 690 V
	acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U_imp)	6 kV
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour
	(AC-15) 0 cycles per hour
	(AC-2 / AC-4) 0 cycles per hour
	(AC-3) 0 cycles per hour
	(DC-13) 0 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U_c)	50 Hz 110 V
	60 Hz 110 ... 120 V
Coil Consumption	Average Holding Value 50 / 60 Hz 8 V·A
	Average Pull-in Value 50 Hz 70 V·A
	Average Pull-in Value 60 Hz 66 V·A
Power Loss	at Rated Operating Conditions AC-1 per Pole 1.6 W
	at Rated Operating Conditions AC-3 per Pole 0.42 W
Operate Time	Between Coil De-energization and NC Contact Closing 9 ... 20 ms
	Between Coil De-energization and NO Contact Opening 4 ... 18 ms
	Between Coil Energization and NC Contact Opening 7 ... 21 ms
	Between Coil Energization and NO Contact Closing 10 ... 26 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 1.5 ... 16 mm²
	Flexible with Insulated Ferrule 1/2x 1.5 ... 16 mm²
	Rigid Solid 1/2x 1.5 ... 4 mm²
	Rigid Stranded 1/2x 1.5 ... 16 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
	Rigid Solid 1/2x 1 ... 2.5 mm²
	Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length	Control Circuit 10 mm
	Main Circuit 12 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
	acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque	Control Circuit 1.2 N·m
	Main Circuit 2.5 N·m
Terminal Type	Screw Terminals
Product Name	Block Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 45 A
Connecting Capacity Main Circuit UL/CSA	Rigid Solid 1/2x 16-10 AWG
	Rigid Stranded 1/2x 16-6 AWG
Connecting Capacity Control Circuit UL/CSA	Rigid Solid 1/2x 18-14 AWG
	Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA	Control Circuit 11 in·lb
	Main Circuit 22 in·lb
Environmental
Ambient Air Temperature	Close to Contactor for Storage -60 ... +80 °C
	Near Contactor for Operation in Free Air -40 ... 70 °C
	Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +60 °C
	Near Contactor for Operation in Free Air (Uc) -40 ... 70 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Closed, Shock Direction: B1 25 g
	Open, Shock Direction: B1 5 g
	Shock Direction: A 30 g
	Shock Direction: B2 15 g
	Shock Direction: C1 25 g
	Shock Direction: C2 25 g
Resistance to Vibrations	4g Closed Position & 2g Open position 5 ... 300 Hz
Pollution Degree	3
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	2CMT2021-006202
RoHS Declaration	2CMT2021-006277
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	2CMT2023-006525
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate	BV_2634H24898C0
CB Certificate	CB_SE-116363
CCS Certificate	GZ23PTB00147
CQC Certificate	CQC2010010304445623
Declaration of Conformity - CCC	2020980304001254
Declaration of Conformity - CE	1SBD250025U1000
Declaration of Conformity - UKCA	1SBD250046U1000
DNV Certificate	9AKK108470A6934
RINA Certificate	9AKK108470A5006
UL Certificate	UL-US-2343502-0
	UL-CA-2337663-0
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	87 mm
Package Level 1 Depth / Length	103 mm
Package Level 1 Height	47 mm
Package Level 1 Gross Weight	0.42 kg
Package Level 1 EAN	3471523014862
External Classifications and Standards
Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors

ETIM for 1SBL231201R8400 Low-voltage industrial controls and switchgear (EC000066)

Feature nameRated control supply voltage AC 50 Hz (EF003978)

Feature value110 V

Feature nameRated control supply voltage AC 60 Hz (EF003979)

Feature value110 V

Feature nameVoltage type for actuating (EF008242)

Feature valueAC

Feature nameRated operation current Ie at AC-1, 400 V (EF001393)

Feature value45 A

Feature nameRated operation current Ie at AC-3, 400 V (EF001392)

Feature value22 A

Feature nameRated operation power at AC-3, 400 V (EF001364)

Feature value11 kW

Feature nameModular version (EF001126)

Feature valueNo

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameNumber of normally closed contacts as main contact (EF001375)

Feature value0

Feature nameNumber of normally open contacts as main contact (EF001374)

Feature value4
