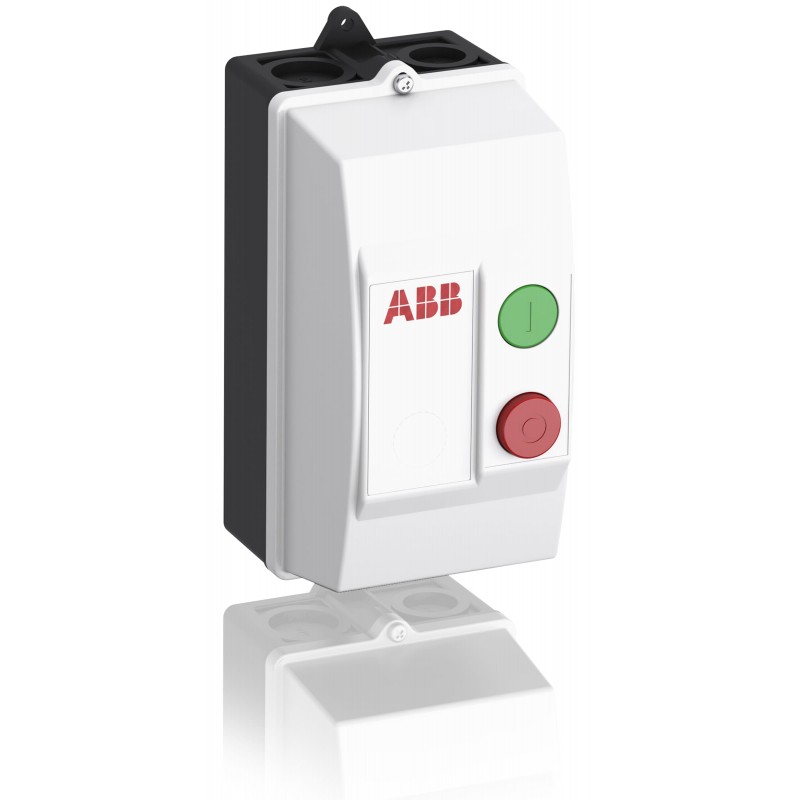

1SBK134238R1300 ABB DRAF09-13U STARTS IN BOX 100-250VAC/DC
1SBK134238R1300
ABB
DRAF09-13U STARTS IN BOX 100-250VAC/DC
DRAF09-13U 100-250V50/60HZ Contactor Starter
Low-voltage industrial components > Enclosure for control circuit devices
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Main Type | DRAF09 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101048M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 107 mm |
| Product Net Depth / Length | 131 mm |
| Product Net Height | 230 mm |
| Product Net Weight | 0.82 kg |
| Technical | |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 100 V·A |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 4 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | |
| Rigid Solid 1/2x 1 ... 4 mm² | |
| Rigid Stranded 1/2x 1 ... 6 mm² | |
| Housing Material | ABS |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| 60 Hz 100 ... 250 V | |
| DC Operation 100 ... 250 V | |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Control Circuit 50 / 60 Hz | |
| Main Circuit 50 / 60 Hz | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V |
| acc. to IEC 60947-5-1 690 V | |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 A |
| (690 V) 60 °C 25 A | |
| (690 V) 70 °C 22 A | |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 9 A |
| (440 V) 60 °C 9 A | |
| (500 V) 60 °C 9.5 A | |
| (690 V) 60 °C 7 A | |
| (380 / 400 V) 60 °C 9 A | |
| (220 / 230 / 240 V) 60 °C 9 A | |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 9 A |
| (440 V) 60 °C 9 A | |
| (500 V) 60 °C 9.5 A | |
| (690 V) 60 °C 7 A | |
| (380 / 400 V) 60 °C 9 A | |
| (220 / 230 / 240 V) 60 °C 9 A | |
| Rated Operational Power AC-3 (Pe) | (415 V) 4 kW |
| (440 V) 4 kW | |
| (500 V) 5.5 kW | |
| (690 V) 5.5 kW | |
| (380 / 400 V) 4 kW | |
| (220 / 230 / 240 V) 2.2 kW | |
| Rated Operational Power AC-3e (Pe) | (415 V) 4 kW |
| (440 V) 4 kW | |
| (500 V) 5.5 kW | |
| (690 V) 5.5 kW | |
| (380 / 400 V) 4 kW | |
| (220 / 230 / 240 V) 2.2 kW | |
| Terminal Type | Screw Terminals |
| Technical UL/CSA | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rigid Stranded 1/2x 18-14 AWG | |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rigid Stranded 1/2x 18-14 AWG | |
| Connecting Capacity Main Circuit UL/CSA | Rigid Solid 1/2x 16-10 AWG |
| Rigid Stranded 1/2x 16-10 AWG | |
| Horsepower Rating NEMA | (115 V AC) Single Phase 1/3 Hp |
| (200 V AC) Three Phase 1-1/2 Hp | |
| (230 V AC) Single Phase 1 Hp | |
| (230 V AC) Three Phase 1-1/2 Hp | |
| (460 V AC) Three Phase 2 Hp | |
| (575 V AC) Three Phase 2 Hp | |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 0.75 Hp |
| (200 ... 208 V AC) Three Phase 2 Hp | |
| (220 ... 240 V AC) Three Phase 2 Hp | |
| (240 V AC) Single Phase 1.5 Hp | |
| (440 ... 480 V AC) Three Phase 5 Hp | |
| (550 ... 600 V AC) Three Phase 7.5 Hp | |
| Pilot Duty UL/CSA | A600 |
| Q600 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250009U1000 |
| Declaration of Conformity - UKCA | 1SBD250040U1000 |
| UL Certificate | UL_20150729-E312527-16-1 |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 243 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 143 mm |
| Package Level 1 Gross Weight | 0.82 kg |
| Package Level 1 EAN | 3471522145130 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371205 |
| E-Number (Finland) | 3709765 |
| ETIM 6 | EC000200 - Enclosure for control circuit devices |
| ETIM 7 | EC000200 - Enclosure for control circuit devices |
| ETIM 8 | EC000200 - Enclosure for control circuit devices |
| ETIM 9 | EC000200 - Enclosure for control circuit devices |
| IDEA Granular Category Code (IGCC) | 4727 >> Motor starter controls |
| UNSPSC | 39121521 |
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 2 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Acrylonitrile butadiene styrene (ABS) |
| Diameter openings (EF000243) | 20 mm |
| Colour housing cover (EF001373) | Other |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 107 mm |
| Height (EF000040) | 230 mm |
| Depth (EF000049) | 131 mm |
