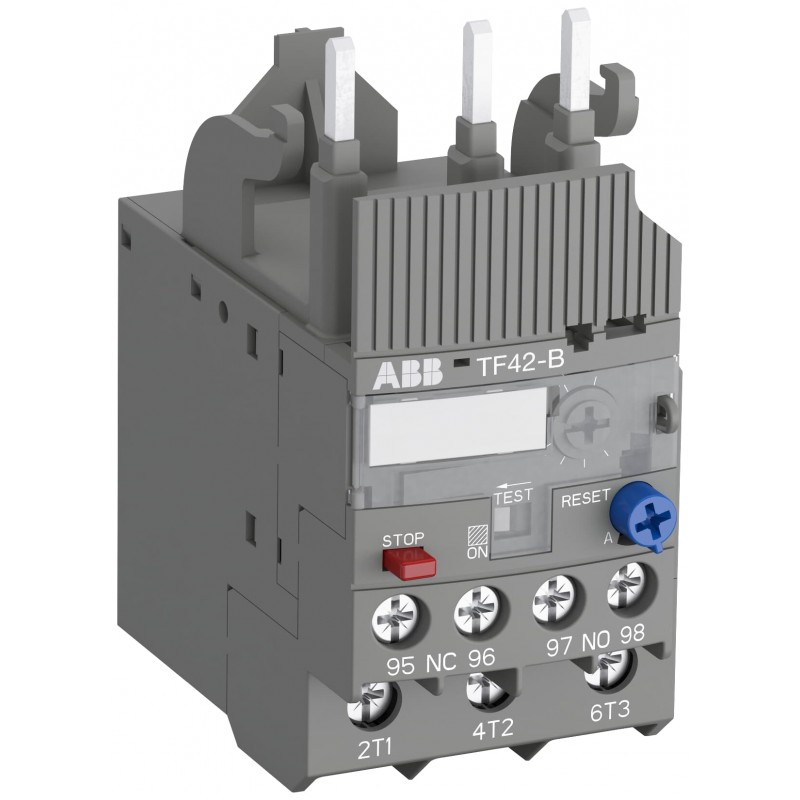

1SAZ741201R1035 ABB TF42-4.2B Thermal Relay Overload
1SAZ741201R1035
ABB
TF42-4.2B Thermal Relay Overload
TF42-4.2B Thermal Overload Relay 3.1 ... 4.2 A
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC106023D0201 |
| Instructions and Manuals | 2CDC106022M6802 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Time-Current Characteristic Curve | 1SAZ700506F0013 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 88.3 mm |
| Product Net Depth / Length | 70.5 mm |
| Product Net Weight | 0.13 kg |
| Technical | |
| Setting Range | 3.1 ... 4.2 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC |
| Main Circuit 690 V AC | |
| Rated Operational Current (Ie) | 4.2 A |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A |
| Auxiliary Circuit NO 4 A | |
| Main Circuit 0 A | |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| (120 V) NO 0.75 A | |
| (240 V) NC 3 A | |
| (240 V) NO 0.75 A | |
| (400 V) NC 0.75 A | |
| (400 V) NO 0.75 A | |
| (500 V) NC 0.75 A | |
| (500 V) NO 0.75 A | |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A |
| (125 V) NO 0.55 A | |
| (24 V) NC 1.25 A | |
| (24 V) NO 1.25 A | |
| (250 V) NC 0.27 A | |
| (250 V) NO 0.27 A | |
| (500 V) NC 0.15 A | |
| (500 V) NO 0.15 A | |
| (60 V) NC 0.55 A | |
| (60 V) NO 0.55 A | |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Flexible 1/2x 0.75 ... 1 mm² | |
| Flexible 1/2x 1 ... 2.5 mm² | |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 4 mm² |
| Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm² | |
| Flexible 1/2x 0.75 ... 4 mm² | |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Tightening Torque | Auxiliary Circuit 1 ... 1.2 N·m |
| Main Circuit 2.5 ... 2.7 N·m | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Main Circuit 12 mm | |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Power Loss | at Rated Operating Conditions per Pole 1.1 ... 2.0 W |
| Suitable For | AF09ZB |
| AF09B | |
| AF12ZB | |
| AF12B | |
| AF16ZB | |
| AF16B | |
| AF26ZB | |
| AF26B | |
| AF30ZB | |
| AF30B | |
| AF38ZB | |
| AF38B | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| IEC 60335-2-40 A2L | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600 |
| (NC:) Q600 | |
| (NO:) Q600 | |
| (NO:) D300 | |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 18-10 AWG |
| Stranded 1/2x 18-10 AWG | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-12 AWG |
| Stranded 1/2x 18-12 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 ... 11 in·lb |
| Main Circuit 13 ... 22 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Operation Compensated -25 ... +60 °C | |
| Storage -50 ... +80 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| End Of Life Disassembling Instructions | 1SAC200429H0001 |
| Environmental Information | 1SAC200057H0009 |
| Environmental Product Declaration - EPD | 1SAC200373H0001 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SAA941000-4601 |
| CCC Certificate | 2024010304658956 |
| CQC Certificate | CQC2011010309464423 |
| Declaration of Conformity - CCC | 2020980304001788 |
| Declaration of Conformity - CE | 1SAD101100-3505 |
| Declaration of Conformity - UKCA | 1SAD201100-3505 |
| UL Certificate | E48139-20090126 |
| Container Information | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Height | 92 mm |
| Package Level 1 Depth / Length | 78 mm |
| Package Level 1 Gross Weight | 0.145 kg |
| Package Level 1 EAN | 4013614517136 |
| Package Level 2 Units | carton 48 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Gross Weight | 7.346 kg |
| Package Level 2 EAN | 4013614517518 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000106 - Thermal overload relay |
| ETIM 10 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 |
| UNSPSC | 39121520 |
| IDEA Granular Category Code (IGCC) | 5364 >> Overload relay |
