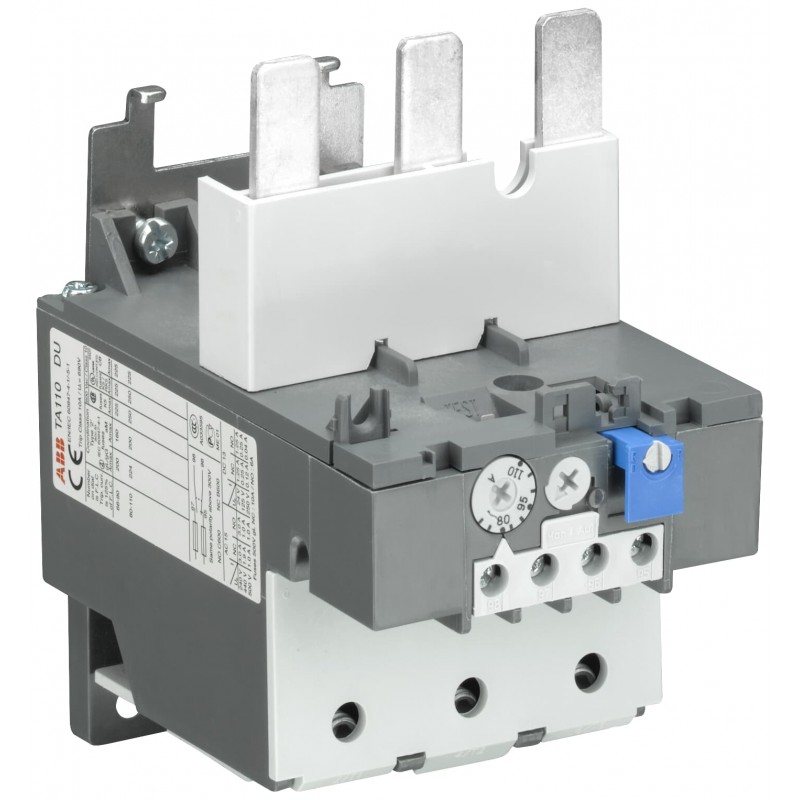

1SAZ411201R1002 ABB TA110DU-110 Thermal Overload Relay
1SAZ411201R1002
ABB
TA110DU-110 Thermal Overload Relay
TA110DU-110 Thermal Overload Relay 80 ... 110 A
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Instructions and Manuals | 2CDC106027M6802 |
| Time-Current Characteristic Curve | 1SAZ400501F0002 |
| Dimension Diagram | 1SAZ400403F0001 |
| Dimensions | |
| Product Net Width | 80 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.755 kg |
| Technical | |
| Setting Range | 80 ... 110 A |
| Rated Operational Voltage | Auxiliary Circuit 440 V DC |
| Auxiliary Circuit 500 V AC | |
| Main Circuit 690 V AC | |
| Main Circuit 440 V DC | |
| Rated Operational Current (Ie) | 110 A |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Main Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A |
| Auxiliary Circuit NO 5 A | |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| (120 V) NO 1.5 A | |
| (240 V) NC 3 A | |
| (240 V) NO 1.2 A | |
| (400 V) NC 0.75 A | |
| (400 V) NO 0.37 A | |
| (440 V) NC 0.75 A | |
| (440 V) NO 0.37 A | |
| (500 V) NC 0.3 A | |
| (500 V) NO 0.25 A | |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A |
| (125 V) NO 0.25 A | |
| (24 V) NC 1.25 A | |
| (24 V) NO 1.25 A | |
| (250 V) NC 0.12 A | |
| (250 V) NO 0.04 A | |
| (60 V) NC 0.25 A | |
| (60 V) NO 0.25 A | |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP10 | |
| Pollution Degree | 3 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Connecting Capacity Main Circuit | Flexible 1x 16 ... 35 mm² |
| Rigid 1x 16 ... 35 mm² | |
| Tightening Torque | Auxiliary Circuit 1 ... 1.3 N·m |
| Main Circuit 7.2 ... 9.6 N·m | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Main Circuit 25 mm | |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Main Circuit Hexagon 4 | |
| Power Loss | at Rated Operating Conditions per Pole 2.5 ... 4.7 W |
| Suitable For | A95 |
| A110 | |
| AE95 | |
| AE110 | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600 |
| (NO:) C600 | |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 6-2/0 AWG |
| Stranded 1/2x 6-2/0 AWG | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWG |
| Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Operation Compensated -25 ... +55 °C | |
| Storage -40 ... +70 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 12g |
| 25g 2 shocks 13 ms | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| RoHS Declaration | 1SAD938518-0043 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | 1SAA941000-0102 |
| BV Certificate | 1SAA941000-0201 |
| CB Certificate | 1SAA941004-2003 |
| CCC Certificate | 2024010304659820 |
| CQC Certificate | CQC2016010309922936 |
| Declaration of Conformity - CCC | 2020980304001321 |
| Declaration of Conformity - CE | 1SAD101100-3509 |
| Declaration of Conformity - UKCA | 1SAD201100-3509 |
| DNV Certificate | 1SAA941000-0304 |
| DNV GL Certificate | 1SAA941000-0304 |
| EAC Certificate | 1SAA941002-2702 |
| GL Certificate | 1SAA941000-0304 |
| LR Certificate | 1SAA941000-0504 |
| RMRS Certificate | 1SAA941000-0704 |
| UL Certificate | E48139-19960919 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 165 mm |
| Package Level 1 Height | 133 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 0.88 kg |
| Package Level 1 EAN | 4013614216800 |
| Package Level 2 Units | carton 4 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Gross Weight | 8.786 kg |
| Package Level 2 EAN | 4013614494208 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000106 - Thermal overload relay |
| ETIM 10 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 |
| UNSPSC | 39122330 |
| IDEA Granular Category Code (IGCC) | 5366 >> Thermal overload relay |
| E-Number (Finland) | 3709356 |
