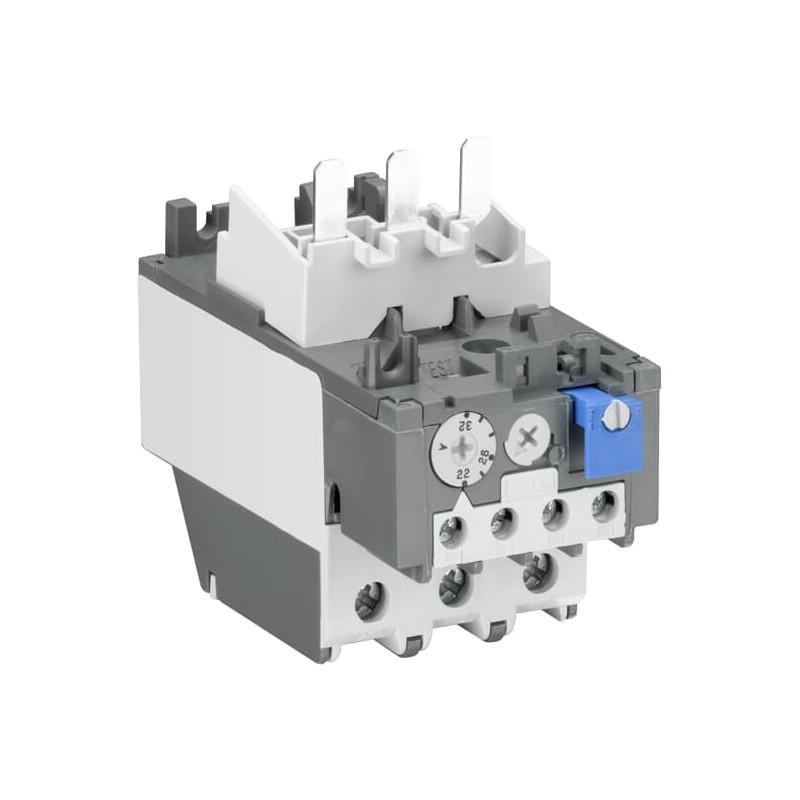

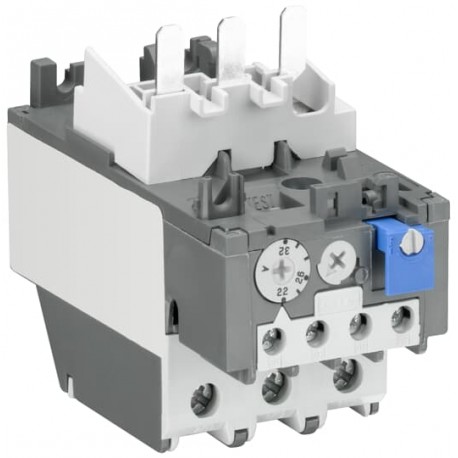

1SAZ311201R2002 ABB TA42DU-32M Overload Relay

Reference: 1SAZ311201R2002

Manufacturer: ABB

Description:

TA42DU-32M Overload Relay

TA42DU-32M Thermal Overload Relay

Categories:

Low-voltage industrial components > Thermal overload relay
ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 164,88 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Popular Downloads
Instructions and Manuals	2CDC106049M6802
Time-Current Characteristic Curve	1SAZ300501F0002
CAD Dimensional Drawing	2CDC001079B0201
Dimensions
Product Net Width	54 mm
Product Net Height	90 mm
Product Net Depth / Length	111 mm
Product Net Weight	0.335 kg
Technical
Rated Operational Voltage	Main Circuit 690 V AC
	Main Circuit 440 V DC
Rated Operational Current (I_e)	32 A
Number of Poles	3P
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	1
Number of Protected Poles	3
Conventional Free-air Thermal Current (I_th)	Auxiliary Circuit NC 10 A
	Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (I_e)	(120 V) NC 3 A
	(120 V) NO 1.5 A
	(240 V) NC 3 A
	(240 V) NO 1.2 A
	(400 V) NC 0.75 A
	(400 V) NO 0.37 A
	(440 V) NC 0.75 A
	(440 V) NO 0.37 A
	(500 V) NC 0.3 A
	(500 V) NO 0.25 A
Degree of Protection	Housing IP20
	Main Circuit Terminals IP20
Connecting Capacity Auxiliary Circuit	Flexible 1/2x 0.75 ... 2.5 mm²
	Rigid 1/2x 0.75 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
	Main Circuit 14 mm
Recommended Screw Driver	Auxiliary Circuit Pozidriv 1
	Main Circuit Pozidriv 2
Power Loss	at Rated Operating Conditions per Pole 1.4 ... 3.0 W
Suitable For	AX32
	AX40
Standards	CSA 22.2 No. 14
	IEC/EN 60947-1
	IEC/EN 60947-4-1
	IEC/EN 60947-5-1
	UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
Contact Rating UL/CSA	(NC:) B600
	(NO:) C600
Connecting Capacity Main Circuit UL/CSA	Flexible 1/2x 8-1 AWG
	Stranded 1/2x 8-1 AWG
Tightening Torque UL/CSA	Auxiliary Circuit 12 in·lb
	Main Circuit 40 in·lb
Environmental
Ambient Air Temperature	Operation -25 ... +55 °C
	Operation Compensated -25 ... +55 °C
	Storage -40 ... +70 °C
Resistance to Shock acc. to IEC 60068-2-27	25g 2 shocks 13 ms
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	2CMT2023-006525
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	2CMT2021-006202
RoHS Declaration	2CMT2021-006277
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB Certificate	1SAA941019-2001
CCC Certificate	2024010304659817
CCS Certificate	1SAA941000-0901
CQC Certificate	CQC2016010309922937
Declaration of Conformity - CCC	2020980304001322
Declaration of Conformity - CE	1SAD101100-3501
EAC Certificate	1SAA941002-2701
RMRS Certificate	1SAA941000-0704
UL Certificate	E48139-19970506
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	92 mm
Package Level 1 Height	109 mm
Package Level 1 Depth / Length	61 mm
Package Level 1 Gross Weight	0.36 kg
Package Level 1 EAN	4013614482601
Package Level 2 Units	25 piece
Package Level 2 Width	230 mm
Package Level 2 Height	310 mm
Package Level 2 Depth / Length	380 mm
Package Level 2 Gross Weight	8.786 kg
External Classifications and Standards
ETIM 9	EC000106 - Thermal overload relay
ETIM 10	EC000106 - Thermal overload relay
eClass	V11.0 : 27371501
UNSPSC	39121520
IDEA Granular Category Code (IGCC)	5364 >> Overload relay
E-Number (Finland)	3707418
