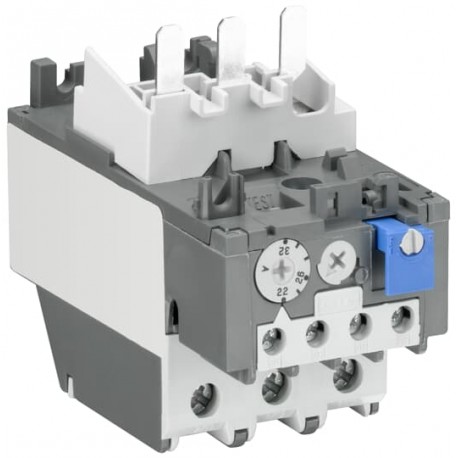

1SAZ311201R2001 ABB TA42DU-25M Overload Relay
1SAZ311201R2001
ABB
TA42DU-25M Overload Relay
TA42DU-25M Thermal Overload Relay
Low-voltage industrial components > Thermal overload relay
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Instructions and Manuals | 2CDC106049M6802 |
| Time-Current Characteristic Curve | 1SAZ300501F0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 111 mm |
| Product Net Weight | 0.335 kg |
| Technical | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Main Circuit 440 V DC | |
| Rated Operational Current (Ie) | 25 A |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 10 A |
| Auxiliary Circuit NO 6 A | |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| (120 V) NO 1.5 A | |
| (240 V) NC 3 A | |
| (240 V) NO 1.2 A | |
| (400 V) NC 0.75 A | |
| (400 V) NO 0.37 A | |
| (440 V) NC 0.75 A | |
| (440 V) NO 0.37 A | |
| (500 V) NC 0.3 A | |
| (500 V) NO 0.25 A | |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP20 | |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Main Circuit 14 mm | |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 1 |
| Main Circuit Pozidriv 2 | |
| Power Loss | at Rated Operating Conditions per Pole 1.8 ... 3.4 W |
| Suitable For | AX32 |
| AX40 | |
| Standards | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600 |
| (NO:) C600 | |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 8-1 AWG |
| Stranded 1/2x 8-1 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb |
| Main Circuit 40 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Operation Compensated -25 ... +55 °C | |
| Storage -40 ... +70 °C | |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | 1SAA941019-2001 |
| CCC Certificate | 2024010304659817 |
| CCS Certificate | 1SAA941000-0901 |
| CQC Certificate | CQC2016010309922937 |
| Declaration of Conformity - CCC | 2020980304001322 |
| Declaration of Conformity - CE | 1SAD101100-3501 |
| EAC Certificate | 1SAA941002-2701 |
| RMRS Certificate | 1SAA941000-0704 |
| UL Certificate | E48139-19970506 |
| Container Information | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Depth / Length | 61 mm |
| Package Level 1 Gross Weight | 0.36 kg |
| Package Level 1 EAN | 4013614482595 |
| Package Level 2 Units | 25 piece |
| Package Level 2 Width | 230 mm |
| Package Level 2 Height | 310 mm |
| Package Level 2 Depth / Length | 380 mm |
| Package Level 2 Gross Weight | 8.786 kg |
| External Classifications and Standards | |
| ETIM 9 | EC000106 - Thermal overload relay |
| ETIM 10 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 |
| UNSPSC | 39121520 |
| IDEA Granular Category Code (IGCC) | 5364 >> Overload relay |
