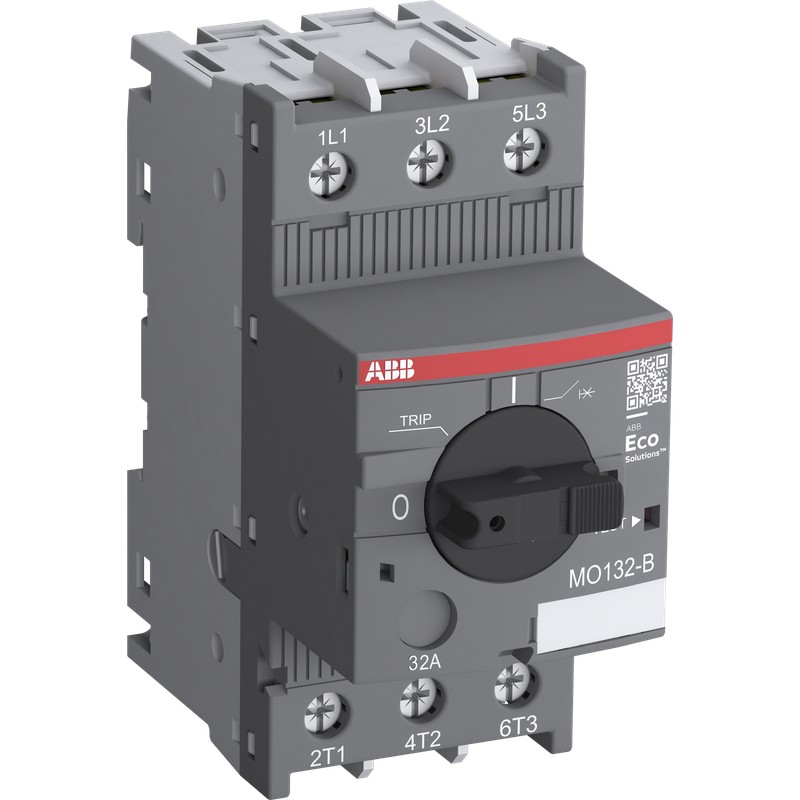

ABB 1SAM360200R1011 1SAM360200R1011 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SAM360200R1011 ABB MO132-16B Magnetic only motor guard

Reference: 1SAM360200R1011

Manufacturer: ABB

Description:

MO132-16B Magnetic only motor guard

MO132-16B Manual Motor Starter Magnetic Only 16 A

Categories:

Low-voltage industrial components > Motor protection circuit-breaker
ABB > Electronic motor protection relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 79,37 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85362010
Popular Downloads
Data Sheet, Technical Information	1SBC100220C0201
Instructions and Manuals	2CDC131034M6801
Instructions and Manuals (Part 2)	2CDC131060M0202
Time-Current Characteristic Curve	1SAM300515F0008
I²t Characteristic	1SAM300507F0001
	1SAM300507F0003
Cut-off Current Characteristic	1SAM300508F0001
	1SAM300508F0003
CAD Dimensional Drawing	2CDC001079B0201
Dimension Diagram	1SAM300402F0002
Dimensions
Product Net Width	45 mm
Product Net Height	97.8 mm
Product Net Depth / Length	86.55 mm
Product Net Weight	0.31 kg
Technical
Rated Service Short-Circuit Breaking Capacity (I_cs)	(230 V AC) 100 kA
	(400 V AC) 100 kA
	(440 V AC) 20 kA
	(500 V AC) 20 kA
	(690 V AC) 3 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(230 V AC) 100 kA
	(400 V AC) 100 kA
	(440 V AC) 20 kA
	(500 V AC) 20 kA
	(690 V AC) 3 kA
Rated Instantaneous Short-Circuit Current Setting (I_i)	200 A
Setting Range	None
Rated Operational Power AC-3 (P_e)	(400 V) Three Phase 7.5 kW
Rated Operational Power AC-3e (P_e)	(400 V) Three Phase 7.5 kW
Rated Operational Voltage	Main Circuit 690 V AC
Rated Operational Current (I_e)	16 A
Rated Operational Current AC-3 (I_e)	16 A
Rated Operational Current AC-3e (I_e)	16 A
Rated Frequency (f)	Main Circuit 50 Hz
	Main Circuit 60 Hz
Operating Frequency (f_sw)	0 ... 400 Hz
Rated Impulse Withstand Voltage (U_imp)	Main Circuit 6 kV
Rated Insulation Voltage (U_i)	690 V
Power Loss	at Rated Operating Conditions per Pole 1.9 W
Number of Poles	3P
Conventional Free-air Thermal Current (I_th)	Main Circuit 16 A
Degree of Protection	Housing IP20
	Main Circuit Terminals IP10
Pollution Degree	3
Electrical Durability	50000 cycle
Mechanical Durability	Nr. Operations 100000 cycle
Terminal Type	Screw Terminals
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 0.75 ... 6 mm²
	Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm²
	Flexible 1/2x 1 ... 2.5 mm²
	Flexible 1/2x 2.5 ... 6 mm²
	Rigid 1/2x 1 ... 2.5 mm²
	Rigid 1/2x 2.5 ... 6 mm²
Tightening Torque	Main Circuit 1.5 N·m
Wire Stripping Length	Main Circuit 10 mm
Recommended Screw Driver	Pozidriv 2
Mounting Position	1 ... 6
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Minimum Mounting Distance	Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
	Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
	Electrical Conductive Board, Vertical 75 mm
	Other Device Same Type, Horizontal 0 mm
	Other Device Same Type, Vertical 150 mm
Actuator Type	Rotary Handle
Contact Position Indication	ON / OFF / TRIP
Standards	IEC 60077-1 (applicable parts)
	IEC 60077-2 (applicable parts)
	IEC/EN 60947-1
	IEC/EN 60947-2
	IEC/EN 60947-4-1
Remarks	For overload protection of the motors, an appropriate thermal or electronic overload relays must be used
Technical UL/CSA
Short-Circuit Current Rating (SCCR)	Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 35 kA
	Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA
	Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA
	Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA
	Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA
	Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
Horsepower Rating UL/CSA	(200 V AC) Three Phase 3 Hp
	(208 V AC) Three Phase 3 Hp
	(220 ... 240 V AC) Three Phase 5 Hp
	(440 ... 480 V AC) Three Phase 10 Hp
	(550 ... 600 V AC) Three Phase 10 Hp
Full Load Amps Motor Use	(200 V AC) Three Phase 11 A
	(208 V AC) Three Phase 10.6 A
	(220 ... 240 V AC) Three Phase 15.2 A
	(440 ... 480 V AC) Three Phase 14 A
	(550 ... 600 V AC) Three Phase 11 A
Locked Rotor Amps	(200 V AC) Three Phase 73.6 A
	(208 V AC) Three Phase 71 A
	(220 ... 240 V AC) Three Phase 92 A
	(440 ... 480 V AC) Three Phase 81 A
	(550 ... 600 V AC) Three Phase 64.8 A
General Use Rating UL/CSA	(600 V AC) 16 A
Connecting Capacity Main Circuit UL/CSA	Flexible 1/2x 16-8 AWG
	Stranded 1/2x 16-8 AWG
Tightening Torque UL/CSA	Main Circuit 18 in·lb
Environmental
Ambient Air Temperature	Around the Enclosure 0 ... +40 °C
	Operation -25 ... +60 °C
	Storage -50 ... +80 °C
Ambient Air Temperature Compensation	No
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 25g
Resistance to Vibrations	5g 3 ... 150 Hz
Shock and Vibration Withstand acc. to IEC 61373	Category 1, Class B
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SAA963005-4502
RoHS Declaration	1SAA963006-4501
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	2CMT2023-006539
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
End Of Life Disassembling Instructions	1SAC200332H0001
Environmental Product Declaration - EPD	1SAC200360H0001
Certificates and Declarations
CB Certificate	1SAA963002-2002
	1SAA963007-2002
CCC Certificate	2024010307654702
	2024010307658958
CQC Certificate	CQC2010010307387700
	CQC2019010307243864
Cut-off Current Characteristic	1SAM300508F0001
	1SAM300508F0003
Declaration of Conformity - CCC	2020980307003526
	2020980307003041
Declaration of Conformity - CE	1SAD101100-3407
Declaration of Conformity - UKCA	1SAD201100-3407
UL Certificate	E137861-20090225
	E345003-20090225
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	92 mm
Package Level 1 Depth / Length	102 mm
Package Level 1 Height	50 mm
Package Level 1 Gross Weight	0.325 kg
Package Level 1 EAN	4013614521584
Package Level 2 Units	carton 30 piece
Package Level 2 Width	280 mm
Package Level 2 Depth / Length	395 mm
Package Level 2 Height	210 mm
Package Level 2 Gross Weight	13.386 kg
Package Level 2 EAN	4013614523151
External Classifications and Standards
Object Classification Code	F
ETIM 9	EC000074 - Motor protection circuit-breaker
ETIM 10	EC000074 - Motor protection circuit-breaker
eClass	V11.0 : 27370401
UNSPSC	39121521
IDEA Granular Category Code (IGCC)	4845 >> 3 Pole Motor Circuit Protector Circuit Breakers

ETIM for 1SAM360200R1011 Low-voltage industrial controls and switchgear (EC000074)

Feature nameOverload release current setting (EF002336)

Feature value16 A

Feature nameAdjustment range undelayed short-circuit release (EF007131)

Feature value200 A

Feature nameWith thermal overload protection (EF006233)

Feature valueNo

Feature namePhase failure sensitive (EF007400)

Feature valueNo

Feature nameSwitch off technique (EF007007)

Feature valueMagnetic

Feature nameRated operating voltage (EF001435)

Feature value690 V

Feature nameRated permanent current Iu (EF001389)

Feature value16 A

Feature nameRated operation power at AC-3, 230 V (EF007025)

Feature value7.5 kW

Feature nameRated operation power at AC-3, 400 V (EF001364)

Feature value7.5 kW

Feature namePower loss (EF005387)

Feature value5.7 W

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameType of control element (EF006976)

Feature valueOther

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameWith integrated auxiliary switch (EF001387)

Feature valueNo

Feature nameWith integrated under voltage release (EF001390)

Feature valueNo

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameRated short-circuit breaking capacity Icu at 400 V, AC (EF007049)

Feature value100 kA

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP20

Feature nameHeight (EF000040)

Feature value97.8 mm

Feature nameWidth (EF000008)

Feature value45 mm

Feature nameDepth (EF000049)

Feature value86.55 mm
