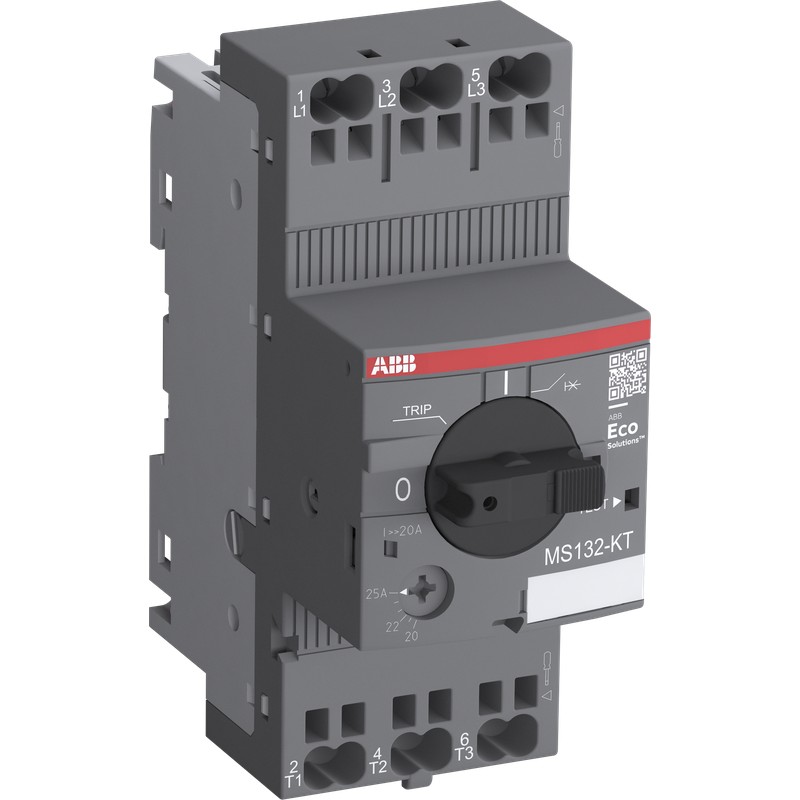

1SAM340010R1008 ABB MS132-4.0KT Motor guard trafo pushin
1SAM340010R1008
ABB
MS132-4.0KT Motor guard trafo pushin
MS132-4.0KT Circuit Breaker for Primary Transformer Protection 2.5 ... 4.0 A
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Electronic motor protection relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC131058D0201 |
| Instructions and Manuals | 2CDC131158M6801 |
| Instructions and Manuals (Part 2) | 2CDC131060M0202 |
| Time-Current Characteristic Curve | 1SAM300535F0008 |
| I²t Characteristic | 1SAM300517F0001 |
| Cut-off Current Characteristic | 1SAM300518F0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 9AKK107991A4712 |
| 2CDC131153V0201 | |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 0.286 kg |
| Technical | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA |
| (400 V AC) 100 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 80 A |
| Setting Range | 2.5 ... 4.0 A |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 4 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Operating Frequency (fsw) | 0 ... 400 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.6 ... 1.5 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 4 A |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP20 | |
| Pollution Degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Push-in Spring Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.5 ... 4 mm² |
| Flexible with Insulated Ferrule 1x 0.5 ... 4 mm² | |
| Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm² | |
| Flexible 1/2x 0.75 ... 4 mm² | |
| Solid 1/2x 1 ... 2.5 mm² | |
| Stranded 1/2x 1 ... 6 mm² | |
| Wire Stripping Length | Main Circuit 12 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Minimum Mounting Distance | Electrical Conductive Board, Vertical 75 mm |
| Other Device Same Type, Horizontal 9 mm | |
| Other Device Same Type, Vertical 150 mm | |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-2 | |
| IEC/EN 60947-4-1 | |
| IEC 60335-2-40 A2L | |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA |
| Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 0.13 Hp |
| (220 ... 240 V AC) Single Phase 0.33 Hp | |
| Full Load Amps Motor Use | (120 V AC) Single Phase 4 A |
| (220 ... 240 V AC) Single Phase 4 A | |
| Locked Rotor Amps | (120 V AC) Single Phase 24 A |
| (220 ... 240 V AC) Single Phase 24 A | |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 18-10 AWG |
| Stranded 1x 8 AWG | |
| Environmental | |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C |
| Operation -25 ... +70 °C | |
| Operation Compensated -25 ... +60 °C | |
| Storage -50 ... +80 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| End Of Life Disassembling Instructions | 1SAC200333H0001 |
| Environmental Product Declaration - EPD | 1SAC200360H0001 |
| 1SAC200385H0001 | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SAA963000-4601 |
| CCC Certificate | 2024010307658958 |
| CQC Certificate | CQC2017010307034621 |
| Cut-off Current Characteristic | 1SAM300518F0001 |
| Declaration of Conformity - CCC | 2020980307004600 |
| Declaration of Conformity - CE | 1SAD101100-3404 |
| Declaration of Conformity - UKCA | 1SAD201100-3404 |
| KC Certificate | 1SAA963002-1502 |
| RMRS Certificate | 1SAA918000-0704 |
| UL Certificate | E137861-20090225 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 117 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.312 kg |
| Package Level 1 EAN | 4013614535185 |
| Package Level 2 Units | carton 28 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 13.386 kg |
| Package Level 2 EAN | 4013614535505 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| eClass | V11.0 : 27370409 |
| UNSPSC | 39121601 |
| IDEA Granular Category Code (IGCC) | 4813 >> Circuit breakers |
| E-Number (Finland) | 3709085 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 4 A |
| Rated voltage (EF003977) | 690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 100 kA |
| Overload release current setting (EF002336) | 2.5 A |
| Adjustment range undelayed short-circuit release (EF007131) | 80 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Device construction (EF008240) | Complete device in housing |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| DIN rail (top hat rail) mounting optional (EF008904) | Yes |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | Yes |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Rotating button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | No |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 70 Mbytes |
|
| 1SAM340010R1008 1SAM340010R1008 EN_1SAM340010R1008.pdf | 105 Kbytes |
|
