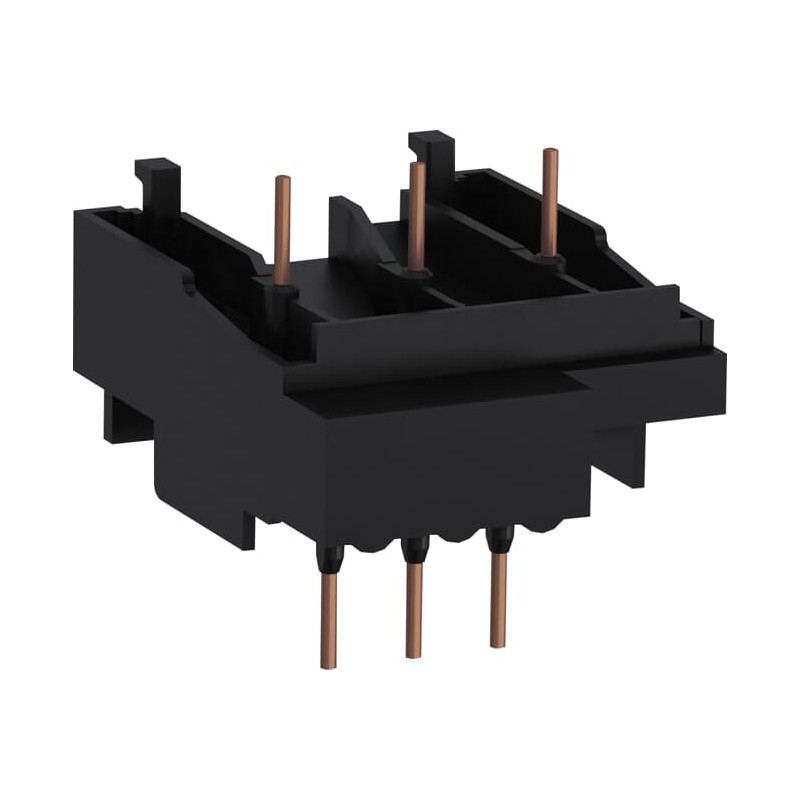

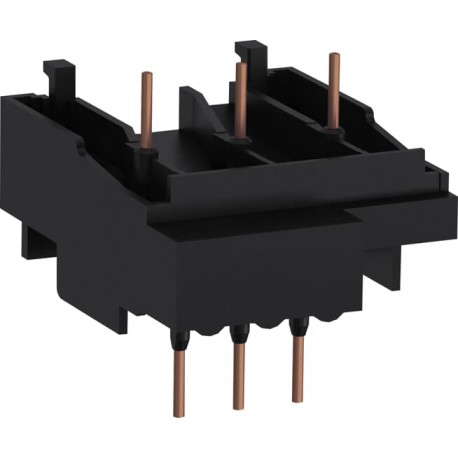

1SAM301920R1001 ABB BEMC/132 Link connection MS + MC
1SAM301920R1001
ABB
BEMC/132 Link connection MS + MC
BEMC/132 Connecting Link - Screw Terminals
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Instructions and Manuals | 1SAC200030I0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 23.7 mm |
| Product Net Depth / Length | 58.2 mm |
| Product Net Weight | 0.021 kg |
| Technical | |
| Rated Operational Voltage | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Product Name | Connecting Link |
| Suitable For | MC1 |
| MC2 equipped with Screw terminals | |
| Suitable for Product Class | Mini Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Information | 2CMT2021-006277 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | cUL_E137861 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Container Information | |
| Package Level 1 Width | 67 mm |
| Package Level 1 Depth / Length | 52 mm |
| Package Level 1 Height | 49 mm |
| Package Level 1 Gross Weight | 0.03 kg |
| Package Level 1 EAN | 4013614559150 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 76 mm |
| Package Level 2 Depth / Length | 125 mm |
| Package Level 2 Height | 91 mm |
| Package Level 2 Gross Weight | 0.2 kg |
| Package Level 2 EAN | 4013614559167 |
| Package Level 2 Units | box 6 piece |
| Classifications | |
| Object Classification Code | X |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
