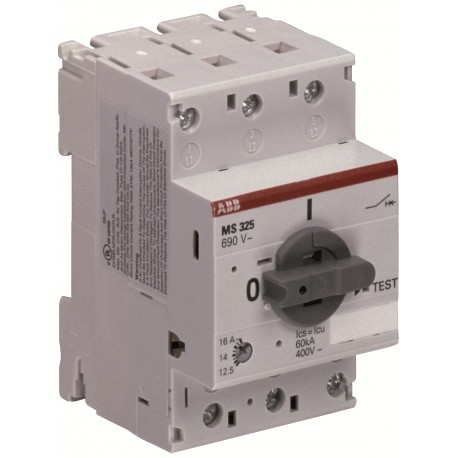

1SAM150000R1010 ABB MS325-9 Manual Motor Starter
1SAM150000R1010
ABB
MS325-9 Manual Motor Starter
MS325-9 Manual Motor Starter 6.3 ... 9.0 A
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Replacement Product ID (NEW) | 1SAM350000R1010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC131046D0201 |
| Instructions and Manuals | 2CDC131089M6801 |
| Time-Current Characteristic Curve | 1SAM100513F0010 |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Height | 87.5 mm |
| Product Net Depth / Length | 75.5 mm |
| Product Net Weight | 0.34 kg |
| Technical | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA |
| (400 V AC) 100 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 5 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA |
| (400 V AC) 100 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 5 kA | |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 135.5 A |
| Setting Range | 6.3 ... 9.0 A |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 2.2 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Main Circuit 690 V AC | |
| Main Circuit 440 V DC | |
| Rated Operational Current (Ie) | 9 A |
| Rated Operational Current AC-3 (Ie) | 9 A |
| Rated Operational Current AC-3e (Ie) | 6.3 A |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Main Circuit 50 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.9 ... 1.8 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 9 A |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP10 | |
| Main Circuit Terminals IP20 | |
| Pollution Degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Ferrule 1/2x 0.75 ... 4 mm² | |
| Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm² | |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Flexible 1/2x 1 ... 6 mm² | |
| Rigid 1/2x 1 ... 4 mm² | |
| Rigid 1/2x 1 ... 6 mm² | |
| Tightening Torque | Main Circuit 1.4 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Main Circuit 10 mm | |
| Recommended Screw Driver | Pozidriv 2 |
| M3.5 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm |
| Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm | |
| Electrical Conductive Board, Vertical 75 mm | |
| Other Device Same Type, Horizontal 0 mm | |
| Other Device Same Type, Vertical 150 mm | |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-2 | |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 18 kA |
| Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 18 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 1 Hp |
| (208 V AC) Three Phase 1 Hp | |
| (220 ... 240 V AC) Three Phase 2.5 Hp | |
| (440 ... 480 V AC) Three Phase 5 Hp | |
| (550 ... 600 V AC) Three Phase 7.5 Hp | |
| Full Load Amps Motor Use | (200 V AC) Three Phase 6.3 A |
| (208 V AC) Three Phase 6.3 A | |
| (220 ... 240 V AC) Three Phase 6.3 A | |
| (440 ... 480 V AC) Three Phase 4.8 A | |
| (550 ... 600 V AC) Three Phase 6.1 A | |
| Locked Rotor Amps | (200 V AC) Three Phase 37.8 A |
| (208 V AC) Three Phase 37.8 A | |
| (220 ... 240 V AC) Three Phase 37.8 A | |
| (440 ... 480 V AC) Three Phase 32 A | |
| (550 ... 600 V AC) Three Phase 36.8 A | |
| General Use Rating UL/CSA | (600 V AC) 6.3 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG |
| Flexible 1/2x 14-8 AWG | |
| Stranded 1/2x 16-12 AWG | |
| Stranded 1/2x 14-8 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Main Circuit 14 in·lb | |
| Environmental | |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C |
| Operation -25 ... +50 °C | |
| Operation Compensated -25 ... +55 °C | |
| Operation Compensated -25 ... +50 °C | |
| Storage -50 ... +80 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Resistance to Vibrations | 5g 10 ... 150 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA960005-4502 |
| RoHS Declaration | 1SAA963006-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ATEX Certificate | 1SAA918000-3903 |
| BV Certificate | 1SAA918000-0205 |
| CB Certificate | 1SAA918000-2003 |
| CCC Certificate | 2024010307659819 |
| CQC Certificate | CQC2017010307033534 |
| cUL Certificate | cUL_E137861 |
| cUL_E345003 | |
| Declaration of Conformity - CCC | 2020980307003580 |
| Declaration of Conformity - CE | 1SAD101100-3412 |
| Declaration of Conformity - UKCA | 1SAD201100-3412 |
| DNV Certificate | 1SAA918000-0306 |
| GL Certificate | 1SAA918000-0403 |
| LR Certificate | 1SAA918000-0504 |
| RINA Certificate | 1SAA918000-0804 |
| RMRS Certificate | 1SAA918000-0704 |
| UL Certificate | UL_E137861 |
| UL_E345003 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 58 mm |
| Package Level 1 Height | 78 mm |
| Package Level 1 Gross Weight | 0.37 kg |
| Package Level 1 EAN | 4013614195068 |
| Package Level 2 Units | carton 24 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 8.18 kg |
| Package Level 2 EAN | 4013614494482 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000074 - Motor protection circuit-breaker |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4731 >> Manual Starters |
| E-Number (Finland) | 3707060 |
