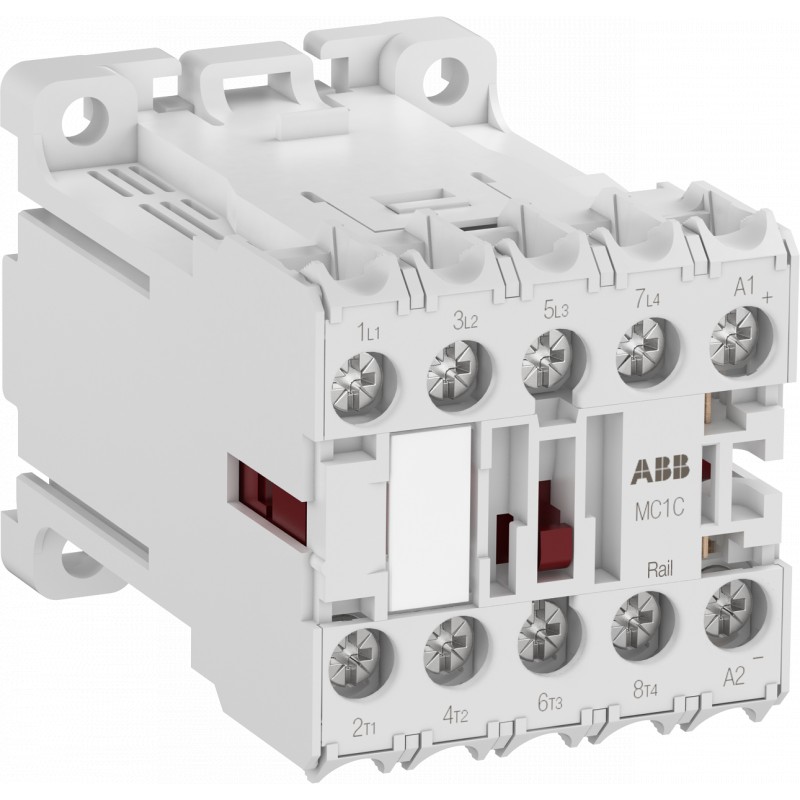

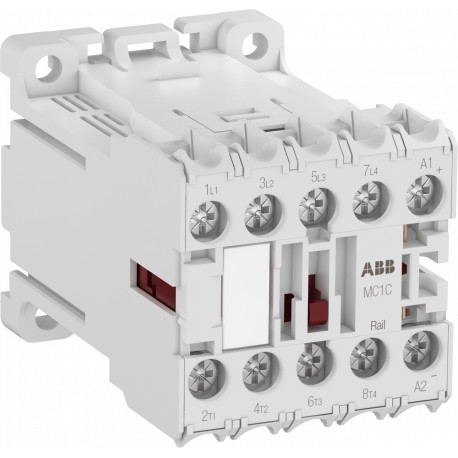

1SAL247509R9911 ABB MC1CB00ARWID-RAIL Mini Contactor
1SAL247509R9911
ABB
MC1CB00ARWID-RAIL Mini Contactor
MC1CB00ARWID-RAIL Mini Contactor 51 ... 90 V DC - 2 NO - 2 NC - Ring-Tongue Terminals
Low-voltage industrial components > Power contactor, AC switching
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAC426184_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC103061M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.25 kg |
| Technical | |
| Number of Main Contacts NO | 2 |
| Number of Main Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Main Circuit 440 V DC | |
| Rated Frequency (f) | Control Circuit DC |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Main Circuit DC | |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 20 A |
| (690 V) 70 °C 16 A | |
| (230 V) 55 °C 20 A | |
| (230 V) 70 °C 16 A | |
| (400 V) 55 °C 20 A | |
| (400 V) 70 °C 16 A | |
| (500 V) 55 °C 20 A | |
| (500 V) 70 °C 16 A | |
| Rated Operational Current AC-3 (Ie) | (230 V) 55°C 9 A |
| (400 V) 55 °C 9 A | |
| (500 V) 55 °C 8 A | |
| (690 V) NC 55°C 4 A | |
| (690 V) NO 55°C 5 A | |
| Rated Operational Power AC-3 (Pe) | (230 V) Three Phase 2.2 kW |
| (400 V) Three Phase 4 kW | |
| (500 V) Three Phase 4 kW | |
| (690 V) Three Phase, NC 3 kW | |
| (690 V) Three Phase, NO 4 kW | |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| (AC-15) 360 cycles per hour | |
| (AC-3) 1200 cycles per hour | |
| (DC-1) 600 cycles per hour | |
| (DC-13) 360 cycles per hour | |
| (DC-3) 600 cycles per hour | |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Coil Operating Limits | (acc. to IEC 60947-4-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 51 ... 90 V DC |
| Coil Consumption | Average Holding Value DC 4 W |
| Average Pull-in Value DC 4 W | |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 0.7 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Connecting Capacity Main Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Connecting Capacity Control Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 9 mm |
| Main Circuit 9 mm | |
| Degree of Protection | Control Circuit Terminals IP20 |
| Main Circuit Terminals IP20 | |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening Torque | Control Circuit 0.8 N·m |
| Main Circuit 0.8 ... 1.0 N·m | |
| Terminal Type | Ring-Tongue Terminals |
| Mini Contactor Type | Mini Contactor |
| Product Name | Mini Contactor |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 20 A |
| Horsepower Rating UL/CSA | (115 V AC) Single Phase 0.5 Hp |
| (200 V AC) Three Phase 3 Hp | |
| (220 ... 240 V AC) Three Phase 3 Hp | |
| (230 V AC) Single Phase 1.5 Hp | |
| (440 ... 480 V AC) Three Phase 5 Hp | |
| (550 ... 600 V AC) Three Phase 5 Hp | |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 18-12 AWG |
| Tightening Torque UL/CSA | Control Circuit 7 in·lb |
| Main Circuit 7 in·lb | |
| Full Load Amps Motor Use | (115 V AC) Single Phase 9.8 A |
| (200 V AC) Three Phase 11 A | |
| (220 ... 240 V AC) Three Phase 9.6 A | |
| (230 V AC) Single Phase 10 A | |
| (440 ... 480 V AC) Three Phase 7.6 A | |
| (550 ... 600 V AC) Three Phase 6.1 A | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SAA971000-4601 |
| BV Certificate | 1SAA971000-0201 |
| CB Certificate | 1SAA971000-2001 |
| CQC Certificate | CQC2019010304197131 |
| Declaration of Conformity - CCC | 2020980304001602 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| RINA Certificate | 1SAA971000-0801 |
| UL Certificate | E191658-19880826 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 46 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Height | 70 mm |
| Package Level 1 Gross Weight | 0.255 kg |
| Package Level 1 EAN | 4013614548901 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 243 mm |
| Package Level 2 Depth / Length | 106 mm |
| Package Level 2 Height | 80 mm |
| Package Level 2 Gross Weight | 2.61 kg |
| Package Level 2 EAN | 4013614549106 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| E-Number (Finland) | 3709736 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 51 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 9 A |
| Rated operation power at AC-4, 400 V (EF008496) | 4 kW |
| Rated operation power NEMA (EF011960) | 2.2371 kW |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Type of electrical connection of main circuit (EF006819) | Other |
| Number of normally closed contacts as main contact (EF001375) | 2 |
| Number of normally open contacts as main contact (EF001374) | 2 |
