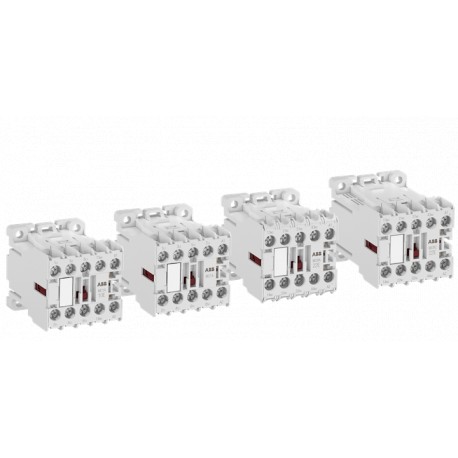

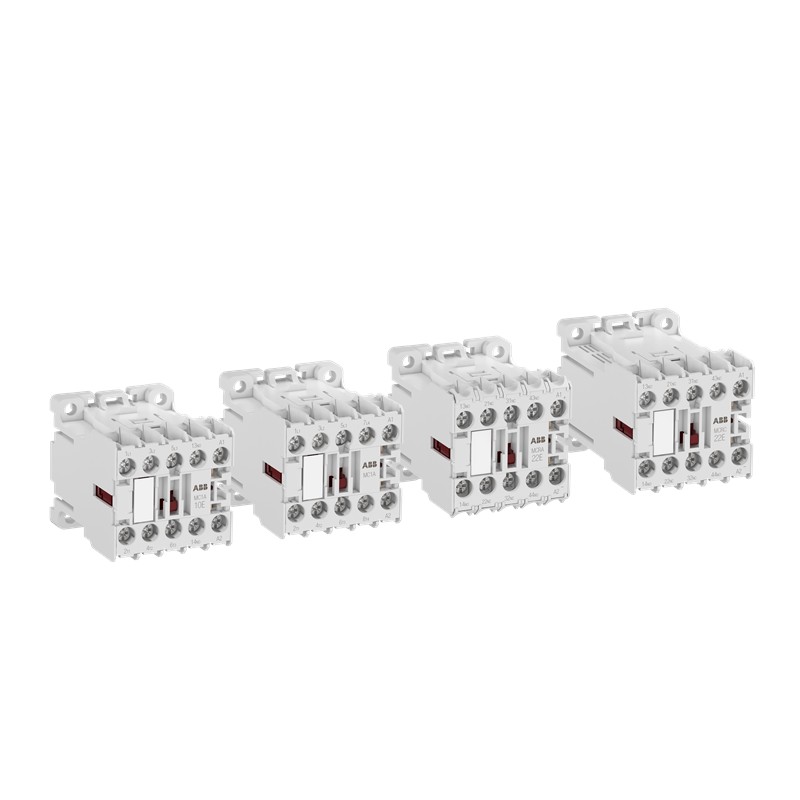

1SAL102701R9901 ABB MC1A310AI1 Mini Contactor
1SAL102701R9901
ABB
MC1A310AI1 Mini Contactor
MC1A310AI1 Mini Contactor 24 V AC - 3 NO - 0 NC - Soldering Pins
Low-voltage industrial components > Power contactor, AC switching
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC103061M6801 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.17 kg |
| Technical | |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| UL 60947-5-1 | |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 440 V DC | |
| Main Circuit 690 V AC | |
| Main Circuit 440 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Control Circuit 50 Hz | |
| Control Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Main Circuit DC | |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Main Circuit 20 A | |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 20 A |
| (690 V) 70 °C 16 A | |
| (230 V) 55 °C 20 A | |
| (230 V) 70 °C 16 A | |
| (400 V) 55 °C 20 A | |
| (400 V) 70 °C 16 A | |
| (500 V) 55 °C 20 A | |
| (500 V) 70 °C 16 A | |
| Rated Operational Current AC-3 (Ie) | (230 V) 55°C 9 A |
| (400 V) 55 °C 9 A | |
| (500 V) 55 °C 8 A | |
| (690 V) NO 55°C 5 A | |
| Rated Operational Current AC-15 (Ie) | (240 V) 6 A |
| (400 V) 4 A | |
| (500 V) 2.5 A | |
| (690 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 5 A |
| (48 V) 2.5 A | |
| (125 V) 0.55 A | |
| (250 V) 0.3 A | |
| (440 V) 0.15 A | |
| Rated Operational Power AC-3 (Pe) | (230 V) Three Phase 2.2 kW |
| (400 V) Three Phase 4 kW | |
| (500 V) Three Phase 4 kW | |
| (690 V) Three Phase, NO 4 kW | |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| (AC-15) 360 cycles per hour | |
| (AC-3) 1200 cycles per hour | |
| (DC-1) 600 cycles per hour | |
| (DC-13) 360 cycles per hour | |
| (DC-3) 600 cycles per hour | |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Minimum Switching Capacity | Auxiliary Circuit 17 V |
| Auxiliary Circuit 5 mA | |
| Coil Operating Limits | (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 24 V AC |
| Coil Consumption | Average Holding Value 50 Hz 5.3 V·A |
| Average Pull-in Value 50 Hz 5.3 V·A | |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 0.7 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Degree of Protection | Auxiliary Circuit Terminals IP00 |
| Control Circuit Terminals IP00 | |
| Main Circuit Terminals IP00 | |
| Terminal Type | Soldering Pins |
| Mini Contactor Type | Mini Contactor |
| Product Name | Mini Contactor |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 20 A |
| Horsepower Rating UL/CSA | (115 V AC) Single Phase 0.5 Hp |
| (200 V AC) Three Phase 3 Hp | |
| (220 ... 240 V AC) Three Phase 3 Hp | |
| (230 V AC) Single Phase 1.5 Hp | |
| (440 ... 480 V AC) Three Phase 5 Hp | |
| (550 ... 600 V AC) Three Phase 5 Hp | |
| Contact Rating UL/CSA | A600 |
| Q600 | |
| Full Load Amps Motor Use | (115 V AC) Single Phase 9.8 A |
| (200 V AC) Three Phase 11 A | |
| (220 ... 240 V AC) Three Phase 9.6 A | |
| (230 V AC) Single Phase 10 A | |
| (440 ... 480 V AC) Three Phase 7.6 A | |
| (550 ... 600 V AC) Three Phase 6.1 A | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SAA971000-4601 |
| BV Certificate | 1SAA971000-0201 |
| CB Certificate | 1SAA971000-2001 |
| cURus Certificate | cUL_E191658 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| RINA Certificate | 1SAA971000-0801 |
| UL Certificate | E191658-19880826 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 46 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Gross Weight | 0.175 kg |
| Package Level 1 EAN | 4013614549823 |
| Package Level 2 Units | box 20 piece |
| Package Level 2 Width | 106 mm |
| Package Level 2 Depth / Length | 238 mm |
| Package Level 2 Height | 133 mm |
| Package Level 2 Gross Weight | 3.55 kg |
| Package Level 2 EAN | 4013614549878 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| E-Number (Finland) | 3709592 |
