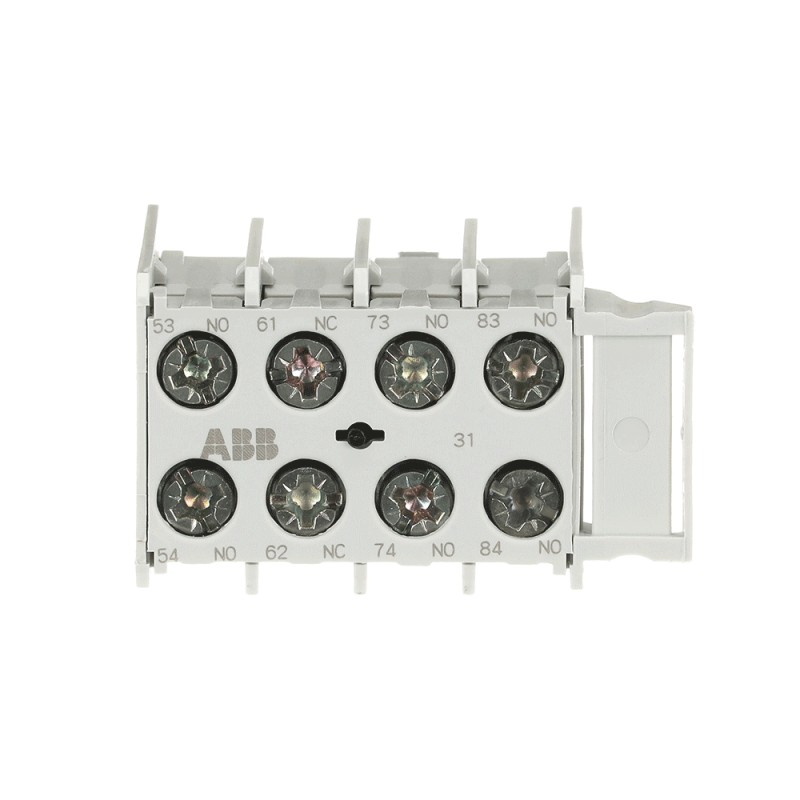

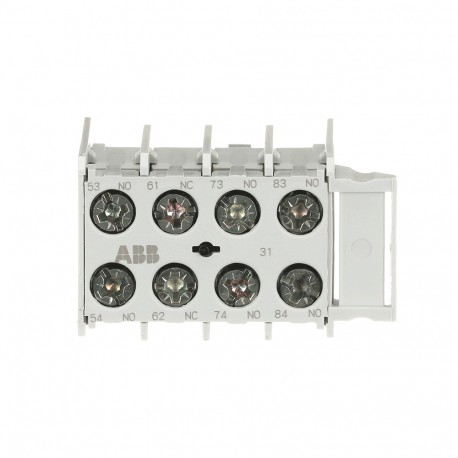

1SAL100990R9906 ABB MARN431AT Auxiliary Contact 3NO/1NC
1SAL100990R9906
ABB
MARN431AT Auxiliary Contact 3NO/1NC
MARN431AT Auxiliary Contact 3NO/1NC screw terminal, front mounted
Low-voltage industrial components > Auxiliary contact block
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102075M9901 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Height | 27 mm |
| Product Net Weight | 0.04 kg |
| Technical | |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 3 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-5-1 | |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 440 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 6 A |
| (400 V) 4 A | |
| (500 V) 2.5 A | |
| (690 V) 1.5 A | |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 360 cycles per hour |
| (DC-13) 360 cycles per hour | |
| Minimum Switching Capacity | > 17 V |
| > 5 mA | |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Flexible with Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 0.8 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | MC1 |
| MC2 | |
| MCR equipped with Screw terminals | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Auxiliary Contact Block |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 18-12 AWG |
| Contact Rating UL/CSA | A600 |
| Q600 | |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | 1SAA971003-2001 |
| CQC Certificate | CQC2019010304193152 |
| Declaration of Conformity - CCC | 2020980304001603 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| RINA Certificate | 1SAA971000-0801 |
| UL Certificate | E48139-19960510 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 EAN | 4013614550249 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 100 mm |
| Package Level 2 Depth / Length | 150 mm |
| Package Level 2 Height | 105 mm |
| Package Level 2 Gross Weight | 0.45 kg |
| Package Level 2 EAN | 4013614550737 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| E-Number (Finland) | 3709482 |
