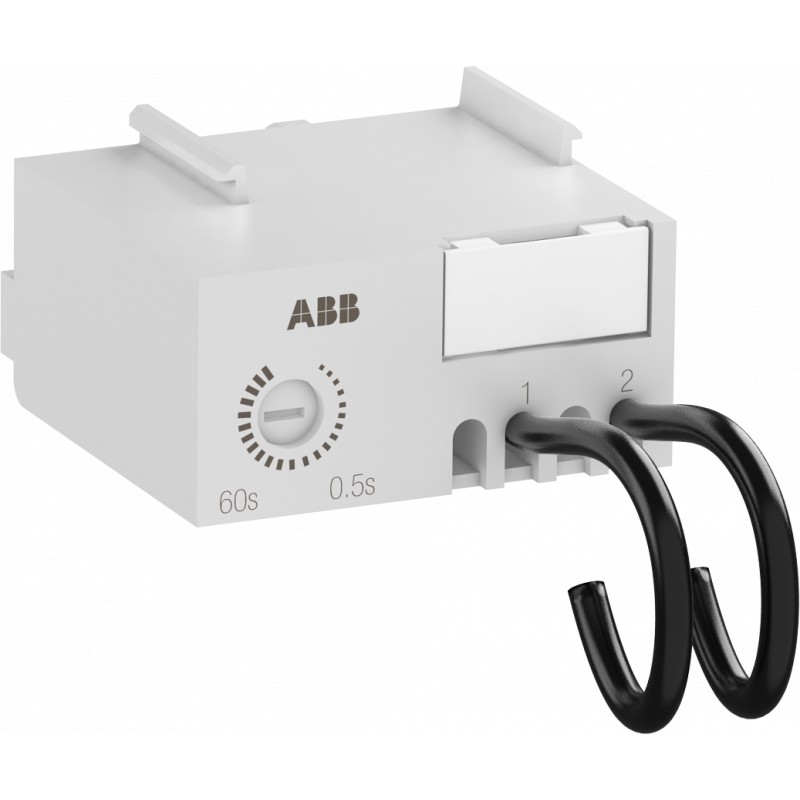

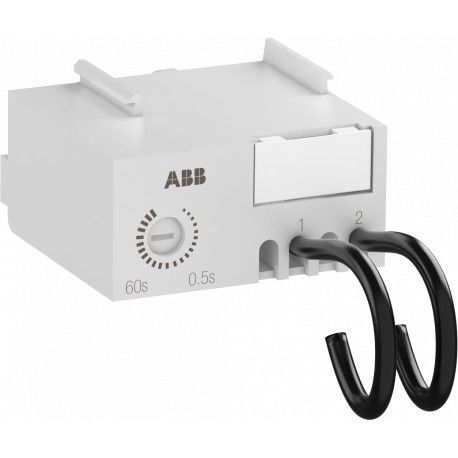

1SAL100542R9906 ABB MREBC20AC2 Electronic Timer
1SAL100542R9906
ABB
MREBC20AC2 Electronic Timer
MREBC20AC2 Electronic Timer 0.2-24s 24-250 V AC/DC
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Popular Downloads | |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102077M9901 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Depth / Length | 36 mm |
| Product Net Height | 21 mm |
| Product Net Weight | 0.04 kg |
| Technical | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Rated Operational Voltage | 24 ... 250 V AC/DC |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Control Circuit Voltage (Uc) | 24 ... 250 V |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Timer Relay Type | ON-Delay |
| Suitable For | MC1 |
| MC2 | |
| MCR | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Timer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SAD101100-3202 |
| Declaration of Conformity - UKCA | 1SAD201100-3202 |
| UL Certificate | E48139-19930108 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 25 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 EAN | 4013614550508 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 100 mm |
| Package Level 2 Depth / Length | 150 mm |
| Package Level 2 Height | 105 mm |
| Package Level 2 Gross Weight | 0.45 kg |
| Package Level 2 EAN | 4013614550973 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121529 |
| E-Number (Finland) | 3709743 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 240 Mbytes |
|
| 1SAL100542R9906 1SAL100542R9906 EN_1SAL100542R9906.pdf | 210 Kbytes |
|
