1SAJ262000R0100 ABB EIU32.0
1SAJ262000R0100
ABB
EIU32.0

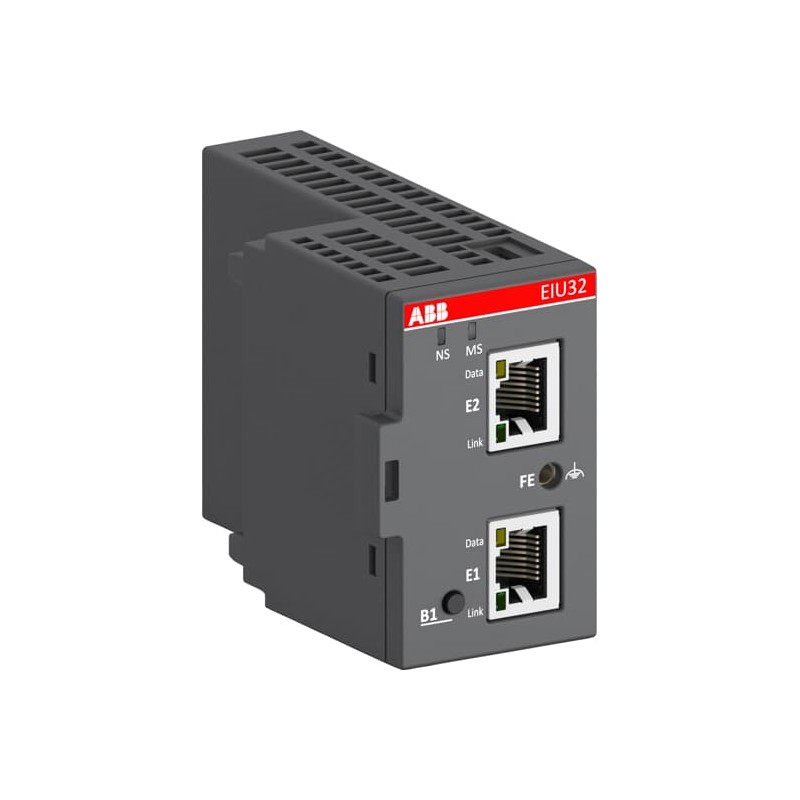

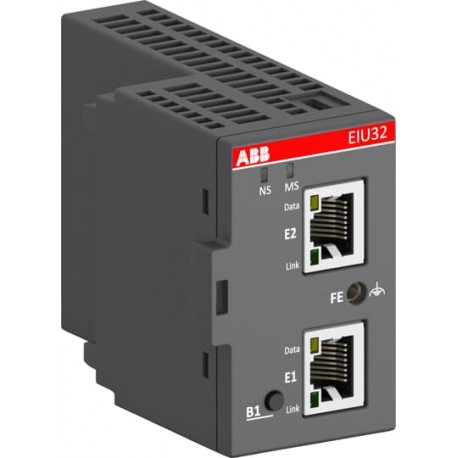

EIU32.0 EtherNet/IP Interface
PLC's > Fieldbus, decentr. periphery - communication module
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85176200 |
| Product Main Type | EIU32.0 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC135055D0201 |
| Instructions and Manuals | 1SAC200302M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181493_EPLAN |
| Dimensions | |
| Product Net Width | 42.5 mm |
| Product Net Depth / Length | 93.3 mm |
| Product Net Height | 64 mm |
| Product Net Weight | 0.109 kg |
| Technical | |
| Mounting Type | UMC100.3/Single Mounting |
| Mounting on DIN Rail | With Single Mounting KIt |
| Power Loss | Approximately 2.2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.142 |
| IEC/EN 63000 | |
| IEC 61131-2 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-4 | |
| UL 508 | |
| Suitable For | UMC100.3 |
| Environmental | |
| Degree of Protection | IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA983001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ATEX Certificate | Not available |
| cULus Certificate | cULus61010_20210816-E179811 |
| Declaration of Conformity - CE | 1SVD981065-00 |
| Declaration of Conformity - UKCA | 1SVD981065-10 |
| DNV Certificate | TAA000015X-revision4 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 68 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.129 kg |
| Package Level 1 EAN | 4013614515811 |
| External Classifications and Standards | |
| eClass | V11.0 : 27242608 |
| E-Number (Norway) | 4552642 |
| ETIM 6 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| IDEA Granular Category Code (IGCC) | 3587 >> Fieldbus, decentr. periphery - communication module |
| Object Classification Code | K |
| UNSPSC | 32151802 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF ABB Time Relays CT-C CT-S CT-D 2024 EN.pdf | 47 Mbytes |
|
| 1SAJ262000R0100 1SAJ262000R0100 EN_1SAJ262000R0100.pdf | 85 Kbytes |
|
