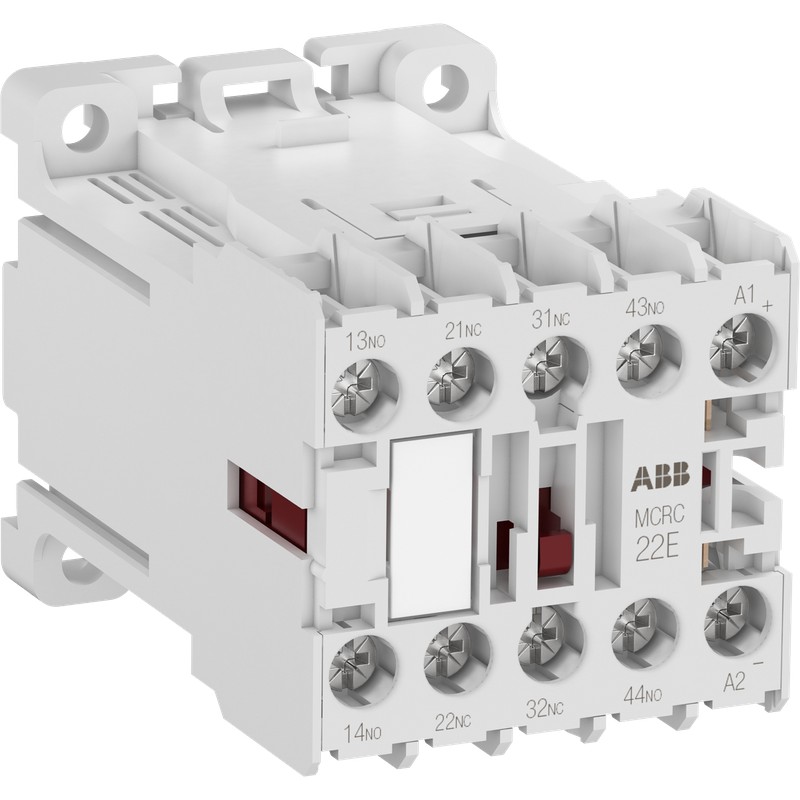

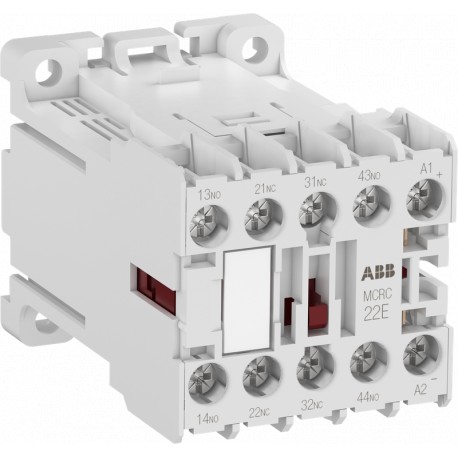

1SAH113324R9900 ABB MCRC022ATDD Mini Contactor Relay
1SAH113324R9900
ABB
MCRC022ATDD Mini Contactor Relay
The MCRC022ATDD mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.
Low-voltage industrial components > Contactor relay
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
Extended Product Type:
MCRC022ATDD
Product ID:
1SAH113324R9900
EAN:
4013614547133
Catalog Description:
MCRC022ATDD Mini Contactor Relay 2NO+2NC 24VDC Diode
Long Description:
The MCRC022ATDD mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.
Ordering
EAN:
4013614547133
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Dimensions
Product Net Width:
45 mm
Product Net Height:
48 mm
Product Net Depth / Length:
68 mm
Product Net Weight:
0.235 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
46 mm
Package Level 1 Height:
70 mm
Package Level 1 Depth / Length:
49 mm
Package Level 1 Gross Weight:
0.24 kg
Package Level 1 EAN:
4013614547133
Package Level 2 Units:
box 10 piece
Package Level 2 Width:
243 mm
Package Level 2 Height:
80 mm
Package Level 2 Depth / Length:
106 mm
Package Level 2 Gross Weight:
2.46 kg
Package Level 2 EAN:
4013614547546
Environmental
Ambient Air Temperature:
Operation -40 ... +55 °C
Storage -55 ... +80 °C
Maximum Operating Altitude Permissible:
3000 m
Resistance to Vibrations acc. to IEC 60068-2-6:
5g / 3 ... 150 Hz
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Contact Rating UL/CSA:
A600
Q600
General Use Rating UL/CSA:
(600 V AC) 10 A
Connecting Capacity Auxiliary Circuit UL/CSA:
Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Control Circuit 7 in·lb
Main Circuit 7 in·lb
Pilot Duty of Contact Elements acc. UL508:
A600
Q600
Additional Information
Coil Consumption:
Average Holding Value DC 3 W
Average Pull-in Value DC 3 W
Coil Operating Limits:
(acc. to IEC 60947-5-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1x 0.75 ... 4 mm²
Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 2.5 mm²
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit 16 A
Degree of Protection:
Auxiliary Circuit Terminals IP20
Control Circuit Terminals IP20
Main Circuit Terminals IP20
Maximum Electrical Switching Frequency:
(AC-15) 360 cycles per hour
(DC-13) 360 cycles per hour
Mechanical Durability:
10000000 cycle
Mini Contactor Type:
Mini Contactor Relay
Minimum Switching Capacity:
Auxiliary Circuit 17 V
Auxiliary Circuit 5 mA
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Any, Position 1-6
Mounting Type:
DIN-rail
Screw
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
2
Number of Poles:
0
Number of Main Contacts NC:
0
Number of Main Contacts NO:
0
Power Loss:
at Rated Operating Conditions per Pole 0.4 W
Product Main Type:
MCR
Product Name:
Mini Contactor
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Control Circuit DC
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui):
750 V
Rated Operational Current AC-15 (Ie):
(240 V) 6 A
(400 V) 4 A
(500 V) 2.5 A
(690 V) 1.5 A
Rated Operational Current DC-13 (Ie):
(24 V) 5 A
(48 V) 2.5 A
(125 V) 0.7 A
(250 V) 0.3 A
(440 V) 0.15 A
Rated Operational Voltage:
Auxiliary Circuit 690 V AC
Auxiliary Circuit 440 V DC
Standards:
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-4-1
UL 60947-5-1
Terminal Type:
Screw Terminals
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.0 N·m
Control Circuit 0.8 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Control Circuit 9 mm
Certificates and Declarations (Document Number)
BV Certificate:\n1SAA971000-0201
CB Certificate:\n1SAA971001-2001
CCC Certificate:\n1SAA971000-3802
cULus Certificate:\ncUL_E48139
Declaration of Conformity - CE:\n1SAD938502-0305
EAC Certificate:\n1SAA971001-2701
Instructions and Manuals:\n2CDC103061M6801
RoHS Information:\n1SAD038501-0305
Classifications
ETIM 5:
EC000196 - Contactor relay
ETIM 6:
EC000196 - Contactor relay
ETIM 7:
EC000196 - Contactor relay
Object Classification Code:
K
UNSPSC:
39121500
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
7.0 27371001
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation current Ie, 400 V (EF001378) | 4 A |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Mounting method (EF000003) | DIN rail |
| Interface (EF000594) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With LED indication (EF005950) | No |
| Suitable for manual operation (EF002978) | No |
