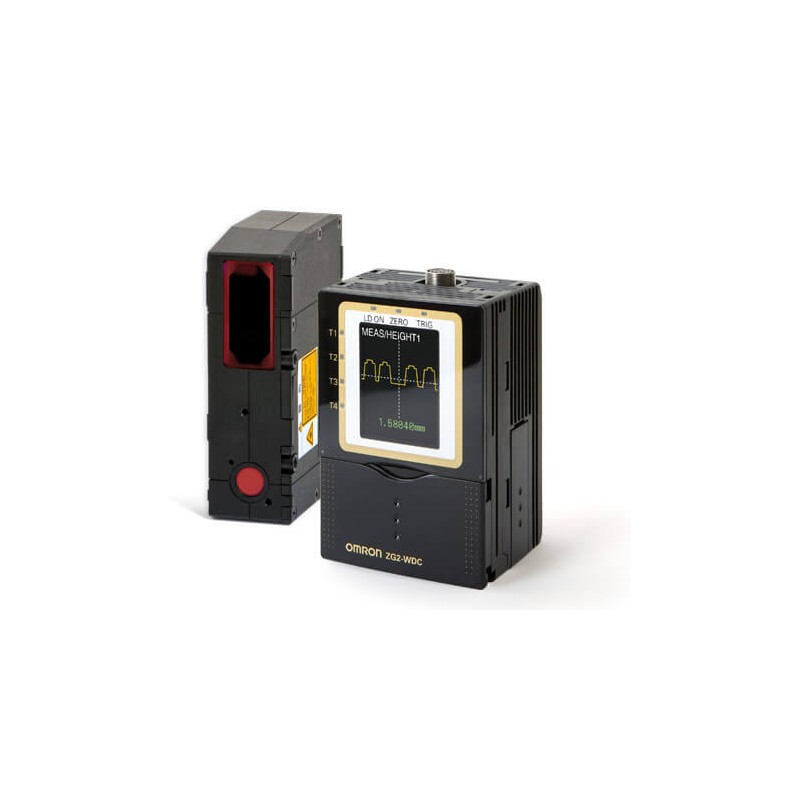

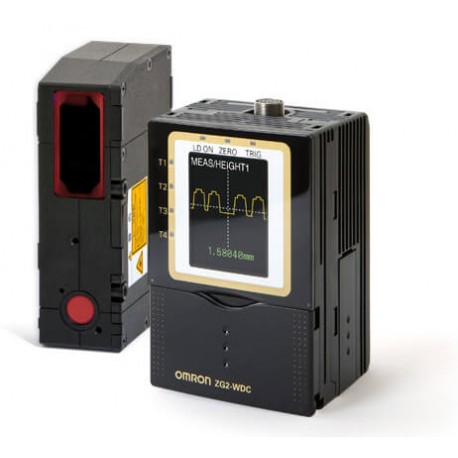

ZG2 laser-Controller multifunktionale erweitert NPN + Software
ZG2 Laser Advanced Multifunktionsregler NPN + Software
Erweiterte Sensoren > ZG
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Note: - For details, refer the ratings and specifications table.
- Designate the cable length (0.5 m, 2 m) when ordering.
ZG2-WDC11A1 | ||
Height direction1 | ||||||||
Linearity (in the height direction)2 | ||||||||
Temperature characteristic3 | ||||||||
5 mW max. output, 1 mW max. exposure (without using optical instruments) | ||||||||
Class 2M of EN60825-1 / IEC60825-1 | Class 2 of EN60825-1 / IEC60825-1 | |||||||
Beam shape (at measurement center distance)4 | ||||||||
STANDBY: Lights when laser irradiation preparation is complete (indication color: green) | ||||||||
LD_ON: Lights when the laser is irradiating (indication color: green) | ||||||||
Illumination on the photo-receiving face 7,000 lx max.: Incandescent lamp | ||||||||
Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation) | ||||||||
10 to 150 Hz with 0.35 mm single amplitude for 80 min each in X, Y, and Z directions | ||||||||
150 m/s², 3 times each in 6 directions (up / down, right / left, forward / backward) | ||||||||
Case: Aluminum diecast, Front cover: Glass, Cable insulation: Heat-resistive polyvinyl chloride (PVC), | ||||||||
Laser labels (EN: 2 labels, FDA: 3 labels), Ferrite core (1), Instruction manual |
*1Obtained by setting an Omron standard measurement object at the measurement center distance and determing the average height of the beam line. The conditions are given in the table below. However, satisfactory resolution cannot be attained in strong electromagnetic fields.The minimum resolution of the ZG2-WDS8T/WDS3VT is 0.25 ƒÊm, even when the average number of operations is increased. Resolution does not go any lower.
*2The tolerance for an ideal straight line obtained by determing the average height of an Omron standard measurement object for the beam line. The CCD high-resolution mode is used. Linearity varies depending on the measurement object.
*3A value attained by using an aluminum jig to secure the distance between the Sensor head and the measurement object. The CCD standard mode is used.
*4Defined as 1/e2(13.5%) of the center light intensity. This may be influenced when light leakage also exists outside the defined area and the reflectivity of the light around the measurement object is higher than that of the measurement object.
Measurement cycle2 | 16 ms (high-precision mode), 8 ms (standard mode), 5 ms (high-speed mode) | |||
Select voltage or current (using the sliding switch on the bottom surface) | ||||
ON: Power supply voltage short or | ||||
Parall output3 | ||||
Height, 2-point Step, 3-point Step, Edge position, Edge width, Angle, Intersection coordinates, Intersection angle, Sectional area | ||||
Filter, Laser power adjustment, Position correction (height, position, lope), Linked operation, Point of inflection measurement | ||||
1,000 VAC, 50 / 60 Hz for 1 min between lead wires and Controller case | ||||
Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation) | ||||
Vibration frequency: 10 to 150 Hz, single amplitude: 0.35 mm, acceleration: 50 m/s² | ||||
150 m/s², 3 times each in 6 directions (up/down, right/left, forward/backward) | ||||
Approx. 300 g (including cable) (Packed state: Approx. 450 g) | ||||
ZG2-WDC_1: Large Ferrite Core (1 piece), Instruction Manual ZG2-WDC_1A: Large Ferrite Core (1 piece), Small Ferrite Core (2 pieces), Instruction Manual, Setup Support Software (CD-ROM), USB cable (1 m) |
24 | ||||
ON: Power supply voltage short or power supply voltage | ||||
No. of logged data5 | Profiles saved: 5,120 profiles Measurement values saved: 65,000 values max.6 | |||
Memory card (256 MB)7 | Profiles saved: 35,328 profiles max. (256 profiles x 138 files) Measurement values saved: 7,150,000 values max. (65,000 values x 110 files) | |||
External triggers, data triggers (self-triggers), and time triggers | ||||
Operating: 0 to 50°C, Storage: 0 to 60°C (with no icing or condensation) | ||||
2.The image input periods listed here are for fixed/auto sensitivity. The image input period will be longer for multi-sensitivity, high-speed multi-sensitivity, or other settings. When the high-power mode is ON, the shortest image input period is 95 ms regardless of the setting of the CCD mode. Use the eco monitor in the RUN mode to determine the actual image input period.
5.Data is saved in the memory of the main unit during logging. The data is automatically saved in a memory card after logging is completed. The maximum number of logging differs according to set conditions. For details, refer to the Users Manual.
Titel: | Größe: | Typ: |
---|---|---|
PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes | |
PDF KATALOG OMRON DE.pdf | 91 Mbytes | |
ZG2-WDC11A ZG2WDC11A ZG2 1002B measurement_sensors_brochure_de.pdf | 1 Mbytes | |
ZG2-WDC11A ZG2WDC11A ZG2 1002B q167_zg2_brochure_en.pdf | 4 Mbytes |
