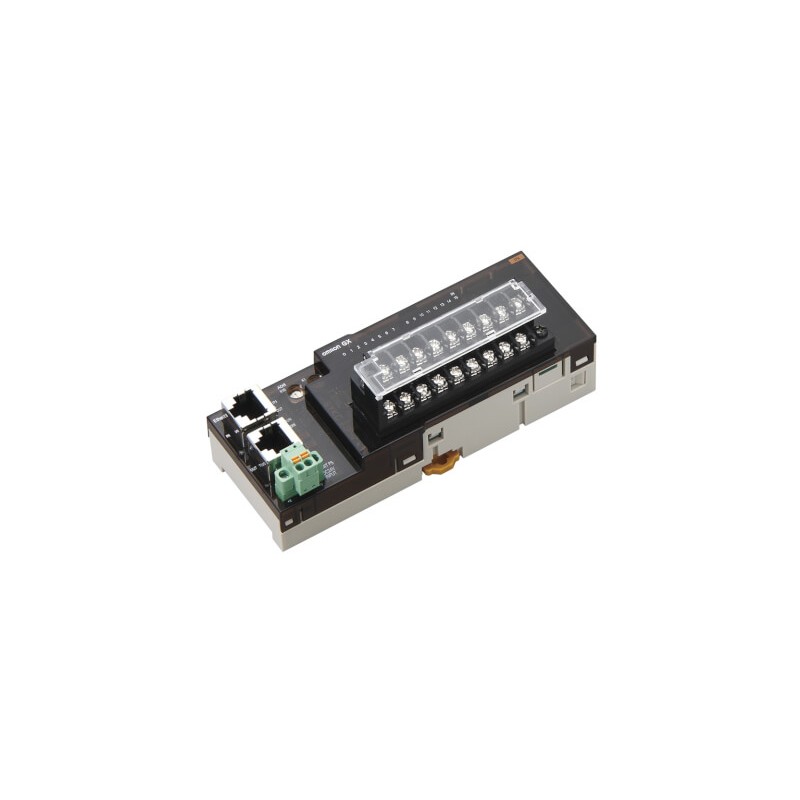

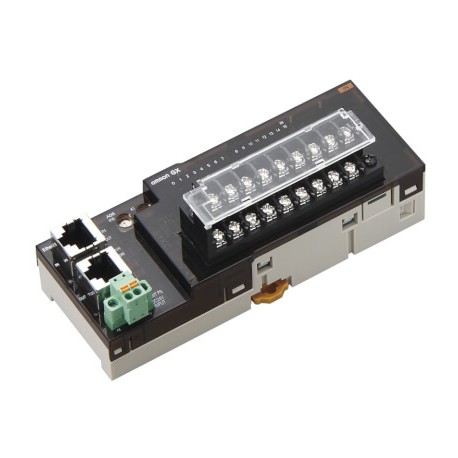

XWT-ID16 XWT 7002F XWTID16CHN OMRON Modul Erweiterung 16 Eingänge NPN

16-point NPN input unit

24 VDC, 6 mA per point

52×135×57

Expandable with one XWT unit

GX-ID1611

16-point NPN input unit

24 VDC, 6 mA per point

52×200×69

3-tier connection for direct sensor wiring

GX-ID1612

16-point PNP input unit

24 VDC, 6 mA per point

52×135×57

Expandable with one XWT unit

GX-ID1621

16-point PNP input unit

24 VDC, 6 mA per point

52×200×69

3-tier connection for direct sensor wiring

GX-ID1622

16-point relay output unit

2 A per point, max. 8 A per common

52×160×58

with easy-to-replace relays, expandable with one XWT unit

GX-OC1601

16-point NPN output unit

24 VDC, 0.5 A per point

52×135×57

Expandable with one XWT unit

GX-OD1611

16-point NPN output unit

24 VDC, 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-OD1612

16-point PNP output unit

24 VDC, 0.5 A per point

52×135×57

Expandable with one XWT unit

GX-OD1621

16-point PNP output unit

24 VDC, 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-OD1622

8-point input + 8-point output unit (NPN)

24 VDC, input 6 mA, output 0.5 A per point

52×135×57

-

GX-MD1611

8-point input + 8-point output unit (NPN)

24 VDC, input 6 mA, output 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-MD1612

8-point input + 8-point output unit (PNP)

24 VDC, input 6 mA, output 0.5 A per point

52×135×57

-

GX-MD1621

8-point input + 8-point output unit (PNP)

24 VDC, input 6 mA, output 0.5 A per point

52×200×69

3-tier connection for direct sensor wiring

GX-MD1622

4-Channel analog input unit

1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,

52×135×57

Resolution 1/6000, conversion time 4 ms (4 inputs)

GX-AD0471

2-Channel analog output unit

1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,

52×135×57

Resolution 1/6000, conversion time 2 ms (2 outputs)

GX-DA0271

1-Channel incremental encoder input (24V)

Open collector, up to 125 kHz

52×215×69

A, B, Z, 2 × Latch, Reset inputs

GX-EC0211

1-Channel incremental encoder input (line driver)

RS422 signal level, up to 1 MHz

52×215×69

A, B, Z, 2 × Latch, Reset inputs

GX-EC0241

8-point PNP input expansion unit

24 VDC, 6 mA per point

50×66×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-ID08-1

16-point PNP input expansion unit

24 VDC, 6 mA per point

50×94×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-ID16-1

8-point PNP output expansion unit

24 VDC, 0.5 A per point

50×66×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-OD08-1

16-point PNP output expansion unit

24 VDC, 0.5 A per point

50×94×50

Expansion unit for GX, DRT2 and CRT1 series

XWT-OD16-1

3 port branching uni

24 VDC, 3 x RJ45

90×25×78

EtherCAT junction box for T-branching

GX-JC03

6 port branching unit

24VDC, 6 x RJ45

90×48×78

EtherCAT junction box for star branching

GX-JC06
