OMRONSicherheitstechnik ANDERE SICHERHEITSTECHNIK A22Z-EG1 A22E0001B A22ZEG1 OMRON Abdeckung für A22E mit etikett EMERGENCY OFF

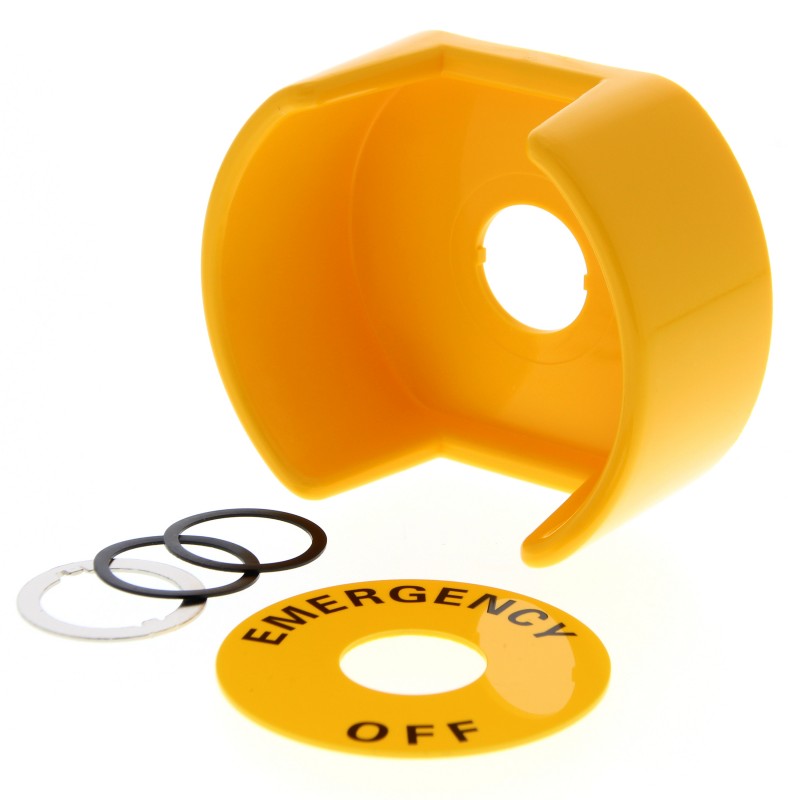

OMRON A22Z-EG1 A22E0001B A22ZEG1 - Bild 1

Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

A22Z-EG1 A22E0001B A22ZEG1 OMRON Abdeckung für A22E mit etikett EMERGENCY OFF

Artikel-Nr.: A22Z-EG1

Code: A22E0001B

Katalog-Zahl: A22ZEG1

Hersteller: OMRON

Beschreibung:

Abdeckung für A22E mit etikett EMERGENCY OFF
A22E-Abdeckung mit der Bezeichnung EMERGENCY OFF
Zubehör Not-Halt-Taster, Schutzkragen durchgängig, nach SEMI-S2, Aufdruck EMERGENCY OFF

Kategorien:

  • Niederspannungsschaltgeräte > Bezeichnungsschild für Befehlsgeräte
  • OMRON > Sicherheitstechnik > Andere Sicherheitstechnik

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

  • Mehr Infos
  • ETIM
  • Bewertungen
Garantie, Reparatur, Umtausch.

Stückpreis: 41,26 €

Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Preis berechnen nach der Menge

MengePreis

Standardlieferzeit: 2-3 Tage.

  • Die Lieferzeitangabe ist vorläufig, es kann dabei zu geringen Abweichungen kommen.

MEHR INFOS

  • Zwangsöffnungsmechanismus zum Öffnen des Stromkreises, wenn der Kontakt verschweißt
  • Mit Verriegelungsmechanismus zur Vermeidung von Bedienfehlern
  • Sperrhebel zum einfachen Montieren und Entfernen des Geräts
  • Verwenden Sie einen Ring mit 25 mm Durchm. zum Einbau in Schaltschrankaussparungen mit 25 mm Durchm.*
  • Bei einem Modell mit Überwachung des Sperrhebels mittels Zusatzkontakt kann die unsachgemäße Montage der Schaltereinheit erkannt werden. (A22NE-PD)

Zubehör

Ordering information

Commonto Screw Terminal Block types (A22E)/Push-in Plus Terminal Blocktypes (A22NE-P/A22NE-PD) (Order Separately)

ItemAppearanceClassificationRemarksOrder code
Legend Plates for
Emergency Stop		bxkeojprrp.png60-dia. black letters on yellowback-groundUsed in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-1
90-dia. black letters on yellowback-groundA22Z-3476-1
60-dia. black letters on yellowbackgroundCannot be used in combination with the Control Boxes.
Used in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-2
Hole Plugochojeuisb.pngRoundUsed for covering the panel cutouts for future panel expansion.
Black color.		A22Z-3530
Connectorsjcwpoegyyg.pngApplicable cable diameter7 to 9 dia.Plastic connector used to extenda cable from the Switch Box.A22Z-3500-1
9 to 11 dia.A22Z-3500-2
25-dia. Ringqasfabxcjg.png–Use when mounting to a panel with a 25-dia. hole.
Material: Rubber, Level of protection: IP65
2
Switches with an IP69K degree of protectiondo not support the 25-dia.
A22Z-R25
30-dia.
Resin Attachment		flvxdmfwne.png–Use when mounting to a panel with a 30-dia. hole.
A rubber washer (A22Z-R) is provided with the product.		A22Z-A30
Lock Ringtrlurbjwjo.png–The body is equipped with a Lock Ring.
This Lock Ring is used when a more secure lock feature is
-required.		A22Z-3360
Tightening Tool–Used for tightening the mounting ring from the back side of the
panel, and for removing the cap in lighted models.		A22Z-3905
E-stop Shroud for EMO,
Yellow		huivcwsyyr.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1
E-stop Shroud for EMO,
Yellow		mjzwkhjdkt.pngLegend plate for EMERGENCY OFF is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMO indication.
(for -emergency off)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10
E-stop Shroud for EMS,
White		zhvlxygjnf.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY STOP come as a set. Use with an A22E
Emergency Stop Switch. (for emergency stop)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1-W
E-stop Shroud for EMS,
White		ufgafvwlzr.pngLegend plate for EMERGENCY STOP is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMS indication.
(for emergency stop)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10-W
E-stop Shroud, Yellowiimlbnxhnb.pngSpacer Unit is not included.SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI
S2-compatible Shroud. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.

Use together with an A22E Emergency Stop Switch.		A22Z-EG2
One Spacer Unit is included.A22Z-EG21
Two Spacer Units are included.A22Z-EG22
E-stop Shroud for EMO,
Yellow		owdidyjnbl.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG3
Rubber Packingdiczuklmcs.png–Used together with accessories.
Contains 10 packings.		A22Z-R
Note:
  1. Accessories forA22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and onelock ring
  2. Accessories for A22Z-EG10: one rubber packing and one lock ring(without label)

ETIM for 224501 Niederspannungsschaltgeräte (EC000624)

MerkmalsnameForm (EF000051)
Merkmalswertoval
MerkmalsnameAufdruck ISO-Symbole (EF006094)
Merkmalswertsonstige
MerkmalsnameSprache des Aufdrucks (EF015922)
MerkmalswertEnglisch
MerkmalsnameWörtlicher Aufdruck (EF015918)
Merkmalswertsonstige
MerkmalsnameFarbe (EF000007)
Merkmalswertgelb
MerkmalsnameBreite (EF000008)
Merkmalswert75 mm
MerkmalsnameHöhe (EF000040)
Merkmalswert90 mm
