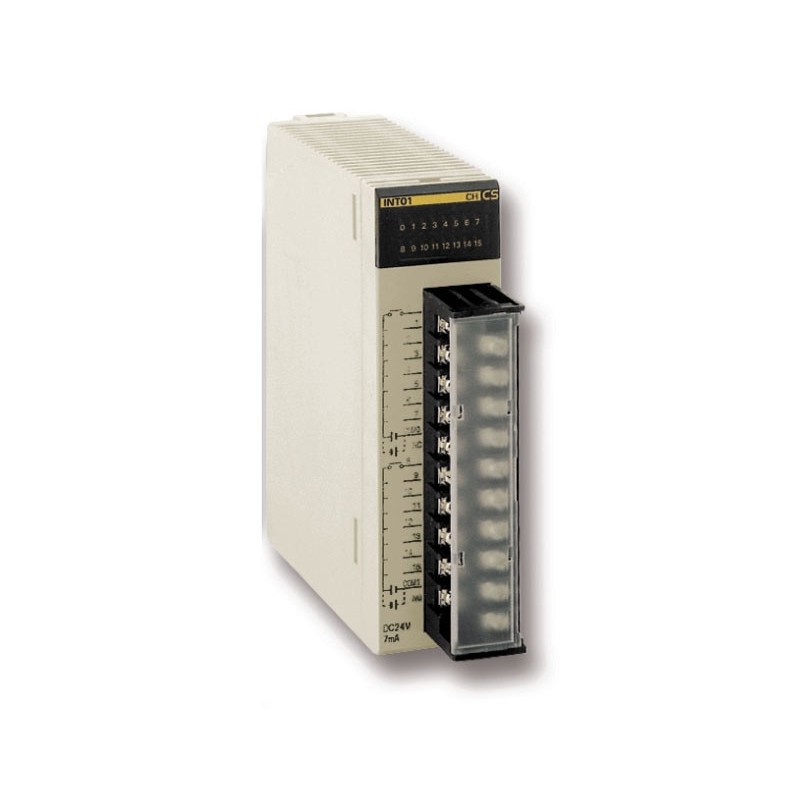

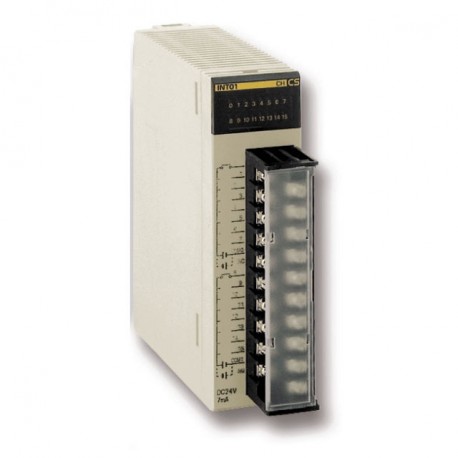

CS1W-INT01 CS1W0124C CS1WINT01 OMRON Modul, 16 Eingänge interrupt Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

CS1W-INT01 CS1W0124C CS1WINT01 OMRON Modul, 16 Eingänge interrupt

CS1W-INT01

CS1W0124C

CS1WINT01

OMRON

Modul, 16 Eingänge interrupt

Modul 16 Interrupt-Eingänge

Mehr Infos


Industriesteuerungen SPS > SPS-Digitales Ein-/Ausgangs-Modul

Steuerungssysteme > CS1

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

Gesamtpreis: $1,089.78
Stückpreis: $1,089.78
Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Bestseller

▲

Mehr Infos

▲


Spezifikationen & Bestellinfo

Ordering information

Points

Type

Rated voltage

Rated current

Remarks

Connection type

Order code1

16

AC or DC input

120 VAC or VDC

10 mA

-

M3

CS1W-IA111

16

AC input

240 VAC

10 mA

-

M3

CS1W-IA211

16

DC input

24 VDC

7 mA

-

M3

CS1W-ID211

16

DC input

24 VDC

7 mA

Inputs start interrupt tasks in PLC program

M3

CS1W-INT01

16

DC input

24 VDC

7 mA

Latches pulses down to 50 µs pulse width

M3

CS1W-IDP01

32

DC input

24 VDC

6 mA

-

1 × 40 pt Fujitsu

CS1W-ID231

64

DC input

24 VDC

6 mA

-

2 × 40 pt Fujitsu

CS1W-ID261

96

DC input

24 VDC

5 mA

-

2 × 56 pt Fujitsu

CS1W-ID291

8

Triac output

250 VAC

1.2 A

-

M3

CS1W-OA201

16

Triac output

250 VAC

0.5 A

-

M3

CS1W-OA211

8

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC201

16

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC211

16

DC output (sink)

12 to 24 VDC

0.5 A

-

M3

CS1W-OD211

16

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

M3

CS1W-OD212

32

DC output (sink)

12 to 24 VDC

0.5 A

-

1 × 40 pt Fujitsu

CS1W-OD231

32

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

1 × 40 pt Fujitsu

CS1W-OD232

64

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-OD261

64

DC output (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-OD262

96

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD291

96

DC output (source)

24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD292

32+32

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-MD261

32+32

DC in+out (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-MD262

48+48

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD291

48+48

DC in+out (source)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD292

Note: All Digital I/O units are designated as Basic I/O units.

Accessories

Description

Connection type

Order code

Connection cable between I/O terminal block and I/O unit with 40-pt Fujitsu connector ( _ _ _ = length in cm)

Fujitsu (40pt)

XW2Z-___B

I/O terminal block for input unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C3

Note: For I/O Cables and Terminal Blocks, see page

1.C200H I/O units can also be mounted, except on CS1D systems.

Zubehör

I/O cables and terminal blocks

Ordering information

I/O cables

Shape

PLC connection

Terminal connection

Length in cm

Wiring

Order code

30

50

75

100

150

200

250

300

400

500


FCN24

MIL20

-

⬛

-

⬛

-

⬛

-

⬛

-

-

Straight

XW2Z-[....]AD-L


Open ends

-

-

-

⬛

-

⬛

-

⬛

-

-

n. a.

XW2Z-[....]AL-L


FCN40

MIL20 × 2

-

-

-

⬛

⬛

⬛

-

⬛

⬛

⬛

Straight

XW2Z-[....]BH-L01

Reverse

XW2Z-[....]BH-L02


MIL40

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

Straight

XW2Z-[....]BF-L


Open ends

-

-

-

⬛

-

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]BN-L


FCN56

MIL20 × 3

-

-

-

-

⬛

⬛

-

⬛

-

-

Straight

XW2Z-[....]CJ-L01

Reverse

XW2Z-[....]CJ-L02


MIL20 + MIL40

-

-

-

-

⬛

⬛

-

-

-

-

Straight

XW2Z-[....]CK-L01

Reverse

XW2Z-[....]CK-L02


MIL60

-

-

-

⬛

-

⬛

-

⬛

-

-

Straight

XW2Z-[....]CG-L


MIL20

MIL20

-

⬛

-

⬛

-

⬛

-

-

-

Straight

XW2Z-[....]DD-L


Open ends

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]DL-L


Fork terminals

-

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

n. a.

XW2Z-[....]DM-L


MIL34

MIL34

-

-

-

-

-

⬛

-

-

-

-

Straight

XW2Z-[....]EE-L


MIL40

MIL20 × 2

-

-

⬛

⬛

-

⬛

-

⬛

-

⬛

Reverse

XW2Z-[....]FH-L01

Straight

XW2Z-[....]FH-L02


MIL40

⬛

⬛

-

⬛

⬛

⬛

-

⬛

-

⬛

Straight

XW2Z-[....]FF-L


Open ends

-

-

-

⬛

⬛

⬛

⬛

⬛

-

⬛

n. a.

XW2Z-[....]FN-L

Note: For [....] fill in the 4-digit length in cm

I/O cables XW2Z

XW2Z-_AD-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

24-pin FCN Connector

20-pin MIL Connector

Straight

-

⬛

-

-

-

-

-

-

-

-

XW2Z-0050AD-L

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100AD-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200AD-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300AD-L


XW2Z-_AL-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

24-pin FCN

Loose Wires

Straight

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100AL-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200AL-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300AL-L


XW2Z-_BH-L01

PLC connection

Terminal connection

Wiring

Length in cm (L1)

Length in cm (L2)

Order code

100

150

200

300

400

500

75

125

175

275

375

475

40-pin FCN

Two 20-pin MIL

Straight

⬛

-

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0100BH-L01

-

⬛

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0150BH-L01

-

-

⬛

-

-

-

-

-

⬛

-

-

-

XW2Z-0200BH-L01

-

-

-

⬛

-

-

-

-

-

⬛

-

-

XW2Z-0300BH-L01

-

-

-

-

⬛

-

-

-

-

-

⬛

-

XW2Z-0400BH-L01

-

-

-

-

-

⬛

-

-

-

-

-

⬛

XW2Z-0500BH-L01


XW2Z-_BH-L02

PLC connection

Terminal connection

Wiring

Length in cm (L1)

Length in cm (L2)

Order code

100

150

200

300

400

500

75

125

175

275

375

475

40-pin FCN

Two 20-pin MIL

Reverse

⬛

-

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0100BH-L02

-

⬛

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0150BH-L02

-

-

⬛

-

-

-

-

-

⬛

-

-

-

XW2Z-0200BH-L02

-

-

-

⬛

-

-

-

-

-

⬛

-

-

XW2Z-0300BH-L02

-

-

-

-

⬛

-

-

-

-

-

⬛

-

XW2Z-0400BH-L02

-

-

-

-

-

⬛

-

-

-

-

-

⬛

XW2Z-0500BH-L02


XW2Z-_BF-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

50

75

100

150

200

250

300

400

500

40-pin FCN

40-pin MIL

Straight

-

⬛

-

-

-

-

-

-

-

-

XW2Z-0050BF-L

-

-

-

⬛

-

-

-

-

-

-

XW2Z-0100BF-L

-

-

-

-

⬛

-

-

-

-

-

XW2Z-0150BF-L

-

-

-

-

-

⬛

-

-

-

-

XW2Z-0200BF-L

-

-

-

-

-

-

-

⬛

-

-

XW2Z-0300BF-L

-

-

-

-

-

-

-

-

-

⬛

XW2Z-0500BF-L


XW2Z-_BN-L

PLC connection

Terminal connection

Wiring

Length in cm (L)

Order code

30

Datasheet - PDF

▲
Titel: Größe: Typ:
PDF CATALOGO OMRON AUTOMATION EN.pdf 19 Mbytes
PDF KATALOG OMRON DE.pdf 68 Mbytes
