Max. Digital I/O points | Program capacity | Data memory capacity | Logic execution speed | Max. I/O units | Additional functions | Order code |
---|
5120 | 250K steps | 448K words | 20 ns | 80 | - | CS1H-CPU67H |
71 | Supports duplex power supply and I/O hot-swapping | CS1D-CPU67S |
68 | CPU for full dual-redundancy | CS1D-CPU67H |
CPU for full dual-redundancy, with loop control board | CS1D-CPU67P |
120K steps | 256K words | 80 | - | CS1H-CPU66H |
60K steps | 128K words | 80 | - | CS1H-CPU65H |
71 | Supports duplex power supply and I/O hot-swapping | CS1D-CPU65S |
68 | CPU for full dual-redundancy | CS1D-CPU65H |
CPU for full dual-redundancy, with loop control board | CS1D-CPU65P |
30K steps | 64K words | 80 | - | CS1H-CPU64H |
20K steps | - | CS1H-CPU63H |
60K steps | 40 ns | - | CS1G-CPU45H |
1280 | 30K steps | 40 | - | CS1G-CPU44H |
35 | Supports duplex power supply and I/O hot-swapping | CS1D-CPU44S |
960 | 20K steps | 30 | - | CS1G-CPU43H |
10K steps | - | CS1G-CPU42H |
26 | Supports duplex power supply and I/O hot-swapping | CS1D-CPU42S |
Description | Remarks | Order code |
---|
High-speed data collection and storage unit, with CF card slot and Ethernet port | CPU bus unit | CS1W-SPU01-V2 |
High-speed data collection and storage unit, with CF card slot and 2 Ethernet ports | CPU bus unit | CS1W-SPU02-V2 |
Duplex unit, required for CS1D-CPU6_H systems | - | CS1D-DPL01 |
Serial communication option board, 2 x RS-232C | - | CS1W-SCB21-V1 |
Serial communication option board, 1 x RS-232C + 1 x RS422/RS-485 | - | CS1W-SCB41-V1 |
Loop control option board | 50 control blocks max. | CS1W-LCB01 |

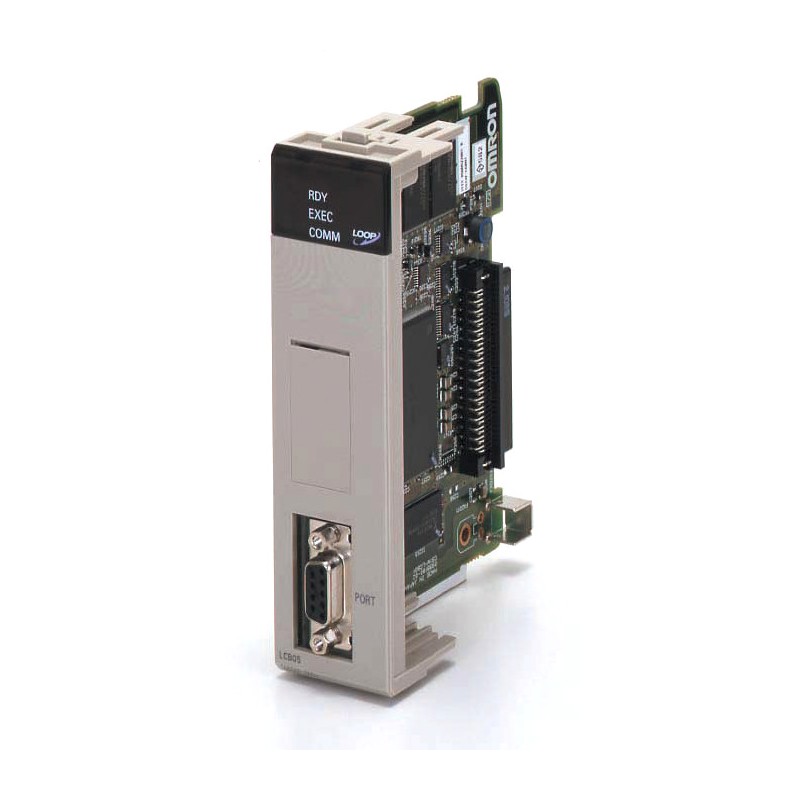

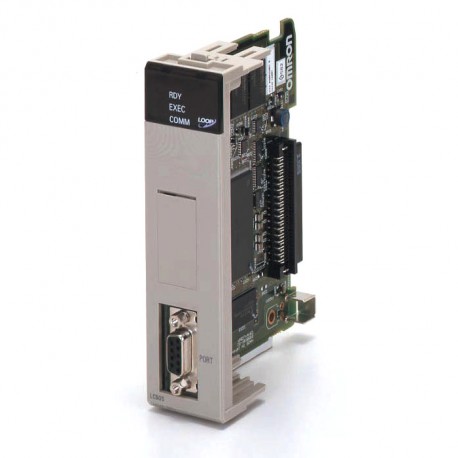

Loop control option board | 300 control blocks max. | CS1W-LCB05 |
Replacement battery set, for all CS1 CPUs | - | CS1W-BAT01 |
Compact Flash memory card, 128 MB, for all models (not required for operation) | Industrial grade | HMC-EF183 |
Compact Flash memory card, 256 MB, for all models (not required for operation) | Industrial grade | HMC-EF283 |
Compact Flash memory card, 512 MB, for all models (not required for operation) | Industrial grade | HMC-EF583 |
Compact Flash PC-Card adapter | - | HMC-AP001 |
CX-One, integrated software for programming and configuration of all Omron control system components | - | CX-ONE-AL__C-E |
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port | length: 2.0 m | CS1W-CN226 |
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port | length: 6.0 m | CS1W-CN626 |
USB to serial conversion cable | - | CS1W-CIF31 |
