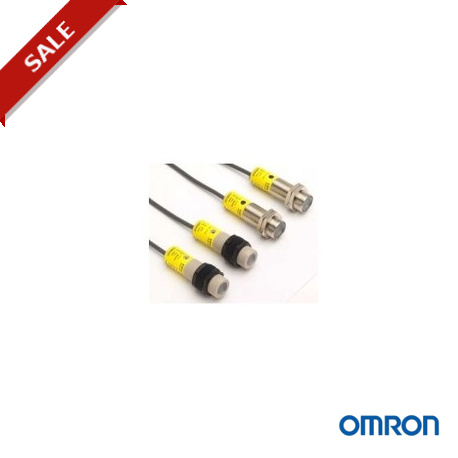

E3FS-10B4-M 2M 130855 OMRON Sicherheitstechnik Einstrahl-Sicherheitslichtschranke Typ 2 Set Sender + Empfäng..

PNSPO! EOMG-001406 MC, 18-Apr-01
Safety Photoelectric Switch E3FS-Family
Safety Design for Category 2.
Suitable for Detecting Human Bodies in Hazardous Area.
Main features
The E3FS is a Type 2 Safety Single Beam intended to be used with the control unit F3SP- U1P-TGR for the control system of a machine to category 2, 1 or B as defined in the European standard EN 954-1.
Compliance with Machinery directive: No. 98/37/EC, EMC Directive: No. 89/336/EEC, EN 61496-1 (06/98) (Type 2 ESPE), and IEC61496-2 (1997) (Type 2
Active Optoelectronic Protection device).
Approved by TÜV Product Service (Notified Body) as Type 2 ESPE (Electro-Sensitive-Protective- Equipment), Type 2 AOPD (Active Optoelectronic Protection device) and CE marking.
Pursuing safety with high level of safety design and FMEA.
System configuration of up to four units is possible.
With the control unit F3SP-U1P-TGR, two different muting functions can be selected for each set of E3FS separately.
Compact and space-saving (M18 DIN-sized threaded cylindrical housing, axial type)
Housing materials: plastic and nickel brass
Connection: Pre-wired and M12 plug
High enclosure ratings (IP67)
Sensing distance 10m
MC, OMG-PE
11.04.2001 page 1 of 1
