- LED, Glimm- oder Glühlampe
- Einschnappmontage
- Geringe Montagetiefe (weniger als 28,5 ab Rückseite Schalttafel)
- Hohe Zuverlässigkeit, IP65
- Zugelassen nach UL und CSA, entspricht EN60947-5-1
Spezifikationen & Bestellinfo
Ordering information
Pushbutton
Type | Display color | Order code |
---|
IP65 oil-resistant |
---|
Rectangular | Square | Round |
---|
LED Incandescent lamp | Red | A165L-JR | A165L-AR | A165L-TR |
Yellow | A165L-JY | A165L-AY | A165L-TY |
Pure yellow | A165L-JPY | A165L-APY | A165L-TPY |
White | A165L-JW | A165L-AW | A165L-TW |
Blue | A165L-JA | A165L-AA | A165L-TA |
LED Incandescent lamp | Green | A165L-JGY | A165L-AGY | A165L-TGY |
Green | A165L-JG | A165L-AG | A165L-TG |
Lamp
Type | Color | Order code |
---|
Operating voltage |
---|
5 VDC | 12 VDC | 24 VDC |
---|
LED | Red | A16-5DSR | A16-12DSR | A16-24DSR |
Yellow | A16-5DSY | A16-12DSY | A16-24DSY |
Green | A16-5DSG | A16-12DSG | A16-24DSG |
White | A16-5DSW | A16-12DSW | A16-24DSW |
Blue | A16-5DA | A16-12DA | A16-24DA |
Type | 5 VAC/VDC | 12 VAC/VDC | 24 VAC/VDC |
Incandescent lamp | A16-5 | A16-12 | A16-24 |
Case
Classification | Order code |
---|
IP65 oil-resistant | Rectangular | A165-CJM |
Square | A165-CAM |
Round | A165-CTM |
Socket
Classification | Order code |
---|

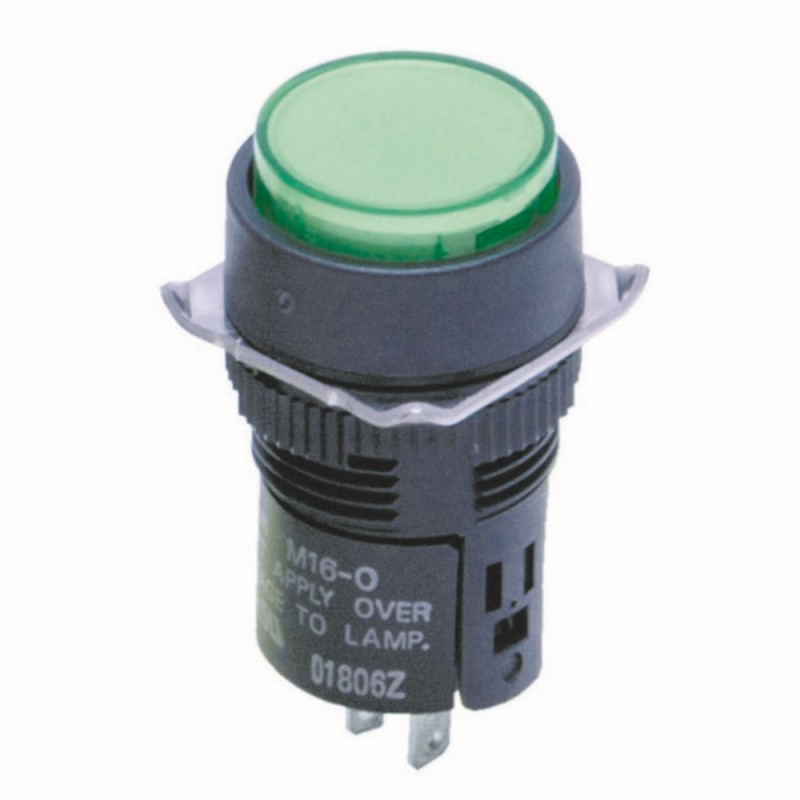

Solder terminals | M16-0 |
PCB terminals | M16-0P |
Screw-less clamp | M16-S |
Solder terminals | Voltage-reduction lighting | 100 V | M16-T1 |
Screw-less clamp | 100 V | M16-T1-S |
200 V | M16-T2-S |
Specifications
Allowable operating frequency | Mechanical | Momentary operation: 120 operations/minute max., alternate operation: 60 operations/minute max. |
Electrical | 20 operations/minute max. |
Durability | Mechanical | Momentary operation: 2,000,000 operations min., alternate operation: 200,000 operations min. |
Electrical | 100,000 operations min. |
Degree of contamination | 3 (IEC947-5-1) |
Ambient temperature | Operating: -10 to 55°C (with no icing or condensation) Storage: -25 to 65°C (with no icing or condensation) |
Weight | Approx. 10 g (in the case of a lighted DPDT switch with solder terminals) |
Size in mm | Round/square: 18Hx18Wx28.5D rectangular: 18Hx24Wx28.5D |
Agency | Standards | File number |
---|
UL, cUL | UL508 | E41515 |
Ratings
Superbright LED |
---|
Rated voltage | Rated current | Operating voltage | Built-in limiting resistance |
---|
5 VDC | 30 mA (15 mA) | 5 VDC ±5% | 33 Ω (68 Ω) |
12 VDC | 15 mA | 12 VDC ±5% | 270 Ω (560 Ω) |
24 VDC | 10 mA | 24 VDC ±5% | 1,600 Ω (2,000 Ω) |
Incandescent lamp |
---|
Rated voltage | Rated current | Operating voltage |
---|
6 VAC/VDC | 60 mA | 5 VAC/VDC |
14 VAC/VDC | 40 mA | 12 VAC/VDC |
28 VAC/VDC | 24 mA | 24 VAC/VDC |
