F3W-E032A8 5M F3W 1506G 242190 OMRON Miniatur-Sensor-Entnahme 300mm PNP 3-Achsen-Kabel 5m
F3W-E032A8 5M
F3W 1506G
F3WE032A85M
OMRON
Kommissionierung-sensor miniatur-300mm PNP, 3-achsen-kabel 5m
Kommissionierung Miniatursensor 300mm PNP 3-Achsen-Kabel 5m
Erweiterte Sensoren > Andere Erweiterte Sensoren
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Mehr Infos
▲- Punktdurchmesser reichen von 190 µm bis zu 4 µm und ermöglichen das Scannen extrem kleiner Profile
- Kleine Punktdurchmesser bis zu 9 µm ermöglichen die Messung extrem kleiner Profile
- Konstanter Punktdurchmesser im gesamten Messbereich
- Stift- und 90°-Winkelausführungen mit schlankem Formfaktor für alle Platzverhältnisse
- Ansprechzeiten von bis zu 20 µs ermöglichen Hochgeschwindigkeitsabtastung in Bewegung
- Eine hohe Auflösung von 0,25 µm ermöglicht die Messung von Haarlinienmustern oder unregelmäßigen Oberflächen
- Linearität von bis zu ±0,3 μA unabhängig vom Materialtyp – daher ist kein Tuning erforderlich
- Die hervorragende Winkelkompensation von ±25 ermöglicht die Messung von runden oder geneigten Oberflächen
- Einfache Integration der Maschinensteuerung dank verfügbarer DLL-Dateien
Spezifikationen & Bestellinfo
Ordering information

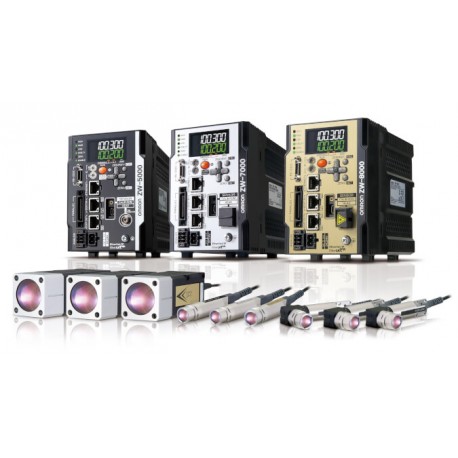

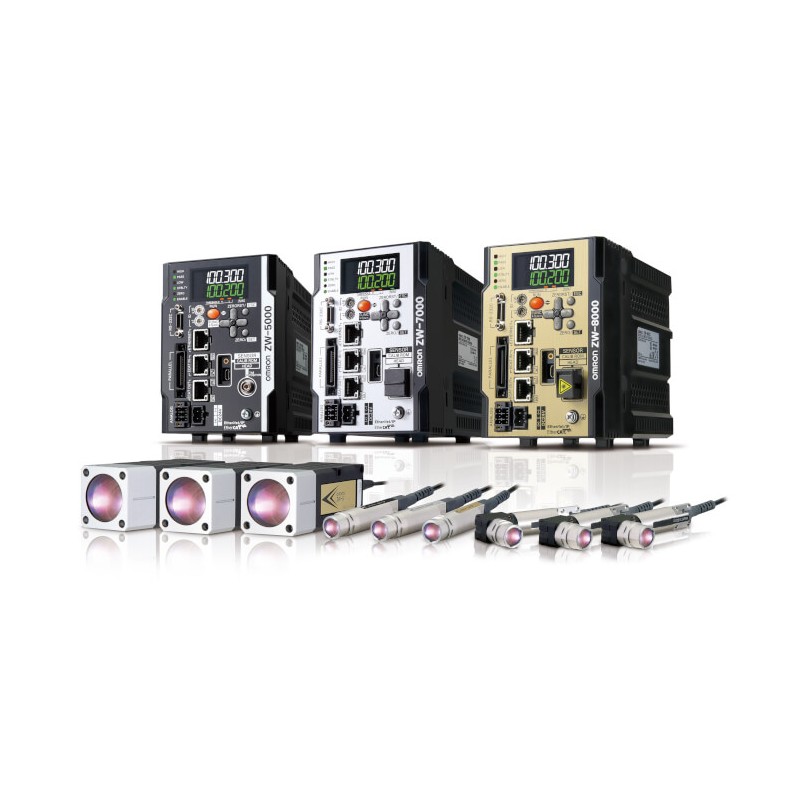

ZW-8000
SensorHead
| Appearance | Type | Measuring range | Spot diameter | Static resolution 2 Values when the SensorController ZW-8000T is used. | Cable length | Order code |
|---|---|---|---|---|---|---|
 | Square-shaped straight | 10±0.5 mm | 4 µm dia. | 0.25 µm | 2 m | ZW-S8010 2M |
| 0.3 m | ZW-S8010 0.3M | |||||
| 20±1 mm | 7 µm dia. | 2 m | ZW-S8020 2M | |||
| 0.3 m | ZW-S8020 0.3M | |||||
| 30±2 mm | 10 µm dia. | 2 m | ZW-S8030 2M | |||
| 0.3 m | ZW-S8030 0.3M | |||||
 | Pen-shaped straight | 7±0.3 mm | 7 µm dia. | 2 m | ZW-SP8007 2M | |
| 0.3 m | ZW-SP8007 0.3M | |||||
| 10±0.7 mm | 10 µm dia. | 2 m | ZW-SP8010 2M | |||
| 0.3 m | ZW-SP8010 0.3M | |||||
 | Pen-shaped right angle | 7±0.3 mm | 8 µm dia. | 2 m | ZW-SPR8007 2M | |
| 0.3 m | ZW-SPR8007 0.3M | |||||
| 10±0.7 mm | 11 µm dia. | 2 m | ZW-SPR8010 2M | |||
| 0.3 m | ZW-SPR8010 0.3M |
Sensor Controller withEtherCAT
| Appearance | Power supply | Output type | Order code |
|---|---|---|---|
 | 24 VDC | NPN/PNP | ZW-8000T |
Cable
| Appearance | Item | Cable length | Order code |
|---|---|---|---|
 | Extension Fiber Cable (fromSensor Head to Sensor Controller), (Fiber Adapter ZW-XFCS is included) Note: ExtensionFiber Cable ZW-XF80⬜⬜R can be used with the firmwareversion 3.000 or later. If you have an old version Sensor Controller,register as a Sysmac member and download the latest firmware and toolsto update your Sensor Controller. Refer to the Sysmac member registrationsheet that is enclosed with the Sensor Controller for details onmember registration and firmware download. | 2 m | ZW-XF8002R |
| 5 m | ZW-XF8005R | ||
| 10 m | ZW-XF8010R | ||
| 20 m | ZW-XF8020R | ||
| 30 m | ZW-XF8030R | ||
 | Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable) | – | ZW-XFCS |
ZW-7000
SensorHead
| Appearance | Type | Measuring range | Spot diameter | Static resolution 2 Values when the SensorController ZW-7000T is used. | Cable length | Order code |
|---|---|---|---|---|---|---|
 | Square-shaped straight | 10±0.5 mm | 50 µm dia. | 0.25 µm | 2 m | ZW-S7010 2M |
| 0.3 m | ZW-S7010 0.3M | |||||
| 20±1 mm | 70 µm dia. | 2 m | ZW-S7020 2M | |||
| 0.3 m | ZW-S7020 0.3M | |||||
| 30±2 mm | 100 µm dia. | 2 m | ZW-S7030 2M | |||
| 0.3 m | ZW-S7030 0.3M | |||||
| 40±3 mm | 120 µm dia. | 2m | ZW-S7040 2M | |||
| 0.3m | ZW-S7040 0.3M | |||||
 | Pen-shaped straight | 7±0.3 mm | 130 µm dia. | 2 m | ZW-SP7007 2M | |
| 0.3 m | ZW-SP7007 0.3M | |||||
| 10±0.7 mm | 170 µm dia. | 2 m | ZW-SP7010 2M | |||
| 0.3 m | ZW-SP7010 0.3M | |||||
 | Pen-shaped right angle | 7±0.3 mm | 150 µm dia. | 2 m | ZW-SPR7007 2M | |
| 0.3 m | ZW-SPR7007 0.3M | |||||
| 10±0.7 mm | 190 µm dia. | 2 m | ZW-SPR7010 2M | |||
| 0.3 m | ZW-SPR7010 0.3M |
Sensor Controller withEtherCAT
| Appearance | Power supply | Output type | Order code |
|---|---|---|---|
 | 24 VDC | NPN/PNP | ZW-7000T |
Cable
| Appearance | Item | Cable length | Order code |
|---|---|---|---|
 | Extension Fiber Cable (fromSensor Head to Sensor Controller), (Fiber Adapter ZW-XFCM is included) Note: Cablesof 10, 20, and 30 m can be used with the firmware version 2.100or later. If you have an old version Sensor Controller, registeras a Sysmac member and download the latest firmware and tools toupdate your Sensor Controller. Refer to the Sysmac member registrationsheet that is enclosed with the Sensor Controller for details onmember registration and firmware download. | 2 m | ZW-XF7002R |
| 5 m | ZW-XF7005R | ||
| 10 m | ZW-XF7010R | ||
| 20 m | ZW-XF7020R | ||
| 30 m | ZW-XF7030R | ||
 | Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable) | – | ZW-XFCM |
ZW-5000
SensorHead
| Appearance | Type | Measuring range | Spot diameter | Static resolution 2 Values when the SensorController ZW-5000T is used. | Cable length | Order code |
|---|---|---|---|---|---|---|
 | Square-shaped straight | 10±0.5 mm | 9 µm dia. | 0.25 µm | 2 m | ZW-S5010 2M |
| 0.3 m | ZW-S5010 0.3M | |||||
| 20±1 mm | 13 µm dia. | 2 m | ZW-S5020 2M | |||
| 0.3 m | ZW-S5020 0.3M | |||||
| 30±2 mm | 18 µm dia. | 2 m | ZW-S5030 2M | |||
| 0.3 m | ZW-S5030 0.3M | |||||
| Pen-shaped straight | 7±0.3 mm | 13 µm dia. | 2 m | ZW-SP5007 2M | |
| 0.3 m | ZW-SP5007 0.3M | |||||
| 10±0.7 mm | 18 µm dia. | 2 m | ZW-SP5010 2M | |||
| 0.3 m | ZW-SP5010 0.3M | |||||
| Pen-shaped right angle | 7±0.3 mm | 15 µm dia. | 2 m | ZW-SPR5007 2M | |
| 0.3 m | ZW-SPR5007 0.3M | |||||
| 10±0.7 mm | 20 µm dia. | 2 m | ZW-SPR5010 2M | |||
| 0.3 m | ZW-SPR5010 0.3M |
Sensor Controller withEtherCAT
| Appearance | Power supply | Output type | Order code |
|---|---|---|---|
 | 24 VDC | NPN/PNP | ZW-5000T |
Cable
| Appearance | Item | Cable length | Order code |
|---|---|---|---|
 | Extension Fiber Cable (fromSensor Head to Sensor Controller), (Fiber Adapter ZW-XFC2 is included) Note: ExtensionFiber Cable ZW-XF50⬜⬜R can be used with the firmwareversion 2.100 or later. If you have an old version Sensor Controller,register as a Sysmac member and download the latest firmware and toolsto update your Sensor Controller. Refer to the Sysmac member registrationsheet that is enclosed with the Sensor Controller for details onmember registration and firmware download. | 2 m | ZW-XF5002R |
| 5 m | ZW-XF5005R | ||
| 10 m | ZW-XF5010R | ||
| 20 m | ZW-XF5020R | ||
| 30 m | ZW-XF5030R | ||
 | Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable) | – | ZW-XFC2 |
Common cables
| Appearance | Item | Cable length | Order code |
|---|---|---|---|
 | Parallel cable for ZW-8000T/7000T/5000T 32-pole(included with Sensor Controller ZW-8000T/7000T/5000T) | 2 m | ZW-XCP2E |
 | RS-232C Cable for personal computer | 2 m | ZW-XRS2 |
 | RS-232C Cable for PLC/programmable terminal | 2 m | ZW-XPT2 |
Recommended EtherCATCommunications Cables
Use Straight STP (shielded twisted-pair)cable of category 5 or higher with double shielding (braiding andaluminum foil tape) for EtherCAT.
Cablewith Connectors
| Item | Appearance | Recommended manufacturer | Cable length(m) 2 Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available. Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available | Order code |
|---|---|---|---|---|
Standard type Cable with Connectors on Both Ends(RJ45/RJ45)Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH 2 The lineupfeatures Low Smoke Zero Halogen cables for in-cabinet use and PURcables for out-of-cabinet use. Cable color: Yellow 2 Cablescolors are available in blue, yellow, or Green |  | OMRON | 0.3 | XS6W-6LSZH8SS30CM-Y |
| 0.5 | XS6W-6LSZH8SS50CM-Y | |||
| 1 | XS6W-6LSZH8SS100CM-Y | |||
| 2 | XS6W-6LSZH8SS200CM-Y | |||
| 3 | XS6W-6LSZH8SS300CM-Y | |||
| 5 | XS6W-6LSZH8SS500CM-Y | |||
Rugged type Cable with Connectors on Both Ends(RJ45/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable |  | OMRON | 0.3 | XS5W-T421-AMD-K |
| 0.5 | XS5W-T421-BMD-K | |||
| 1 | XS5W-T421-CMD-K | |||
| 2 | XS5W-T421-DMD-K | |||
| 5 | XS5W-T421-GMD-K | |||
| 10 | XS5W-T421-JMD-K | |||
Rugged type Cable with Connectors on Both Ends(M12 Straight/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable |  | OMRON | 0.3 | XS5W-T421-AMC-K |
| 0.5 | XS5W-T421-BMC-K | |||
| 1 | XS5W-T421-CMC-K | |||
| 2 | XS5W-T421-DMC-K | |||
| 5 | XS5W-T421-GMC-K | |||
| 10 | XS5W-T421-JMC-K | |||
Rugged type Cable with Connectors on Both Ends(M12 Right-angle/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable |  | OMRON | 0.3 | XS5W-T422-AMC-K |
| 0.5 | XS5W-T422-BMC-K | |||
| 1 | XS5W-T422-CMC-K | |||
| 2 | XS5W-T422-DMC-K | |||
| 5 | XS5W-T422-GMC-K | |||
| 10 | XS5W-T422-JMC-K |
For details, refer to Cat.No.G019.
Cables/Connectors
WireGauge and Number of Pairs: AWG24, 4-pair Cable
| Item | Appearance | Recommended manufacturer | Order code |
|---|---|---|---|
| Cables | – | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 × 4P CP 2 Werecommend to use above cable and connector together. |
| – | Kuramo Electric Co. | KETH-SB 2 Werecommend to use above cable and connector together. | |
| – | SWCC Showa Cable Systems Co. | FAE-5004 2 Werecommend to use above cable and connector together. | |
| RJ45 Connectors | – | Panduit Corporation | MPS588-C 2 Werecommend to use above cable and connector together. |
Wire Gauge and Numberof Pairs: AWG22, 2-pair Cable
| Item | Appearance | Recommended manufacturer | Order code |
|---|---|---|---|
| Cables | – | Kuramo Electric Co. | KETH-PSB-OMR 2 We recommendto use above cable and connector together. |
| – | JMACS Japan Co.,Ltd. | PNET/B 2 We recommendto use above cable and connector together. | |
| RJ45 Assembly Connector |  | OMRON | XS6G-T421-1 2 We recommendto use above cable and connector together. |
Connect both ends of cable shielded wiresto the connector hoods.
Industrialswitching hubs for Ethernet
| Appearance | Number of ports | Failure detection | Current consumption | Order code |
|---|---|---|---|---|
 | 3 | None | 0.22 A | W4S1-03B |
 | 5 | None | 0.22 A | W4S1-05B |
| Supported | W4S1-05C |
Industrial switching hubs cannot be usedfor EtherCAT.
EtherCAT junctionslaves
| Appearance | Number of ports | Power supply voltage | Current consumption | Order code |
|---|---|---|---|---|
 | 3 | 20.4 to 28.8 VDC (24 VDC -15 to 20%) | 0.08A | GX-JC03 |
 | 6 | 0.17A | GX-JC06 |
- Please do not connectEtherCAT junction slave with OMRON position control unit, ModelCJ1W-NC⬜81/⬜82.
- EtherCAT junction slaves cannot be used for EtherNet/IPTMandEthernet.
Automation SoftwareSysmac Studio
Please purchase a DVD and required numberof licenses the first time you purchase the Sysmac Studio. DVDsand licenses are available individually.
Each model of licensesdoes not include DVD.
| Item | Specifications | Number of licenses | Media | Standards | Order code |
|---|---|---|---|---|---|
Sysmac Studio StandardEdition Ver.1⬜⬜ 2 ZW-8000/7000/5000 is supportedby Sysmac Studio version 1.22 or higher. | The Sysmac Studio is thesoftware that provides an integrated environment for setting, programming, debuggingand maintenance of machine automation controllers including theNJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave,and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) Thissoftware provides functions of the Measurement Sensor Edition. Referto your OMRON website for details. | – (Media only) | DVD | – | SYSMAC-SE200D |
| 1 license 2 Multiple licenses are availablefor the Sysmac Studio (3, 10, 30, or 50 licenses). | – | – | SYSMAC-SE201L | ||
Sysmac Studio MeasurementSensor Edition Ver.1.⬜⬜ | Sysmac Studio MeasurementSensor Edition is a limited license that provides selected functionsrequired for ZW-series Displacement Sensor settings. Becausethis product is a license only, you need the Sysmac Standard EditionDVD media to install it. | 1 license | – | – | SYSMAC-ME001L |
| 3 license | – | – | SYSMAC-ME003L |
Fiber Cleaner
| Item | Recommended manufacturer | Applicable Model | Contacts | Order code | ||
|---|---|---|---|---|---|---|
| ZW-8000 | ZW-7000 | ZW-5000 | ||||
| Fiber Connector Cleaner 2 Place orders inunits of boxes (contacting 10 units). | OMRON | Yes | Yes | Yes | OMRON | ZW-XCL |
| NEOCLEAN-M | NTT Advanced Technology Corporation | No | Yes | No | 2 Contacts [Request for an Estimate] http://www.ntt-at.com/product/optical_cleaner/Distributors.html [Request for Information] NTT Advanced Technology Corporation Muza Kawasaki Central Tower, 1310 Omiya-cho Saiwai-ku, Kawasaki-shi, Kanagawa, 212-0014, Japan TEL: +81 44 589 5894 http://www.ntt-at.com/product/optical_cleaner/ | ATC-NE-M1 |
| OPTIPOP R1 | Yes (Sensor Head only) | No | Yes (Sensor Head only) | ATC-RE-01 | ||
