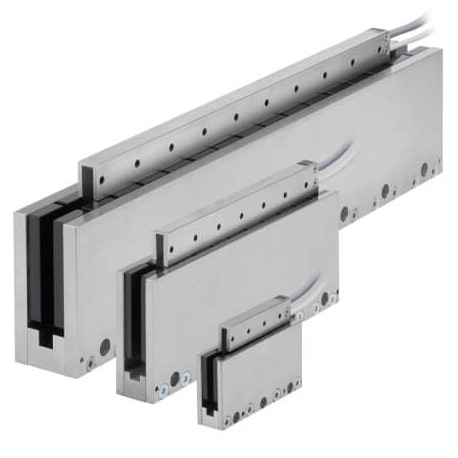

JZSP-CLL00-01-E 171452 OMRON Kabel-Encoder Linear-Konverter-serie linearmotor 1m Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

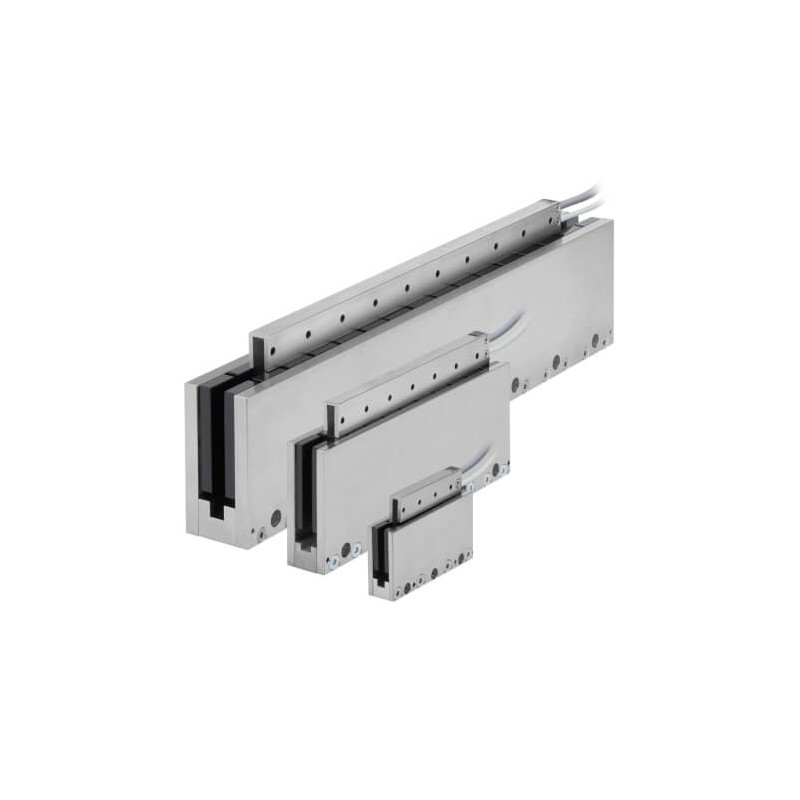

JZSP-CLL00-01-E 171452 OMRON Kabel-Encoder Linear-Konverter-serie linearmotor 1m

JZSP-CLL00-01-E

171452

OMRON

Kabel-Encoder Linear-Konverter-serie linearmotor 1m

Linear Encoder Cable-Linear Motor Series Converter 1m

Mehr Infos


Servoantriebe > Zubehör Servoantriebe

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

* Dieser Artikel ist möglicherweise veraltet. Wenn Sie interessiert sind, fordern Sie uns ein Angebot und wir teilen Ihnen mit, ob Einheiten verfügbar sind. Sollten keine weiteren vorhanden sein, sucht einer unserer Techniker nach einer lieferbaren Alternative mit ähnlichen Eigenschaften.

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Bestseller

▲

Mehr Infos

▲


  • Hochgradig dynamische und präzise Positionierung
  • Eisenlose Motoren mit exzellentem Kraft-Gewicht-Verhältnis
  • Gewichtsoptimierte magnetische Führung
  • Optionaler digitaler Hall-Sensor und -Stecker
  • Inkl. Temperatursensoren

Spezifikationen & Bestellinfo

Ordering information


Note: The symbols ABC ... show the recommended sequence to select the linear motor, cables and serial converter for a linear motor system.

Linear motors

R88L-EC-FW-☐ Iron-core type (230 VAC single phase/three phase, 400 VAC three phase)

Symbol

Rated force

Peak force

Compatible linear servo drives

A Iron-core motor coil

B Magnet track

C Hall sensor

D Accurax G5 EtherCAT model

230 V

400 V

Order code

① ②

③ ④


48 N

105 N

R88D-KN02H-ECT-L

R88D-KN06FECT-L

Coil without connectors

R88L-EC-FW-0303-ANPC

R88L-EC-FM-03096-A

R88L-EC-FM-03144-A

R88L-EC-FM-03384-A

R88L-EC-FH-NNNN-A

96 N

210 N

R88D-KN04H-ECT-L

R88D-KN10FECT-L

R88L-EC-FW-0306-ANPC

160 N

400 N

R88D-KN08H-ECT-L

R88D-KN15FECT-L

R88L-EC-FW-0606-ANPC

R88L-EC-FM-06192-A

R88L-EC-FM-06288-A

240 N

600 N

R88D-KN10H-ECT-L

R88D-KN20FECT-L

R88L-EC-FW-0609-ANPC

320 N

800 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-0612-ANPC

608 N

1600 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-1112-ANPC

R88L-EC-FM-11192-A

R88L-EC-FM-11288-A

760 N

2000 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-1115-ANPC

48 N

105 N

R88D-KN02H-ECT-L

R88D-KN06FECT-L

Coil with connectors

R88L-EC-FW-0303-APLC

R88L-EC-FM-03096-A

R88L-EC-FM-03144-A

R88L-EC-FM-03384-A

96 N

210 N

R88D-KN04H-ECT-L

R88D-KN10FECT-L

R88L-EC-FW-0306-APLC

160 N

400 N

R88D-KN08H-ECT-L

R88D-KN15FECT-L

R88L-EC-FW-0606-APLC

R88L-EC-FM-06192-A

R88L-EC-FM-06288-A

240 N

600 N

R88D-KN10H-ECT-L

R88D-KN20FECT-L

R88L-EC-FW-0609-APLC

320 N

800 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-0612-APLC

608 N

1600 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-1112-APLC

R88L-EC-FM-11192-A

R88L-EC-FM-11288-A

760 N

2000 N

R88D-KN15H-ECT-L

R88D-KN30FECT-L

R88L-EC-FW-1115-APLC

R88L-EC-GW-☐ Ironless type (230 VAC single phase/three phase)

Symbol

Rated force

Peak force

Compatible linear Servo drives

A Ironless motor coil

B Magnet track

C Hall Sensor

D Accurax G5 EtherCAT model

230 V

Order code

① ②

③ ④


29 N

100 N

R88D-KN02H-ECT-L

Coil without connectors

R88L-EC-GW-0303-ANPS

R88L-EC-GM-03090-A

R88L-EC-GM-03120-A

R88L-EC-GM-03390-A

R88L-EC-GH-03NN-A

58 N

200 N

R88D-KN08H-ECT-L

R88L-EC-GW-0306-ANPS

87 N

300 N

R88D-KN10H-ECT-L

R88L-EC-GW-0309-ANPS

70 N

240 N

R88D-KN02H-ECT-L

R88L-EC-GW-0503-ANPS

R88L-EC-GM-05126-A

R88L-EC-GM-05546-A

R88L-EC-GM-05168-A

R88L-EC-GM-05210-A

R88L-EC-GH-05NN-A

140 N

480 N

R88D-KN04H-ECT-L

R88L-EC-GW-0506-ANPS

210 N

720 N

R88D-KN08H-ECT-L

R88L-EC-GW-0509-ANPS

141 N

700 N

R88D-KN04H-ECT-L

R88L-EC-GW-0703-ANPS

R88L-EC-GM-07114-A

R88L-EC-GM-07171-A

R88L-EC-GM-07456-A

R88L-EC-GH-07NN-A

282 N

1400 N

R88D-KN08H-ECT-L

R88L-EC-GW-0706-ANPS

423 N

2100 N

R88D-KN10H-ECT-L

R88L-EC-GW-0709-ANPS

29 N

100 N

R88D-KN02H-ECT-L

Coil with connectors

R88L-EC-GW-0303-APLS

R88L-EC-GM-03090-A

R88L-EC-GM-03120-A

R88L-EC-GM-03390-A

R88L-EC-GH-03NN-A

58 N

200 N

R88D-KN08H-ECT-L

R88L-EC-GW-0306-APLS

87 N

300 N

R88D-KN10H-ECT-L

R88L-EC-GW-0309-APLS

70 N

240 N

R88D-KN02H-ECT-L

R88L-EC-GW-0503-APLS

R88L-EC-GM-05126-A

R88L-EC-GM-05546-A

R88L-EC-GM-05168-A

R88L-EC-GM-05210-A

R88L-EC-GH-05NN-A

140 N

480 N

R88D-KN04H-ECTL

R88L-EC-GW-0506-APLS

210 N

720 N

R88D-KN08H-ECT-L

R88L-EC-GW-0509-APLS

141 N

700 N

R88D-KN04H-ECTL

R88L-EC-GW-0703-APLS

R88L-EC-GM-07114-A

R88L-EC-GM-07171-A

R88L-EC-GM-07456-A

R88L-EC-GH-07NN-A

282 N

1400 N

R88D-KN08H-ECT-L

R88L-EC-GW-0706-APLS

423 N

2100 N

R88D-KN10H-ECT-L

R88L-EC-GW-0709-APLS

Servo drive

D Refer to Accurax G5 servo drive chapter for detailed drive specifications and selection of drive accessories.

Serial converter unit

Symbol

Specifications

Order code

⑤

Serial converter unit from 1 Vpp to G5 serial data transmission (with KTY sensor detection of iron-core motor coil)

R88A-SC01K-E

Serial converter unit from 1 Vpp to G5 serial data transmission (with NTC sensor detection of ironless motor coil)

R88A-SC02K-E

Note: If no temperature sensor is needed, then it does not matter which converter you use.

Serial converter cable to servo drive

Symbol

Appearance

Specifications

Length

Order code

⑥


Accurax G5-Linear drive to serial
converter cable.

(Connectors R88A-CNK41L and DB-15)

1.5 m

R88A-CRKN001-5CR-E

3 m

R88A-CRKN003CR-E

5 m

R88A-CRKN005CR-E

10 m

R88A-CRKN010CR-E

15 m

R88A-CRKN015CR-E

20 m

R88A-CRKN020CR-E

Note: This cable can be used also for A/B pulse encoder Numerik Jena standard pinout.

Power cable

Symbol

Appearance

Specifications

Length

Order code

⑦


For iron-core linear motors

R88L-EC-FW-0303-☐

R88L-EC-FW-0306-☐

1.5 m

R88A-CAWK001-5S-DE

3 m

R88A-CAWK003S-DE

5 m

R88A-CAWK005S-DE

10 m

R88A-CAWK010S-DE

15 m

R88A-CAWK015S-DE

20 m

R88A-CAWK020S-DE

For iron-core linear motors

R88L-EC-FW-0606-☐

R88L-EC-FW-0609-☐

R88L-EC-FW-0612-☐

R88L-EC-FW-1112-☐

R88L-EC-FW-1115-☐

1.5 m

R88A-CAWL001-5S-DE

3 m

R88A-CAWL003S-DE

5 m

R88A-CAWL005S-DE

10 m

R88A-CAWL010S-DE

15 m

R88A-CAWL015S-DE

20 m

R88A-CAWL020S-DE


For ironless linear motors

R88L-EC-GW-☐

1.5 m

R88A-CAWB001-5S-DE

3 m

R88A-CAWB003S-DE

5 m

R88A-CAWB005S-DE

10 m

R88A-CAWB010S-DE

15 m

R88A-CAWB015S-DE

20 m

R88A-CAWB020S-DE

Linear encoder cable to serial converter

Symbol

Appearance

Specifications

Length

Order code

⑧


Extension cable for Numerik Jena linear encoder to R88A-SC0☐K-E
serial converter (Connector DB-15)

(This extension cable is optional)

1.5 m

R88A-CFKA001-5CR-E

3 m

R88A-CFKA003CR-E

5 m

R88A-CFKA005CR-E

10 m

R88A-CFKA010CR-E

15 m

R88A-CFKA015CR-E

Extension cable for Renishaw
linear encoder to R88A-SC0☐K-E
serial converter (Connector DB-15)

(This extension cable is optional)

1.5 m

R88A-CFKC001-5CR-E

3 m

R88A-CFKC003CR-E

5 m

R88A-CFKC005CR-E

10 m

R88A-CFKC010CR-E

15 m

R88A-CFKC015CR-E

Extension cable for Heidenhain
linear encoder to R88A-SC0☐K-E
serial converter (Connector DB-15)

(This extension cable is optional)

1.5 m

R88A-CFKD001-5CR-E

3 m

R88A-CFKD003CR-E

5 m

R88A-CFKD005CR-E

10 m

R88A-CFKD010CR-E

15 m

R88A-CFKD015CR-E

Hall and temperature sensors cable to serial converter

Symbol

Appearance

Specifications

Length

Order code

⑨


Extension cable from hall and temperature sensors to R88A-SC0☐K-E serial converter (Connector DB-9)

(This extension cable is optional)

1.5 m

R88A-CFKB001-5CR-E

3 m

R88A-CFKB003CR-E

5 m

R88A-CFKB005CR-E

10 m

R88A-CFKB010CR-E

15 m

R88A-CFKB015CR-E

Connectors

Specifications

Order code

Accurax G5 servo drive encoder connector (for CN4)

R88A-CNK41L

Hypertac power cable connector IP67 for iron-core linear motors

LPRA-06B-FRBN170

Hypertac power cable connector IP67 for ironless linear motors

SPOC06KFSDN169

Dimensions

Iron-core R88L-EC-FW-03☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-FW-0303-☐

105±0.5

79 + 0.15/-0.35

1

R88L-EC-FW-0306-☐

153±0.5

127 + 0.15/-0.35

2


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-FM-03096-A

96

1

2.1

R88L-EC-FM-03144-A

144

2

R88L-EC-FM-03384-A

384

7


Iron-core R88L-EC-FW-06☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-FW-0606-☐

153±0.5

127 + 0.15/-0.35

2

R88L-EC-FW-0609-☐

201±0.5

175 + 0.15/-0.35

3

R88L-EC-FW-0612-☐

249±0.5

223 + 0.15/-0.35

4


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-FM-06192-A

192

3

3.8

R88L-EC-FM-06288-A

288

5


Iron-core R88L-EC-FW-11☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-FW-1112-☐

249±0.5

223 + 0.15/-0.35

4

R88L-EC-FW-1115-☐

297±0.5

271 + 0.15/-0.35

5


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-FM-11192-A

192

3

10.5

R88L-EC-FM-11288-A

288

5


Ironless R88L-EC-GW-03☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-GW-0303-☐

95.4

78

3

R88L-EC-GW-0306-☐

155.4

138

6

R88L-EC-GW-0309-☐

215.4

198

9


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-GM-03090-A

90

2

4.8

R88L-EC-GM-03120-A

120

3

R88L-EC-GM-03390-A

390

12


Ironless R88L-EC-GW-05☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-GW-0503-☐

123.4

106

3

R88L-EC-GW-0506-☐

207.4

190

6

R88L-EC-GW-0509-☐

291.4

274

9


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-GM-05126-A

126

2

11.2

R88L-EC-GM-05168-A

168

3

R88L-EC-GM-05210-A

210

4

R88L-EC-GM-05546-A

546

12


Ironless R88L-EC-GW-07☐

Motor coil

Model

L1 (mm)

L2 (mm)

n

R88L-EC-GW-0703-☐

151.4

134

3

R88L-EC-GW-0706-☐

265.4

248

6

R88L-EC-GW-0709-☐

379.4

362

9


Magnet track

Model

L1 (mm)

n

Approx. weight (kg/m)

R88L-EC-GM-07114-A

114

1

25.5

R88L-EC-GM-07171-A

171

2

R88L-EC-GM-07456-A

456

7
