J7TC-01-6 J7TC5015E 690039 OMRON Thermisches Überlastrelais, Push-In Plus-Klemmen, Stromeinstellbereich für ..
J7TC-01-6
J7TC5015E
J7TC016
OMRON

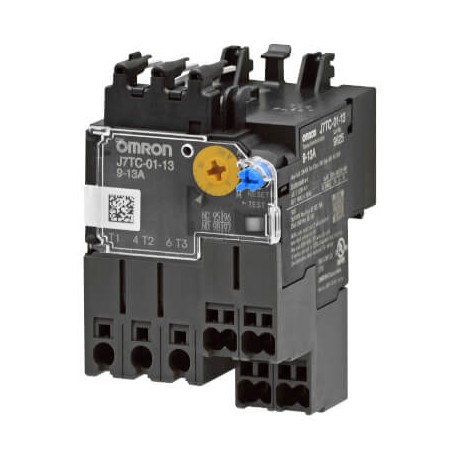

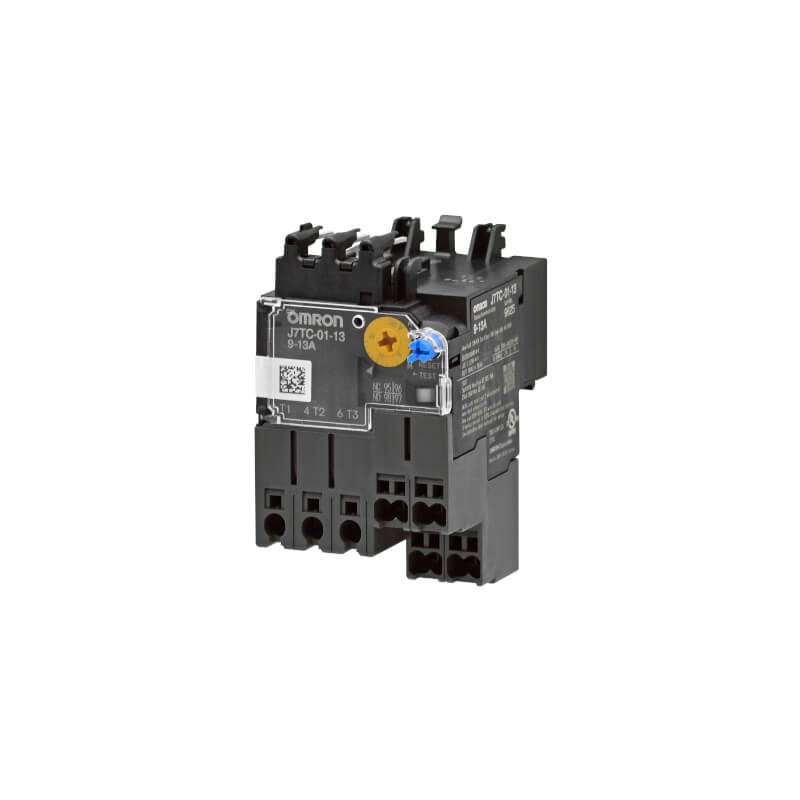

Thermische Überlast-Relais, Push-In-und Plus-Terminals, Strom-Einstellbereich thermische überlastung release 4 - 6, H×W×D 79,5 x 45 x 55.5 mm
Niederspannungs-Schaltanlagen > J7TK Wärmerelais
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Related products
▲Mehr Infos
▲- Geringere Verdrahtungs- und Wartungszeit dank Push-in-Plus-Anschlüssen
- One-Touch-Installation mit Magnetschütz J7KC zur Konfiguration eines magnetischen Starters
- Hoch zuverlässiger Hilfsstromkreis (2 PST – 1 Schließer, 1 Öffner)
- Standardmäßig mit einer Abdeckung für die Bedienelemente ausgestattet, um Einstellungsänderungen zu verhindern
- Einfaches Umschalten zwischen manueller und automatischer Zurücksetzung
- Zertifiziert gemäß den wichtigsten Sicherheitsstandards
Spezifikationen & Bestellinfo
Ordering Information
Mainunit
Thermal overload relay
| Settling current range | Order code |
|---|---|
| 0.1-0.15 A | J7TC-01-E15 |
| 0.13-0.2 A | J7TC-01-E20 |
| 0.18-0.27 A | J7TC-01-E27 |
| 0.24-0.36 A | J7TC-01-E36 |
| 0.34-0.52 A | J7TC-01-E52 |
| 0.48-0.72 A | J7TC-01-E72 |
| 0.64-0.96 A | J7TC-01-E96 |
| 0.8-1.2 A | J7TC-01-1E2 |
| 0.95-1.45 A | J7TC-01-1E4 |
| 1.1-1.65 A | J7TC-01-1E6 |
| 1.4-2.1 A | J7TC-01-2E1 |
| 1.7-2.6 A | J7TC-01-2E6 |
| 2.2-3.4 A | J7TC-01-3E4 |
| 2.8-4.2 A | J7TC-01-4E2 |
| 4-6 A | J7TC-01-6 |
| 5-7.5 A | J7TC-01-7E5 |
| 6-9 A | J7TC-01-9 |
| 7-10.5 A | J7TC-01-10 |
| 9-13 A | J7TC-01-13 |
Accessories(Order Separately)
Insulation stop
| Minimum order (bag) | Order code |
|---|---|
| 1 (30 pcs./bag) | J77KC-T (for maincircuit) |
| J77KC-K (for auxiliarycircuit) |
Removal tool
| Order code |
|---|
| J78KC |
Specifications
| Main circuit rating | Trip class | 10 A | ||||||||
| 3-pole load operation (At 20°C ambient temperature) IEC 60947-4-1/ JIS C 8201-4-1 | Limit operation | No operation(cold start) | 105% (less than 2 hours) 2 Ratio to dial settling current. | |||||||
| Operation(hot start) | 120% (less than 2 hours) 2 Ratio to dial settling current. | |||||||||
| Operationwhen overload occurs (hot start) | 150% (less than 2 minutes) 2 Ratio to dial settling current. | |||||||||
| Operationwhen locking occurs (cold start) | 720% (over 2 s up to 10 s) 2 Ratio to dial settling current. | |||||||||
| 2-pole load operation (At 20°C ambient temperature) IEC 60947-4-1/ JIS C 8201-4-1 | Phase lessprotection device | With phase failure protectiondevice | ||||||||
| No operation(cold start) | 2 poles 100%/1 pole 90% 2 Ratio to dial settling current. | |||||||||
| Operation(hot start) | 2 poles 115%/1 pole 0% (lessthan 2 hours) 2 Ratio to dial settling current. | |||||||||
| Ambient temperature compensation performance | Ambient temperature 40°C | No operation(cold start) | 100% (less than 2 hours) 2 Ratio to dial settling current. | |||||||
| Operation(hot start) | 120% (less than 2 hours) 2 Ratio to dial settling current. | |||||||||
| Ambient temperature –5°C | No operation(cold start) | 105% (less than 2 hours) 2 Ratio to dial settling current. | ||||||||
| Operation(hot start) | 130% (less than 2 hours) 2 Ratio to dial settling current. | |||||||||
| Auxiliary circuit rating | Ratings based on IEC 60947-5-1 | Rated voltagerange (V) | 24 | 100-120 | 200-240 | 380-440 | 500-600 | |||
| Rated operational current (A) | AC-15 (Coil load) | NC contact | 3.0 (0.5) 2 () indicatesthe contact rating when set to auto release. | 2.5 (0.5) 2 () indicatesthe contact rating when set to auto release. | 2.0 (0.5) 2 () indicatesthe contact rating when set to auto release. | 1.0 (0.5) 2 () indicatesthe contact rating when set to auto release. | 0.6 (0.5) 2 () indicatesthe contact rating when set to auto release. | |||
| NO contact | 3.0 (0.5) 2 () indicatesthe contact rating when set to auto release. | 2.5 (0.5) 2 () indicatesthe contact rating when set to auto release. | 1.5 (0.5) 2 () indicatesthe contact rating when set to auto release. | 0.75 (0.5) 2 () indicatesthe contact rating when set to auto release. | 0.6 (0.5) 2 () indicatesthe contact rating when set to auto release. | |||||
| DC-13 (Coil load) | NC contact | 1.1 (0.3) 2 () indicatesthe contact rating when set to auto release. | 0.28 | 0.14 | – | – | ||||
| NO contact | 1.1 (0.3) 2 () indicatesthe contact rating when set to auto release. | 0.28 | 0.14 | – | – | |||||
| Conventional free air thermal current (Rated carry current) | 5 A | |||||||||
| Ratings based on UL 508 | Rated carrycurrent (A) | 5 | 1 | |||||||
| Rated voltage(V) | 120 AC | 240 AC | 480 AC | 600 AC | 125 DC | 250 DC | ||||
| Contact closedcurrent (A) | 30 | 15 | 7.5 | 6 | 0.22 | 0.11 | ||||
| Breakingcurrent (A) | 3 | 1.5 | 0.75 | 0.6 | 0.22 | 0.11 | ||||
| Rating code | B600 | Q300 | ||||||||
| Minimum operatevoltage/current (reference value) | 5 VDC, 3 mA | |||||||||
| Contact resistance(reference value) | 50 mΩ max. (6 VDC, 1 A, voltagedrop method) | |||||||||
| Contact structure | Single-break | |||||||||
| Contact material | Ag alloy | |||||||||
| Rated insulationvoltage | 690VAC | |||||||||
| Rated impulsedielectric strength | 6 kV | |||||||||
| Rated frequency | 50/60 Hz | |||||||||
| Vibrationresistance | Vibration: 10 to 55 Hz, acceleration:15m/s2 | |||||||||
| Shock resistance | Shock value 50 m/s2 | |||||||||
| Degree ofprotection | IP20 (IEC60529) | |||||||||
| Operatingtemperature | −10 to +55°C (however, dailyaverage shall not exceed 35°C) | |||||||||
| Ambient storagetemperature | −40 to +65°C (no condensationor icing) | |||||||||
| Relativehumidity | 45% to 85% RH (no condensationor icing) | |||||||||
| Altitude | 2000 m max. | |||||||||
| Weight | 110 g | |||||||||
| Applicablestandards | Safety standard | EN 60947-4-1 (IEC 60947-4-1), UL 60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.4 | ||||||||
