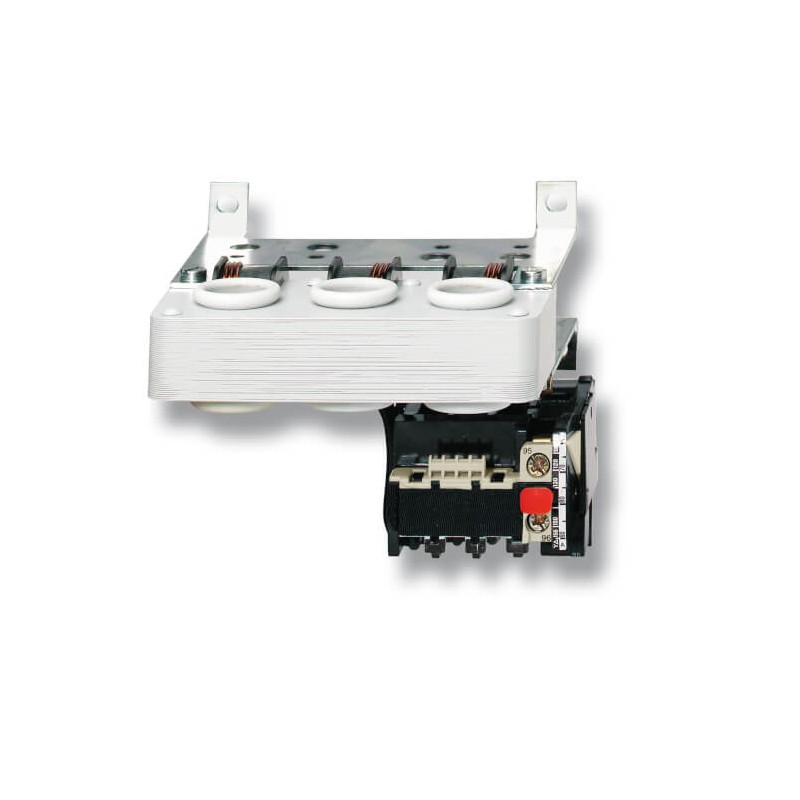

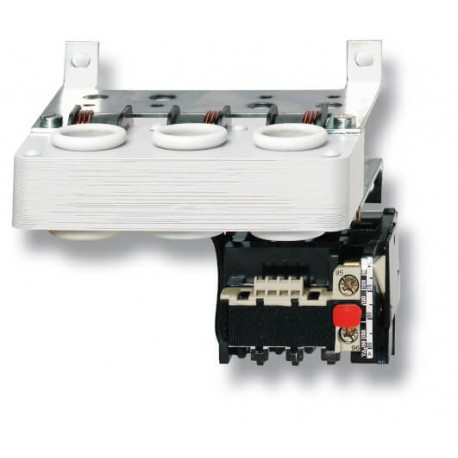

J74KN-LG-9030 J74K9026A J74KNLG9030 OMRON Additional terminal for motor schütz J7KN50-62

J7KNA-09..., J7KNA-12...

0.12 to 0.18

-

95 × 48.5 × 77

J7TKN-A-E18

0.18 to 0.27

-

J7TKN-A-E27

0.27 to 0.4

-

J7TKN-A-E4

0.4 to 0.6

-

J7TKN-A-E6

0.6 to 0.9

-

J7TKN-A-E9

0.8 to 1.2

-

J7TKN-A-1E2

1.2 to 1.8

-

J7TKN-A-1E8

1.8 to 2.7

-

J7TKN-A-2E7

2.7 to 4

-

J7TKN-A-4

4 to 6

7 to 10.5

J7TKN-A-6

6 to 9

10.5 to 15.5

J7TKN-A-9

8 to 11

14 to 19

J7TKN-A-11

10 to 14

18 to 24

J7TKN-A-14

J7KN-10D... to J7KN-40...

0.12 to 0.18

-

126.5 × 45 × 70 (J7KN-10D to J7KN-22D);
141.5 × 45 × 87.5 (J7KN-24 to J7KN-40)

J7TKN-B-E18

0.18 to 0.27

-

J7TKN-B-E27

0.27 to 0.4

-

J7TKN-B-E4

0.4 to 0.6

-

J7TKN-B-E6

0.6 to 0.9

-

J7TKN-B-E9

0.8 to 1.2

-

J7TKN-B-1E2

1.2 to 1.8

-

J7TKN-B-1E8

1.8 to 2.7

-

J7TKN-B-2E7

2.7 to 4

-

J7TKN-B-4

4 to 6

7 to 10.5

J7TKN-B-6

6 to 9

10.5 to 15.5

J7TKN-B-9

8 to 11

14 to 19

J7TKN-B-11

10 to 14

18 to 24

J7TKN-B-14

13 to 18

23 to 31

J7TKN-B-18

17 to 24

30 to 41

J7TKN-B-24

23 to 32

40 to 55

J7TKN-B-32

J7KN-24... to J7KN-40...

28 to 42

48 to 73

136 × 67 × 96.5

J7TKN-C-42

J7KN-50... to J7KN-74...

40 to 52

70 to 90

180 × 69 × 108

J7TKN-D-52

52 to 65

90 to 112

J7TKN-D-65

60 to 74

104 to 128

J7TKN-D-74

J7KN-90... to J7KN-115...

60 to 90

104 to 156

260 × 107 × 120

J7TKN-E-90

80 to 120

140 to 207

J7TKN-E-120

J7KN-151... to J7KN-176...

120 to 180

208 to 312

290 × 110 × 162

J7TKN-F-180

J7KN-210... to J7KN-316...

144 to 216

250 to 374

362 × 145 × 208

J7TKN-G-216

216 to 320

374 to 554

J7TKN-G-320

J7KN-450... to J7KN-860...

240 to 360

416 to 623

372 × 1246 × 1225 (J7KN-450)

395 × 1246 × 1225 (J7KN-550)

487 × 1280 × 1291 (J7KN-700)

540 × 1280 × 1291 (J7KN-860)

J7TKN-H-360

360 to 540

623 to 935

J7TKN-H-540

540 to 800

935 to 1385

J7TKN-H-800

J7TKN-AB

0.75 to 6

0.75 to 4

0.5 to 4

J74TK-M-AB

J7TKN-B

0.75 to 6

0.75 to 4

0.5 to 4

J74TK-SM

J7TKN-H-360/540

J7KN-450/550

J74TK-SU-550

J7TKN-H-540/800

J7KN-700/860

J74TK-SU-860

Rated insulation voltage Ui

690 VAC

750 VAC

1000 VAC

Permissible ambient
temperature

Operation

-25 to 60°C

-25 to 55°C

Storage

-50 to 70°C

-40 to 70°C

Trip class according to IEC 947-4-1

10 A

20 A

10 A

Cable cross-section
Main connector

Solid or stranded mm2

0.75 to 6
0.75 to 2.5

0.75 to 6

0.75 to 10

4 to 35

Without terminals, suitable for bushing one connector 70 mm² (stranded) per phase

Busbar

18×4

Screw

M8

Busbar

25×6

Screw

M10

See accessories

Flexible mm2

0.75 to 4
0.5 to 2.5

1 to 4

0.75 to 6

6 to 25

Flexible with multi-core
cable end mm2

0.5 to 2.5
0.5 to 1.5

0.75 to 4

0.75 to 6

4 to 25

Cables per clamp

Number

1 + 1

2

2

1

-

1

1

1

Auxiliary connector

Solid mm2

0.75 to 2.5

1 to 2.5

Flexible mm2

0.5 to 2.5

1 to 2.5

Flexible with multi-core
cable end mm2

0.5 to 1.5

1 to 2.5

Cables per clamp

Number

2

Auxiliary contacts

Rated insulation voltage Ui

same potential

690 VAC

500 VAC

different potential

440 VAC

250 VAC

440 VAC

500 VAC

Rated operational current Ie Utilization category AC15

24 V

5 A

3 A

4 A

5 A

3 A

4 A

230 V

3 A

2 A

2.5 A

2.5 A

3 A

2 A

2.5 A

400 V

2 A

1 A

1.5 A

1.5 A

2 A

1 A

1.5 A

690 V

0.6 A

0.5 A

0.6 A

0.5 A

0.6 A

Rated operational current Ie

Utilization category DC13

24 V

1.2 A

1 A

1.2 A

110 V

0.15 A

220 V

0.1 A

Short circuit protection (without welding 1 kA)

Highest fuse rating gL (gG)

6 A

4 A

6 A

4 A

6 A

Setting range

to 23 A

All

28 to 42 A

52 to 65 A

All

-

-

-

Power loss per current path (max.)

Minimum setting value

1.1 W

1.1 W

1.3 W

2.9 W

1.1 W

-

-

-

Maximum setting value

2.3 W

2.3 W

3.3 W

4.5 W

2.5 W

-

-

-
