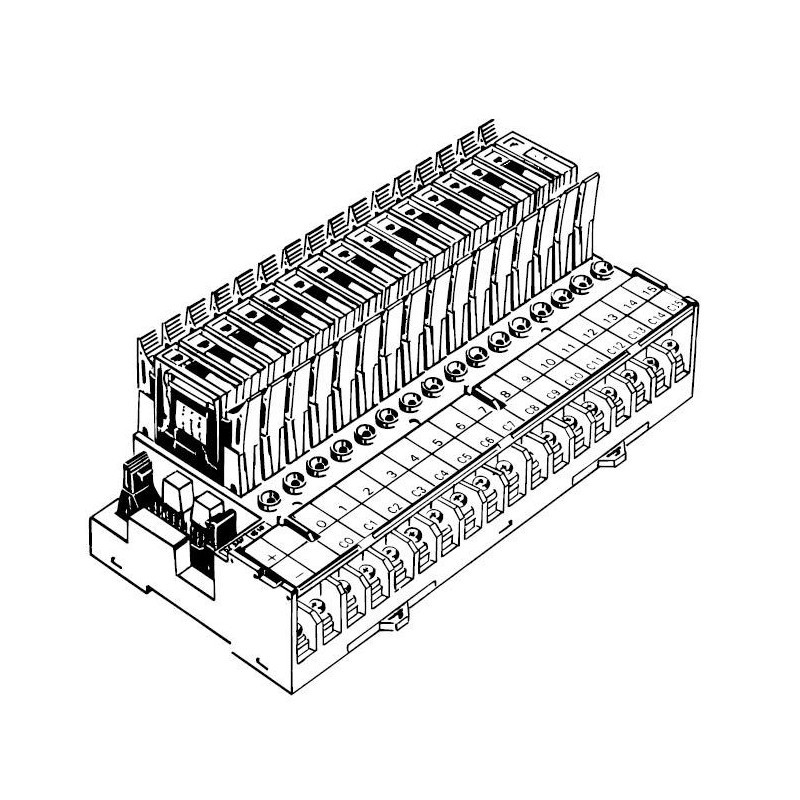

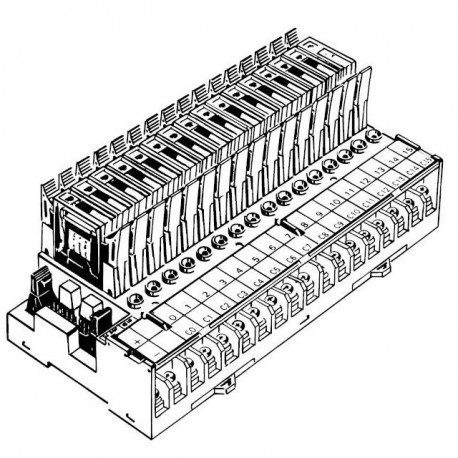

G7TC-ID16 DC24 G7TC7011G G7TCID16DC24 OMRON Modul 16 Relais G7T Eingang 24Vdc NPN
G7TC-ID16 DC24
G7TC7011G
G7TCID16DC24
OMRON
Modul 16 Relais G7T Eingang 24Vdc NPN
Industriesteuerungen SPS > Übergabemodul
Steuerungssysteme > Zubehör Steuerungssysteme
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Bestseller
▲Mehr Infos
▲- Kompakte Größe: 182 mm (B) X 85 mm (T) X 68 mm (H) (Breite des 8-Punkt-Ausgangsblocks: 102 mm).
- Wird über den Steckverbinder an die SPS angeschlossen – ganz einfach per Schnappanschluss.
- Überspannungsschutzschaltung integriert.
- Sofortige Erkennung des E/A-Signalstatus über LED-Betriebsanzeigen.
- Anstelle von G7T kann ein G3TA E/A-Halbleiterrelais montiert werden.
- Einfache Montage auf einer DIN-Schiene.
- Zugelassen von UL, CSA (außer G7TC-OC16-1).
Spezifikationen & Bestellinfo
Ordering Information
I/ORelay Terminal
| I/O classification | I/O points | Internal I/O common | Rated voltage | Order code |
|---|---|---|---|---|
| Input | 16 | NPN (– common) | 12 VDC | G7TC-ID16 |
| 24 VDC | ||||
| 100 (110) VDC | ||||
| 100/(110) VAC | G7TC-IA16 | |||
| 200/(220) VAC | ||||
| Output | 16 | NPN (+ common) | 12 VDC | G7TC-OC16 |
| 24 VDC | ||||
| PNP (– common) | 12 VDC | G7TC-OC16-1 2 Notapproved by UL, CSA. | ||
| 24 VDC | ||||
| 8 | NPN (+ common) | 12 VDC | G7TC-OC08 | |
| 24 VDC |
Note:
- When ordering, addthe rated coil voltage to the model number. Example: G7TC-ID1 24VDC
- When the G7TC is used with an AC rated voltage, three ratedcurrents can be used. If a coil voltage of 110 or 220 VAC is used,50 Hz cannot be used.
Accessories(Order Separately)
Cable for I/O Relay TerminalsXW2Z-R
| Type | Order code | ||
|---|---|---|---|
| Cable with Loose Wire and CrimpTerminals | XW2Z-RY⬜C | ||
| Cable with Loose Wires | XW2Z-RA⬜C | ||
| Cable with connectors | Fujitsu connectors | (1:1) | XW2Z-R⬜C |
| (1:2) | XW2Z-RI⬜C-⬜ | ||
| XW2Z-RO⬜C-⬜ | |||
| (1:3) | XW2Z-R⬜C-⬜-⬜ | ||
| MIL connectors | (1:1) | XW2Z-RI⬜C | |
| XW2Z-RO⬜C | |||
| (1:2) | XW2Z-RI⬜-⬜-D⬜ | ||
| XW2Z-RM⬜-⬜-D⬜ | |||
| XW2Z-RO⬜-⬜-D1 | |||
Note:
Refer to Connecting Cables for details.
ShortBar
| Item | Order code |
|---|---|
| Short Bar | G78-04 |
Output Short-CircuitModule
| Item | Order code |
|---|---|
| Output Short-Circuit Module | G77-S |
Socket
| Item | Order code |
|---|---|
| Socket | P7TF-05 |
Mounted Relays and I/OTerminal Sockets
Mounted Relays (G7T I/O Relays and G3TAI/O SSRs)
I/O Terminal Sockets (P7TF-IS16/OS16/OS08)
Referto Safety Precautions for details.
IndicatorModule (With Surge Suppressing Function)
| Applicable relay coil voltage | Remarks | Order code | |
|---|---|---|---|
| For AC relay | 100 (110) V AC | Varistor surge suppression | P70A |
| 200 (220) V AC | |||
| For DC relay | 12/24 V DC | Diode surge suppression | P70D |
Note:
- Order the indicatormodule suitable for the relay coil voltage.
- The indicator module for DC relays can be used with a 12-V or24 V DC power supply.
Accessoriesfor DIN Track Mounting
| Appearance | Name | Minimum order (quantity) | Order code | |
|---|---|---|---|---|
 | DIN Tracks | 1 m | 1 | PFP-100N |
| 0.5 m | PFP-50N | |||
 | End Plate | 10 | PFP-M 2 Please orderin sets of 10 units. | |
 | Spacer | PFP-S 2 Please orderin sets of 10 units. | ||
Specifications
Coil Ratings(Common to Input/Output per Relay)
| Item | Rated current (mA) | Coil resistance (Ω) | Must operate | Must release | Maximum voltage | Power consumption | |||
|---|---|---|---|---|---|---|---|---|---|
| Rated voltage (V) | 50 Hz | 60 Hz | of rated voltage | per Relay | per 16 Relays | ||||
| AC | 100/(110) | 8.2/– | 7/7.7 | 8,700 | 80% max. | 30% min. | 105% | 0.7 VA | 11 VA |
| 200/(220) | 4.1/– | 3.5/3.85 | 33,300 | ||||||
| DC | 12 | 42 | 290 | 80% max. | 10% min. | 105% | 0.5 W | 8 W | |
| 24 | 21 | 1,150 | |||||||
| 100/110 | 5 | 20,000 | |||||||
Note:
- The rated currentand coil resistance are measured at a coil temperature of 23°C witha tolerance of 15%/-20% for AC rated current and ±15% for coil resistance.
- The operating characteristics are measured at a coil temperatureof 23°C.
- The value for maximum voltage is the maximum value within theallowable voltage fluctuation range for the relay coil’s operatingpower supply. Continuous operation at this voltage is not withinproduct specifications.
- Approx. 4 mA flows into each LED indicator. To calculate thepower supply capacity, add the current value of each LED indicator.
- When the G7TC is used with an AC rated voltage, three ratedcurrents can be used. If a coil voltage of 110 or 220 VAC is used,50 Hz cannot be used.
ContactRatings (G7T I/O Relay)
| Classification | For input | For output | ||
|---|---|---|---|---|
| Item | Resistive load (cosϕ=1) | Inductive load (cosϕ=0.4 L/R=7 ms) | Resistive load (cosϕ=1) | Inductive load (cosϕ=0.4 L/R=7 ms) |
| Rated load | 1 A at 24 VDC | 0.5 A at 24 VDC | 2 A at 220 VAC 5 A at 24 VDC | 1 A at 220 VAC 2 A at 24 VDC |
| Rated carry current | 1 A | 5 A | ||
| Max. switching voltage | 250 VAC, 125 VDC | |||
| Max. switching current | 1 A | 0.5 A | 5 A | 2 A |
| Error rate (referencevalue) 2 The above values are for a switching frequency of 120operations/min. | 100 μA at 1 V | 10 mA at 5 V | ||
| Electrical endurance | 10,000,000 operations (at 10 mA) 50,000 operations (at 1 A) | 2,500,000 operations (at 10 mA) 20,000 operations (at 1 A) | 1,000,000 operations (under ratedload) | |
| Mechanical endurance | 50,000,000 operations | |||
Characteristics
| Item | G7TC-IA16 (Input, AC coil) | G7TC-ID16 (Input, DC coil) | G7TC-OC16 (–1) (output, DC coil) | G7TC-OC08 (output, DC coil) | |
|---|---|---|---|---|---|
| Contact form | SPST-NO × 16 | SPST-NO × 8 | |||
| Contact mechanism | Bifurcated crossbar contact | Single contact | |||
| Contact material | Au cladding + Ag | AgInSn | |||
| Contact resistance 2 Measurement:1 A at 5 VDC. | 50 mΩ max. | ||||
| Must Operatetime 2 Ambient temperature: 23°C. | 15 ms max. | ||||
| Release time 2 Ambient temperature: 23°C. | 15 ms max. | ||||
| Max. switching frequency | Mechanical limit | 18,000 operations/h | |||
| At rated load | 1,800 operations/h | ||||
| Insulationresistance | 100 MΩ (at 500 VDC) | ||||
| Dielectric strength | Between coil and contact | 2,000 VAC, 50/60 Hz for 1 minute | |||
| Between same polaritycontacts | 1,000 VAC, 50/60 Hz for 1 minute | ||||
| Between paired connectors 2 Thisis between connector pin No. 10 and 20, and between connector pinNo. 9 and 19. | 250 VAC, 50/60 Hz for 1 minute | ||||
| Vibrationresistance | 10 to 55 to 10 Hz with 0.5-mmsingle amplitude (1.0-mm double amplitude) | ||||
| Shock resistance | 200 m/s2 | ||||
| Noise immunity | Noise level: 1.5 kV; pulse width:100 ns to 1 μs | ||||
| Rated voltage between positive and negative terminal blocks | Rated voltage of controller’s(PLC or other) input circuit | 12 VDC ±5% 24 VDC ±5% | |||
| Rated current between positive and negative terminal blocks | Input circuit current of controller(PLC or other) × number of ON points | 12 VDC: 46 mA × number of ONpoints 24 VDC: 25 mA × number of ON points | |||
| Cable length 2 Connectingcables up to 5 m are available as standard products. For longercables, enquire separately. | To controller | 5 m max. (reference value) | |||
| To I/O devices | 50 m max. (reference value, for2-mm2CVV cable) | Dependent on load | |||
| Ambient operatingtemperature | 0 to 55°C | ||||
| Ambient operatinghumidity | 35% to 85% (with no icing or condensation) | ||||
| Tighteningtorque for external connections | 0.78 to 1.18 N·m | ||||
| Tensile strength | No damage when a tensile force of 49 N is applied in each direction. In the direction of the track, the tensile strength is 9.8 N min. | ||||
| I/O terminaltightening torque | Tightening strength: 0.98 N·m;Tensile strength 49 N per minute | ||||
| LED color | Red | Green | |||
| Case color | Transparent red | Transparent green | Transparent green | ||
| Coil surgeabsorber | Varistor | Diode (1 A, 1,000 V) | |||
| Weight | Approx. 640 g | Approx. 630 g | Approx. 670 g | Approx. 350 g | |
Note:
The above values are initial values.
ApprovedStandards
- The rated values for safety standard certificationare not the same as individually defined performance values. Alwayscheck the specifications before use.
- Standard G7TC I/O Relay Terminal, except for the G7TC-OC16-1and the G7TC-OC08, have met UL and CSA standards (UL file no. E95399;CSA file no. LR35535).
UL standard certification(File No. E95399)
| Model | Standard number | Category | Listed/Recognized | Contact ratings |
|---|---|---|---|---|
G7TC-ID16 G7TC-IA16 | UL508 | NRAQ2 | Recognized | Terminal block side: 250 VAC max./point Connectorside: 10 mA/point, 24 VDC |
| G7TC-OC16 | UL508 | NRAQ2 | Recognized | Terminal block side: Inductive load:10 A, 250 VAC Resistive load: 10 A, 30 VDC Rated horsepower:1/2 HP, 240 VAC |
CSA Standard (File No.LR35535)
| Model | Standard number | Class number | Contact ratings |
|---|---|---|---|
| G7TC-ID16 | CSA C22.2 No.14 | 3211 04 | 6 to 240 VAC 6 to 125VDC |
| G7TC-IA16 | |||
| G7TC-OC16 |
