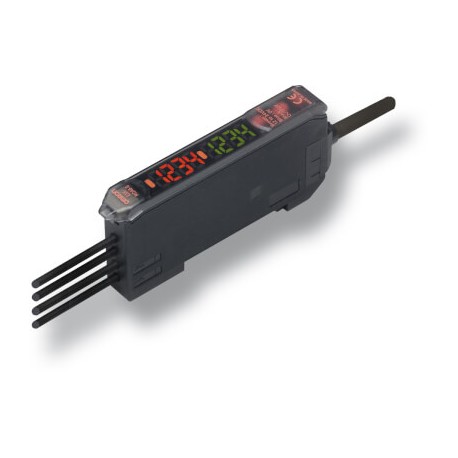

E3X-MDA41 2M 323855 OMRON Dual-display-dc-3h PNP Teach 2 fasern

Pre-wired

AND/OR output

E3X-MDA11

E3X-MDA41

Fiber amplifier connector1

AND/OR output

E3X-MDA6

E3X-MDA8

Fiber amplifier
connector

2 m PVC cable

E3X-CN21

30 cm PVC cable with M12 plug connector (4 pin)

E3X-CN21-M1J 0.3M

30 cm PVC cable with M8 plug connector (4 pin)

E3X-CN21-M3J-2 0.3M

Light source (wave length)

Red LED (650 nm)

Power supply voltage

12 to 24 VDC±10%, ripple (p-p) 10% max.

Protective circuits

Power supply reverse polarity protection, output short-circuit protection, mutual interference prevention

Response time

Super-high-speed mode

130 µs for operation and reset respectively

Standard mode

1 ms for operation and reset respectively

High-resolution mode

4 ms for operation and reset respectively

Sensitivity setting

Teaching and digital up/down keys

Functions

Power tuning

Light emission power and reception gain, digital control method

Timer function

Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments,
200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)

I/O settings

Output setting (select from channel 2 output, AND, OR, leading edge sync, falling edge sync, or differential output)

Digital displays

Select from the following: Incident level for channel 1 + incident level for channel 2, Incident level + threshold, incident level percentage + threshold, incident light peak level + no incident light bottom level, minimum incident light peak level + maximum no incident light bottom level, long bar display, incident level + peak hold, incident level + channel

Degree of protection

IEC 60529 IP50 (with protective cover attached)
