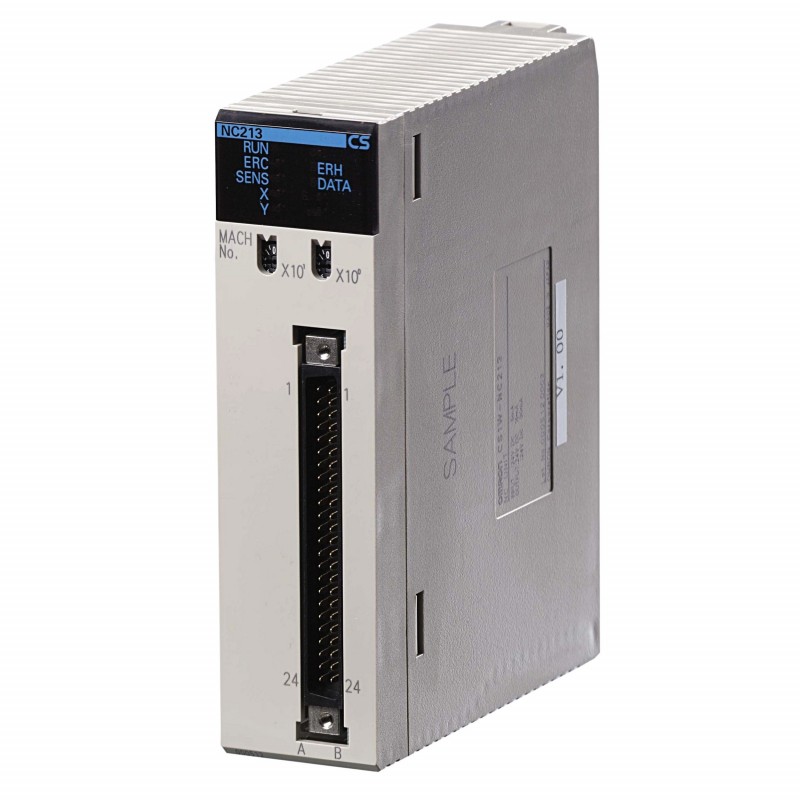

CS1W-NC213 CS1W0141C CS1WNC213 OMRON Modul positioner mit 2-achsen-500kHz CS1

CS1W-NC213

CS1W0141C

CS1WNC213

OMRON

Modul positioner mit 2-achsen-500kHz CS1

2-Achsen-Positionierungsmodul 500kHz CS1

CS1-Positionier-Baugruppe, 2 Achsen, Impulsfolgeausgang, offener Kollektor (NPN), 500 kHz

Mehr Infos


POSITIONIERBAUGRUPPEN > PLC Motion Control

Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

* Dieser Artikel ist möglicherweise veraltet. Wenn Sie interessiert sind, fordern Sie uns ein Angebot und wir teilen Ihnen mit, ob Einheiten verfügbar sind. Sollten keine weiteren vorhanden sein, sucht einer unserer Techniker nach einer lieferbaren Alternative mit ähnlichen Eigenschaften.

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Bestseller

▲

Mehr Infos

▲


Spezifikationen & Bestellinfo

Ordering information

Channels/Axes

Type

Signal type

Unit class

Remarks

Connection type

Order code

2

SSI inputs
(absolute position data)

Synchronous
serial protocol

Special I/O unit

Baud rate, encoding type, data length,
etc. can be set per channel

2 digital outputs, NPN/PNP selectable.

M3 screw

CS1W-CTS21

2

500 kHz Counter

24 V, 12 V, line driver

Special I/O unit

4 configurable digital inputs +
4 configurable digital outputs
Target values trigger interrupt to CPU

1 × Fujitsu (40 pt)

CS1W-CT021

4

2 × Fujitsu (40 pt)

CS1W-CT041

1

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC113

2

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC213

4

Position control unit

24 V open collector

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

2 × Fujitsu (40 pt)

CS1W-NC413

1

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC133

2

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

1 × Fujitsu (40 pt)

CS1W-NC233

4

Position control unit

Line driver

Special I/O unit

500 kpps pulse outputs, inputs for origin,
limit switches, stop, interrupt

2 × Fujitsu (40 pt)

CS1W-NC433

2

Motion control unit

Analog

Special I/O unit

Closed loop with automatic trapezoid or
S-curve acceleration/deceleration

Snap-on connectors (3M)

CS1W-MC221-V1

4

Motion control unit

Analog

Special I/O unit

Closed loop with automatic trapezoid or
S-curve acceleration/deceleration

Snap-on connectors (3M)

CS1W-MC421-V1

Accessories

Description

Connection type

Order code

Servo relay unit 1-Axis position control unit

-

XW2B-20J6-1B

Servo relay unit 2-Axes position control unit

-

XW2B-40J6-2B

Cable connecting servo relay unit to Position control unit CS1W-NC113, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A6

Cable connecting servo relay unit to Position control unit CS1W-NC213/413, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A7

Cable connecting servo relay unit to Position control unit CS1W-NC113, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A6

Cable connecting servo relay unit to Position control unit CS1W-NC213/413, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A7

Cable connecting servo relay unit to Position control unit CS1W-NC133, cable length 1 m. For Accurax G5 servo drives.

-

XW2Z-100J-A10

Cable connecting servo relay unit to Position control unit CS1W-NC233/433, cable length 1 m. Accurax G5 servo drives.

-

XW2Z-100J-A11

Cable connecting servo relay unit to Position control unit CS1W-NC133, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A10

Cable connecting servo relay unit to Position control unit CS1W-NC233/433, cable length 1 m. For SmartStep 2 servo drives.

-

XW2Z-100J-A11

Cable connecting servo relay unit to Accurax G5 servo drives, cable length 1 m.

-

XW2Z-100J-B25

Cable connecting servo relay unit to SmartStep 2 servo drive, cable length 1 m.

-

XW2Z-100J-B29

Note: For General-purpose I/O Cables and Terminal Blocks, see page

Zubehör

I/O cables and terminal blocks

Ordering information
