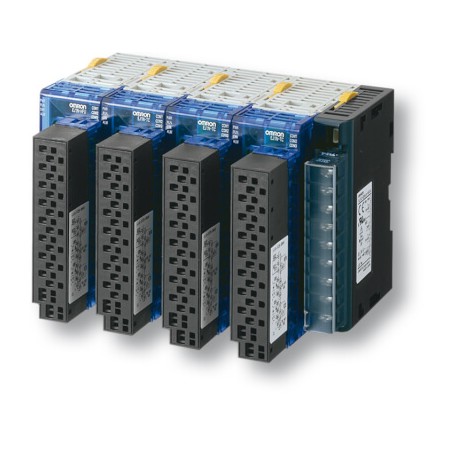

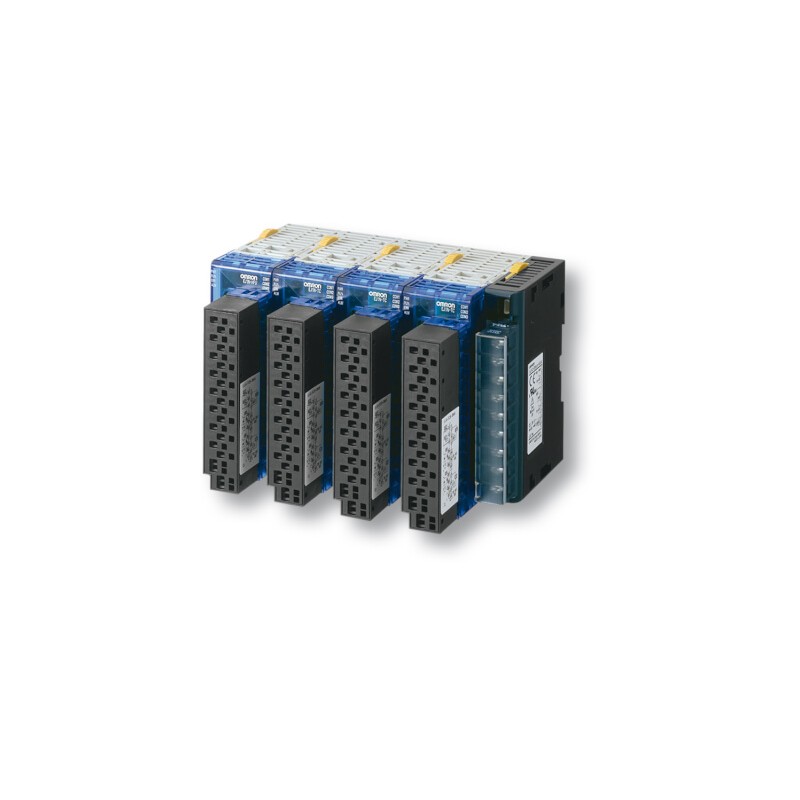

EJ1-Header Alim, Coms, Alarm
Temperatur-Bedienfeld > EJ1
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
CelciuXº ermöglicht eine einfache und programmlose Kommunikation mit SPS und MMS von Omron. Vor allem sind in CelciuXº (EJ1) alle gängigen intelligenten und benutzerfreundlichen Temperaturregelungstechnologien, wie 2-PID-Regelung, Störungsausregelung und verschiedene Tuning-Möglichkeiten, integriert.
Zuverlässigkeit, kompakte Bauweise und kompromisslose Regelleistung machen den CelciuX° zum perfekten Regler für einfache Anwendungen mit mehreren Regelkreisen.
Regelung, Übersicht und Datenprotokollierung könnten nicht einfacher sein als mit dem CelciuX° in Verbindung mit einem direkten Anschluss an MMS von Omron.
Type | Control points | Control outputs | Auxiliary outputs | Other functions | Terminal | Order code |
---|---|---|---|---|---|---|
Basic unit | 2 | 2 voltage (pulse) | 2 transistor (NPN) 2 For heating/cooling control applications, the auxiliary outputs on the 2-point models are used for cooling control. On the 4-point models, heating/cooling control can be performed for two input points only. | 2 CT input 2 + 2 event inputWhen usingthe heater burnout alarm, purchase a Current Transformer (E54-CT1or E54-CT3) separately. | M3 screws | EJ1N-TC2A-QNHB |
Basic unit | 2 | 2 voltage (pulse) | 2 transistor (NPN) 2 For heating/cooling control applications, the auxiliary outputs on the 2-point models are used for cooling control. On the 4-point models, heating/cooling control can be performed for two input points only. | 2 CT input 2 +2 event inputWhen usingthe heater burnout alarm, purchase a Current Transformer (E54-CT1or E54-CT3) separately. | Screw-less clamp | EJ1N-TC2B-QNHB |
Basic unit | 2 | 2 current | 2 transistor (NPN) 2 For heating/cooling control applications, the auxiliary outputs on the 2-point models are used for cooling control. On the 4-point models, heating/cooling control can be performed for two input points only. | 2 event input | M3 screws | EJ1N-TC2A-CNB |
Basic unit | 2 | 2 current | 2 transistor (NPN) 2 For heating/cooling control applications, the auxiliary outputs on the 2-point models are used for cooling control. On the 4-point models, heating/cooling control can be performed for two input points only. | 2 event input | Screw-less clamp | EJ1N-TC2B-CNB |
Basic unit | 4 | 4 voltage (pulse) | – | – | M3 screws | EJ1N-TC4A-QQ |
Basic unit | 4 | 4 voltage (pulse) | – | – | Screw-less clamp | EJ1N-TC4B-QQ |
High function unit | – | – | 4 transistor (NPN) | 4 event input | M3 screws | EJ1N-HFUA-NFLK |
High function unit | – | – | 4 transistor (NPN) | 4 event input | Screw-less clamp | EJ1N-HFUB-NFLK |
DeviceNet unit | – | – | – | – | Screw connector | EJ1N-HFUB-DRT |
Ethernet unit 2 This unit mounts to the left of the CelciuX° (EJ1) configuration and enables PROFINET or Modbus/TCP network connection. Combine the HFU-ETN with an EDU_-NFLK end unit to use with other devices supporting Modbus-RTU like E5_N temperature controllers and MX2 Inverters. | – | – | – | – | 3 x RJ45 | EJ1N-HFU-ETN |
End unit 2 An End unitis always required for connection to a Basic unit or an HFU. AnHFU cannot operate without a Basic unit. | – | – | 2 transistor (NPN) | – | M3 screws | EJ1C-EDUA-NFLK |
End unit 2 An End unitis always required for connection to a Basic unit or an HFU. AnHFU cannot operate without a Basic unit. | – | – | 2 transistor (NPN) | – | Removable Connector | EJ1C-EDUC-NFLK |
Diameter | Order code |
---|---|
5.8 dia. | E54-CT1 |
12.0 dia. | E54-CT3 |
Description | Order code |
---|---|
G3ZA connecting cable 5 meter | EJ1C-CBLA050 |
USB programming cable | E58-CIFQ1 |
PC based configuration and tuning softwareCX-Thermo | EST2-2C-MV4 |
PROFIBUS Gateway | PRT1-SCU11 |
Item | Type | EJ1_-TC2 | EJ1_-TC4 |
---|---|---|---|
Power supplyvoltage | 24 VDC | ||
Operatingvoltage range | 85% to 110% of rated voltage | ||
Power consumption | 4 W max. (at maximum load) | 5 W max. (at maximum load) | |
Input (seenote) 2 Inputs are fully multi-input. Therefore, platinum resistancethermometer, thermocouple, infrared thermosensor, and analog inputcan be selected. | Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII ES1B Infrared Thermosensor: 10 to 70°C, 60 to 120°C, 115 to 165°C, 140 to 260°C. Analog input: 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 VPlatinumresistance thermometer: Pt100, JPt100 | ||
Input impedance | Current input: 150Ω max., voltageinput: 1 MΩ min. | ||
Controloutputs | Voltage output | Output voltage: 12 VDC ±15%, max.load current: 21 mA (PNP models with short-circuit protection circuit) | |
Transistor output | Max. operating voltage: 30 V, max.load current: 100 mA | – | |
Current output | Current output range: 4 to 20 mA or 0 to 20mA DCLoad: 500 Ω max. (including transfer output)(Resolution: Approx:2,800 for 4 to 20 mA DC, approx. 3,500 for 0 to 20 mA DC) | – | |
Event inputs | Input points | 2 | – |
Contact input | ON: 1 kΩ max., OFF. 100 kΩ min. | – | |
Non-contact input | ON: Residual voltage: 1.5 V max.,OFF: Leakage current: 0.1 mA max. | – | |
Outflow current: approx. 4 mA per point | – | ||
Number ofinput and control points | Input points: 2, control points: 2 | Input points: 4, control points: 4 | |
Setting method | Via communications | ||
Control method | ON/OFF control or 2-PID (withautotuning, selftuning, Heat & Cool autotuning and non-linearcool output selection) | ||
Other functions | Two-point input shift, digital input filter, remote SP, SP ramp, manual manipulated variable, manipulated variable limiter, interference overshoot adjustment, loop burnout alarm, RUN/STOP, banks, I/O allocations, etc. | ||
Alarm output | 2 points via End unit | ||
Communication | RS-485, PROFIBUS, Modbus, DeviceNet | RS-485, PROFIBUS, Modbus, DeviceNet | |
Size in mm(W×H×D) | 31×96×109 | ||
Weight | 180 g | ||
Ambient temperaturerange | Operating –10 to 55°C, Storage–25 to 65°C (with no icing or condensation) | ||
Ambient humidityrange | Operating 25% to 85% (with nocondensation) |
Item | Size in mm (H×W×D) |
---|---|
EJ1N-HFU_-NFL_ | 95.4×31.0×104.9/109.0 |
EJ1N-HFUB-DRT | 90.9×31.0×82.2 |
EJ1C-EDU | 95.4×15.7×76.2/79.7 |
Titel: | Größe: | Typ: |
---|---|---|
EJ1C-EDUA-NFLK EJ1CEDUANFLK EJ1C1000H celciux_C2_BA_brochure_en.pdf | 915 Kbytes | |
EJ1C-EDUA-NFLK EJ1CEDUANFLK EJ1C1000H celciux_C2_BA_connectivity_flyer_en.pdf | 713 Kbytes |
