* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.

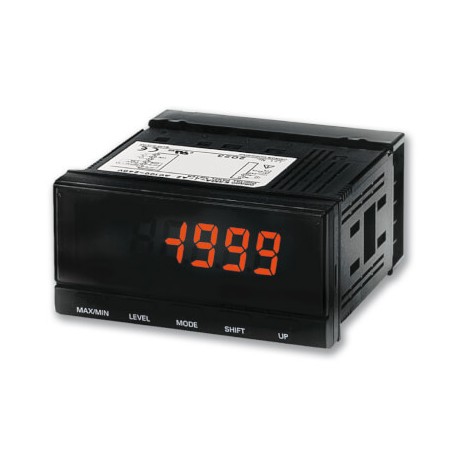

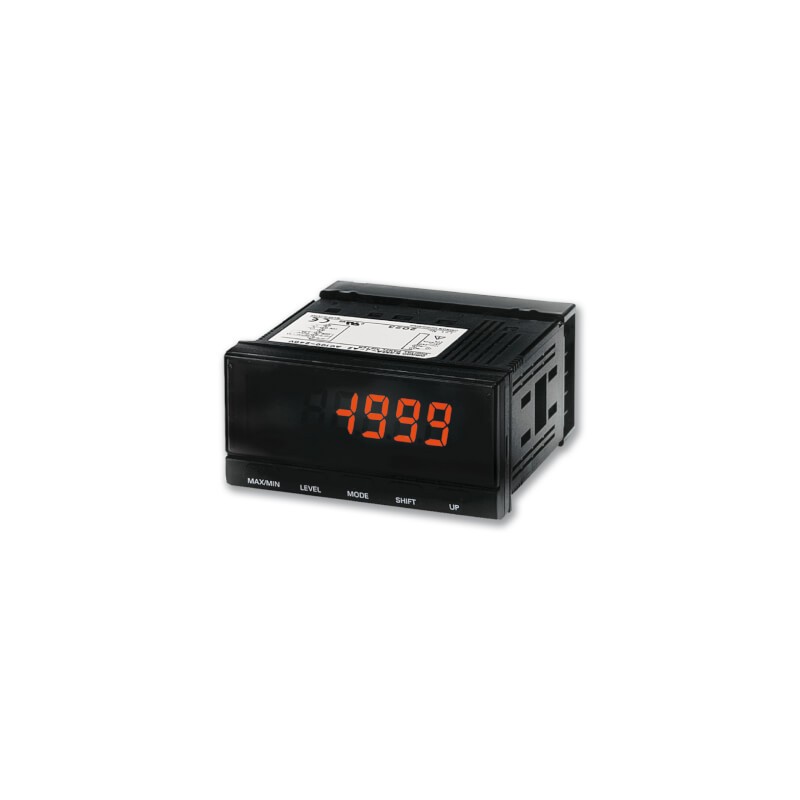

Die Prozessanzeige K3MA-J kann mit 100 bis 240 V AC oder 24 V AC/24 V DC Versorgungsspannung betrieben werden. Beide Ausführungen sind mit derselben hochwertigen Anzeige ausgestattet und besitzen eine Einbautiefe von nur 80 mm.
Indicator | Supply voltage | Input type & ranges | Output | Order code |
---|---|---|---|---|
Process meter | 100 to 240 VAC | DC voltage: 0 to 5 V, 1 to 5 V, -5 to 5 V, -10 to 10 V DC current: 0 to 20 mA, 4 to 20 mA | 2 relay contact outputs (SPST-NO) | K3MA-J-A2 100-240VAC |
24 VAC/VDC | 2 relay contact outputs (SPST-NO) | K3MA-J-A2 24VAC/VDC | ||
Temperature meter | 100 to 240 VAC | Platinum-resistance thermometer: Pt100, JPt100 | 1 relay contact output (SPDT) | K3MA-L-C 100-240VAC |
24 VAC/VDC | 1 relay contact output (SPDT) | K3MA-L-C 24VAC/VDC | ||
Frequency/rate meter | 100 to 240 VAC | Rotary pulse: No voltage: 0.05 to 30.00 Hz; open collector: 0.1 to 5000.0 Hz | 2 relay contact outputs (SPST-NO) | K3MA-F-A2 100-240VAC |
24 VAC/VDC | 2 relay contact outputs (SPST-NO) | K3MA-F-A2 24VAC/VDC |
Type | Order code |
---|---|
Splash-proof soft cover | K32-49SC |
Hard cover | K32-49HC |
Item | 100-240 VAC models | 24 VAC/VDC models |
---|---|---|
Supply voltage | 100 to 240 VAC | 24 VAC (50/60 Hz), 24 VDC |
Operating voltage range | 85 to 110% of the rated supply voltage | |
Power consumption (under maximum load) | 6 VA max. | 4.5 VA max. (24 VAC) 4.5 W max. (24 VDC) |
Ambient temperature | Operating: -10 to 55°C (with no condensation or icing) Storage: -25 to 65°C (with no condensation or icing) | |
Weight | Approx. 200 g | |
Display | 7-segment digital display, character height: 14.2 mm | |
Polarity display | “-” is displayed automatically with a negative input signal | |
Zero display | Leading zeros are not displayed | |
Hold function | Max. hold (maximum value), min. hold (minimum value) | |
Hysteresis setting | Programmable with front-panel key inputs (0001 to 9,999) | |
Delay in comparative outputs | 1 s max. | |
Degree of protection | Front-panel: NEMA4X for indoor use (equivalent to IP66) | |
Memory protection | Non-volatile memory (EEPROM) (possible to rewrite 100,000 times) | |
Size in mm (H×W×D) | 48×96×80 |
