SRBES31
LOVATO ELECTRIC
1

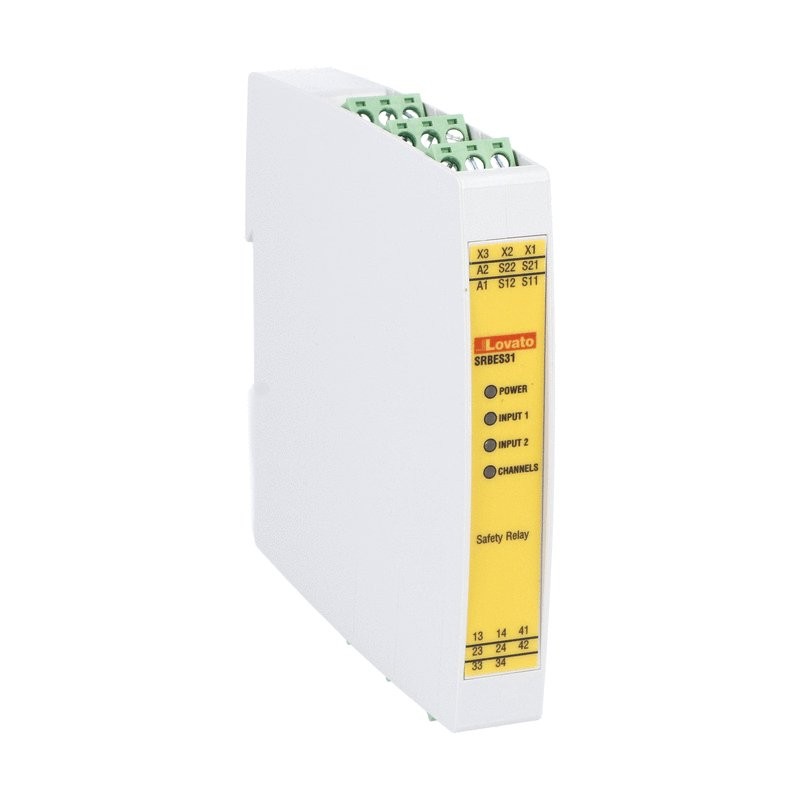

SICHERHEITSRELAIS 3NO+1NC
SICHERHEITSRELAIS SRB... SERIE, EINZELFUNKTION, 3NO+1NC, FÜR NOT-AUS, ZUSATZVERSORGUNG 24VAC/DC, BIS CAT.4, PLe
Home > LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Bestellnummer | SRBES31 |
Gewicht [g] | 200 |
Produktpaketmenge | 1 |
Sammelpackung Bestellmenge | 1 |
Produktpaketmaße [mm] | 130X120X025 |
Volumen [cm³] | 390 |
Barcode [EAN13] | 8013975295458 |
HS Code | 85044090 |
Product designation | SRB | |||
Product type designation | Single function | |||
General characteristics | ||||
Functions | Emergency stop | |||
Auxiliary supply | ||||
Nominal auxiliary voltage supply | 24VAC/DC | |||
Operating range | V | 22...26VDC / 20.4...27.6VAC | ||
Frequency range | Hz | 50/60 | ||
Overvoltage category | III | |||
Insulation voltage | kV | 4 | ||
Protections | Short circuit with PTC | |||
Input characteristics | ||||
Number of inputs | Nr. | 2 | ||
Resistance input circuit | kΩ | Max 1 | ||
Input current | mA | Typical 5 | ||
Output characteristics | ||||
Number of safe outputs NO | Nr. | 3 | ||
Number of safe outputs NC | Nr. | 1 | ||
Number of feedback outputs | Nr. | 0 | ||
Output type | Voltage free contacts, relays with forcibly guided contacts | |||
Output contacts ratings | AC1 250V: 6A-2000VAAC15 230V: 3A DC1 24V: 6ADC13 24V: 2.5A | |||
UL 508 ratings | Pilot duty: B300-R300 | |||
Mechanical life | cycles | >10⁷ | ||
Electrical life AC1 at 360 commutations/h | cycles | 10⁵ | ||
Safety parameters | ||||
ISO 13849-1 security category | Cat. 4 | |||
ISO 13849-1 performance level | PLe | |||
Mechanical features | ||||
Cable connection | Removable screw terminal | |||
Fixing | 35mm DIN rail | |||
Weight | g | 230 | ||
Ambient conditions | ||||
Protection degree | IP40 on frontIP20 on terminals | |||
Pollution degree | 2 | |||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +60 | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | +70 | ||
Relative humidity | % | ≤95 | ||
ETIM classification | ||||
ETIM 8.0 | EC001449 - Device for monitoring of safety-related circuits |
