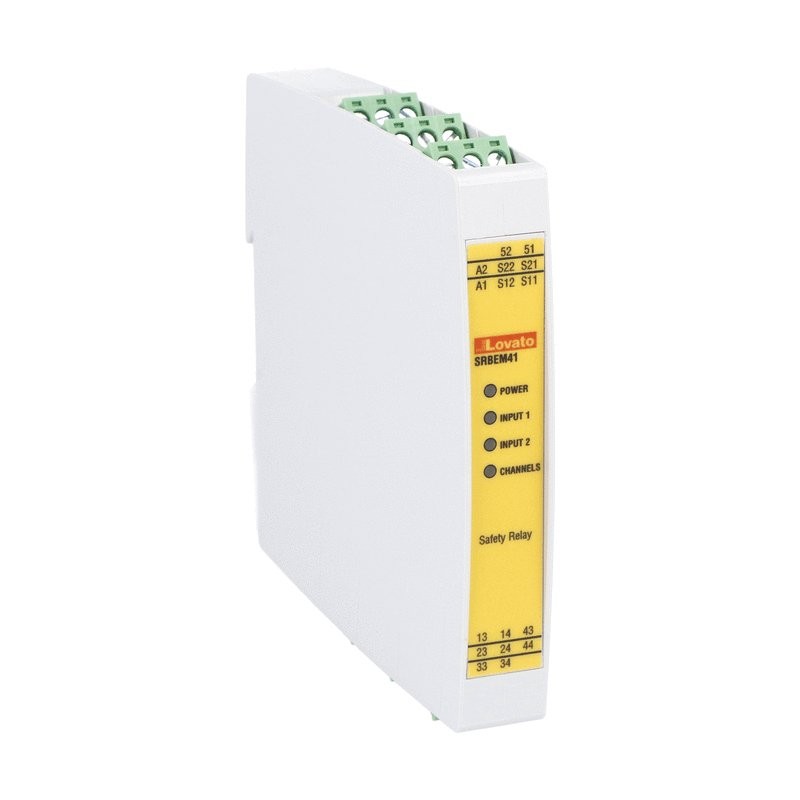

SRBEM41
LOVATO ELECTRIC
1
SICHERHEITSRELAIS EXP. EINHEIT 4NO+1NC
SICHERE AUSGÄNGE ERWEITERUNGSMODUL SRB... BAUREIHE, 4NO+1NC, ZUSATZVERSORGUNG 24VAC/DC
Home > LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Bestellnummer | SRBEM41 |
Gewicht [g] | 200 |
Produktpaketmenge | 1 |
Sammelpackung Bestellmenge | 1 |
Produktpaketmaße [mm] | 130X120X025 |
Volumen [cm³] | 390 |
Barcode [EAN13] | 8013975295465 |
HS Code | 85044090 |
Product designation | SRB | |||
Product type designation | Safe outputs expantion module | |||
General characteristics | ||||
Functions | Expansion module | |||
Auxiliary supply | ||||
Nominal auxiliary voltage supply | 24VAC/DC | |||
Operating range | V | 22...26VDC / 20.4...27.6VAC | ||
Frequency range | Hz | 50/60 | ||
Overvoltage category | III | |||
Insulation voltage | kV | 4 | ||
Protections | Short circuit with PTC | |||
Input characteristics | ||||
Number of inputs | Nr. | 2 | ||
Resistance input circuit | kΩ | Max 1 | ||
Input current | mA | Typical 5 | ||
Input voltage | 0-35VDC | |||
Output characteristics | ||||
Number of safe outputs NO | Nr. | 4 | ||
Number of safe outputs NC | Nr. | 0 | ||
Number of feedback outputs | Nr. | 1NC | ||
Output type | Voltage free contacts, relays with forcibly guided contacts | |||
Output contacts ratings | AC1 250V: 6A-2000VAAC15 230V: 3A DC1 24V: 6ADC13 24V: 2.5A | |||
UL 508 ratings | Pilot duty: B300-R300 | |||
Mechanical life | cycles | >10⁷ | ||
Electrical life AC1 at 360 commutations/h | cycles | 10⁵ | ||
Safety parameters | ||||
ISO 13849-1 security category | Cat. 4 | |||
ISO 13849-1 performance level | PLe | |||
Mechanical features | ||||
Cable connection | Removable screw terminal | |||
Fixing | 35mm DIN rail | |||
Weight | g | 239 | ||
Ambient conditions | ||||
Protection degree | IP40 on frontIP20 on terminals | |||
Pollution degree | 2 | |||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +60 | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | +70 | ||
Relative humidity | % | ≤95 | ||
ETIM classification | ||||
ETIM 8.0 | EC001449 - Device for monitoring of safety-related circuits |
