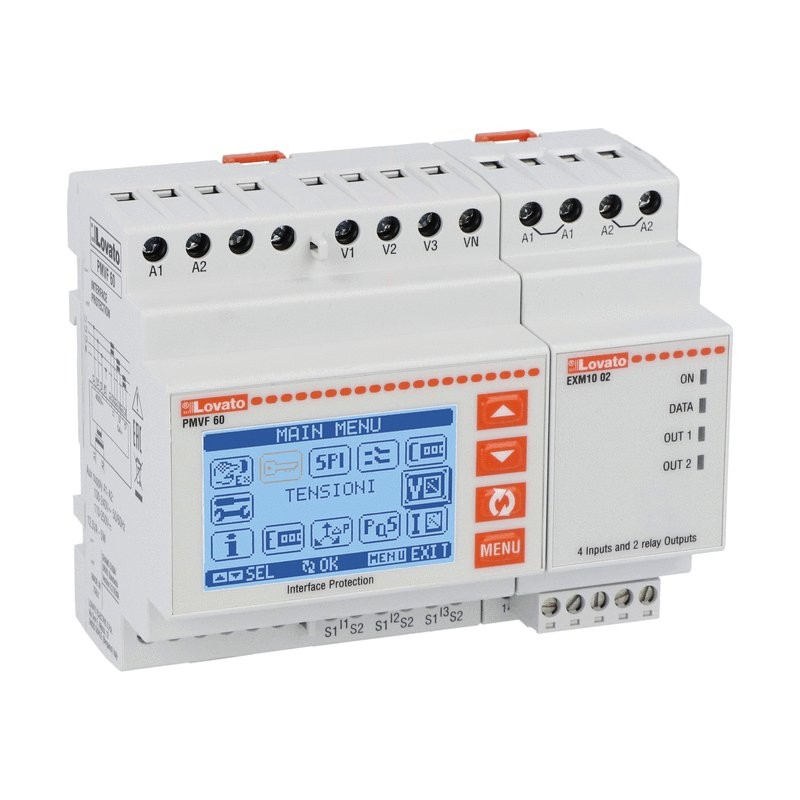

PMVF60 LOVATO SCHNITTSTELLENSCHUTZ FÜR DEWA (AE)
PMVF60
LOVATO ELECTRIC
SCHNITTSTELLENSCHUTZ FÜR DEWA (AE)
SCHNITTSTELLENSCHUTZEINHEIT KONFORM MIT SHAMS DUBAI DRRG (DEWA) - SEC (Saudi Electricity Company) FÜR DREIPHASIGES SYSTEM, MIT ODER OHNE NEUTRALE, NIEDER- UND MITTELSPANNUNG, MINIMALE UND MAXIMALE SPANNUNG UND FREQUENZ DUAL THRESHOLD PROTECTION, ROCOF UND VECTOR SHIFT, 230VAC - 400VAC
Überwachungsrelais - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Bestseller
▲Mehr Infos
▲| Bestellnummer | PMVF60 |
| Gewicht [g] | 420 |
| Produktpaketmenge | 1 |
| Sammelpackung Bestellmenge | 1 |
| Produktpaketmaße [mm] | 153X117X092 |
| Volumen [cm³] | 1646 |
| Barcode [EAN13] | 8013975227121 |
| HS Code | 85364900 |
SHAMS DUBAI - DRRG STARDARDS VERSION 2.0
SEC (Saudi Electricity Company) TECHNICAL STANDARD
IEC/EN 60255-5
IEC/EN 61010-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
| Product designation | Interface protection system units compliant with standard SHAMS DUBAI - DRRG (DEWA) | |||
| Product type designation | PMVF60 | |||
| General characteristics | ||||
| Description | System with or without neutral in low or medium voltage. Dual threshold minimum and maximum voltage and frequency protection. ROCOF and Vector shift | |||
| Type of system | Three phase | |||
| Power supply | ||||
| Operating voltage range | 85…264VAC / 93.5…300VDC | |||
| Rated frequency | Hz | 45…55 | ||
| Control circut | ||||
| Rated current (Ie) | A | 1 or 5 in AC programmable | ||
| Auxiliary supply | ||||
| Rated auxiliary supply voltage Us | ||||
| AC | ||||
| min | VAC | 100 | ||
| Max | VAC | 240 | ||
| DC | ||||
| min | VDC | 110 | ||
| Max | VDC | 250 | ||
| Power consumption | ||||
| AC (Max) | ||||
| VA | 4.6VA al 110VAC; 12.5VA at 230VAC | |||
| DC (Max) | ||||
| VA | 23mA at 110VDC; 11mA at 250VDC | |||
| Power dissipation | ||||
| AC (Max) | ||||
| W | 2.5W at 110VAC;2.7W at 230VAC | |||
| DC (Max) | ||||
| W | 2.3W at 110VDC; 2.5W at 250VDC | |||
| Immunity time for microbreakings | ms | ≤50ms at 100VDC; ≤200ms at 240VDC | ||
| Voltage inputs | ||||
| Maximum rated operational voltage | 400VAC L-L;230VAC L-N 50Hz | |||
| Measurement range | V | 20…480VAC L-L; 10…276VAC L-N | ||
| Frequency range | Hz | 45…55 | ||
| Current inputs | ||||
| Measurement range | For 1A scale: 0.01…1.2A; for 5A scale: 0.01…6A | |||
| Measurement method | RMS | |||
| Overload peak | A | 50A for 1 second | ||
| Burden per phase | W | ≤0.6W | ||
| Relay outputs | ||||
| Number of relays | Nr. | 2 | ||
| Contact arrangement | 1 changeover contact/SPDT each | |||
| Rated operational voltage AC (IEC) | VAC | 250 | ||
| UL/CSA and IEC/EN 60947-5-1 designation | For NO contact: 5A 250VAC AC1/C300; 5A 30VDCFor NC contact: 2A 250VAC AC1/C300; 2A 30VDC | |||
| Digital inputs | ||||
| Number and type of inputs | 4 negative (PNP) | |||
| Input voltage | 12VDC isolated | |||
| Input current | mA | 7 | ||
| Connections | ||||
| Terminals type | Screw - removable | |||
| Tightening torque for terminals | ||||
| max | Nm | 0.8 | ||
| max | Ibin | 4.5 | ||
| Conductor cross section | ||||
| AWG/Kcmil | ||||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| IEC | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 4 | ||
| Housing | ||||
| Execution (n° of modules) | 6 | |||
| Material | Polyamide | |||
| Mounting | Modular 6U | |||
| IEC degree of protection | IP40 on front; IP20 at terminals | |||
| Dimensions (W x H x D) | mm | 108 x 105.4 x 63 | ||
| Weight | g | 470 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC001438 - Voltage monitoring relay | |||
