CN6322220
LOVATO ELECTRIC
1

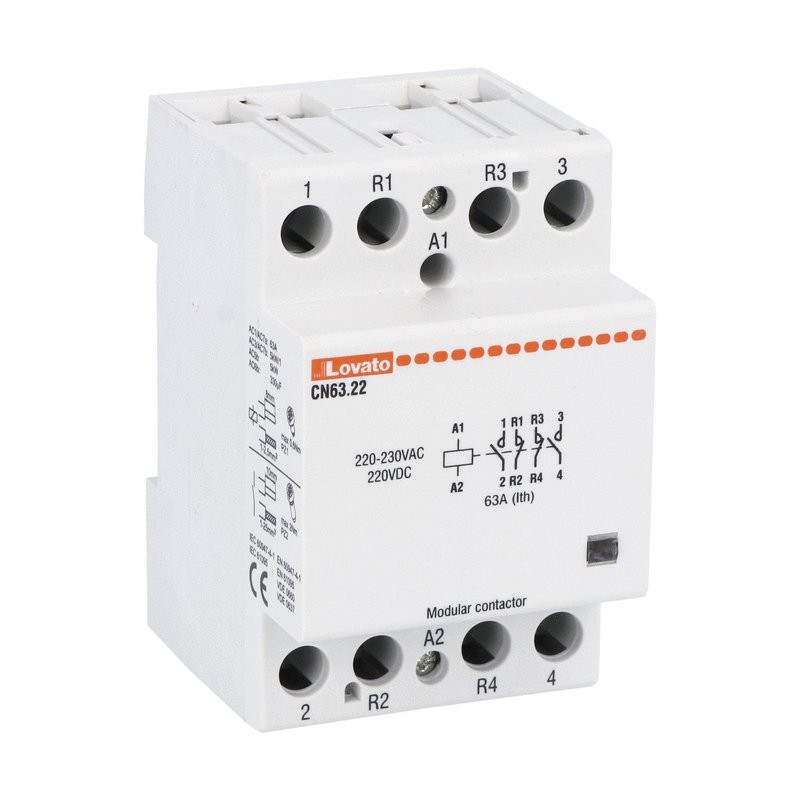

Schütz modular 2NA + 2NC 63A 220V AC/DC
Modulares Schütz, dreipolig oder vierpolig, 63A AC1, 220...230VAC (2NO+2NC)
Installationsschütze - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Bestellnummer | CN6322220 |
Gewicht [g] | 440 |
Produktpaketmenge | 5 |
Sammelpackung Bestellmenge | 5 |
Produktpaketmaße [mm] | 275X070X090 |
Volumen [cm³] | 355.3 |
Barcode [EAN13] | 8013975157381 |
HS Code | 85365080 |
Product designation | MODULAR CONTACTOR | |||
Product type designation | CN | |||
Operating voltage type | AC/DC | |||
Number of poles | 4 | |||
Number of DIN modules | 3 | |||
Electrical features | ||||
IEC Conventional free air thermal current Ith | A | 63 | ||
Operational current AC1 and AC-7a ≤400V | A | 63 | ||
Operational current AC3 and AC-7b ≤400V | A | 30 | ||
Rated insulation voltage Ui IEC/EN | V | 440 | ||
Rated impulse withstand voltage Uimp | kV | 4 | ||
Minimum switching capacity | ≥17V ≥50mA | |||
Power dissipation per pole (average value) Ith | W | 8 | ||
Control circuit | ||||
Auxiliary rated supply voltage Us | 220VAC/VDC | |||
Auxiliary contacts | ||||
NO | Nr. | 2 | ||
NC | Nr. | 2 | ||
Average coil consumption ≤20°C | ||||
in-rush | W | 5 | ||
holding | W | 5 | ||
Operating voltage | ||||
pick-up | ||||
min | %Us | 85 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 75 | ||
Operating times | ||||
Average time | ||||
Closing NO | ||||
min | ms | 15 | ||
max | ms | 20 | ||
Opening NO | ||||
min | ms | 35 | ||
max | ms | 45 | ||
Operations | ||||
Mechanical life | cycles | 3000000 | ||
Electrical life AC3 | cycles | 150000 | ||
Electrical life AC1 | cycles | 100000 | ||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -15 | ||
max | °C | 55 | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | 80 | ||
Max altitude | m | 2000 | ||
Mechanical features | ||||
Fixing | DIN rail 35mm | |||
Tightening torque for coil terminal | ||||
max | Nm | 0.6 | ||
max | lbin | 0.6 | ||
Tightening torque for terminals | ||||
max | Nm | 2 | ||
max | lbin | 1.48 | ||
Conductor section | ||||
Coil terminal | ||||
min | mm² | 1 | ||
max | mm² | 2.5 | ||
Power terminal | ||||
min | mm² | 1.5 | ||
max | mm² | 16 | ||
Terminals tool | PZ2 | |||
Weight | g | 425 | ||
Resistance & Protection | ||||
Frontal IP degree | IP20 | |||
Pollution degree | 3 |
