BF150T4A400
LOVATO ELECTRIC
1

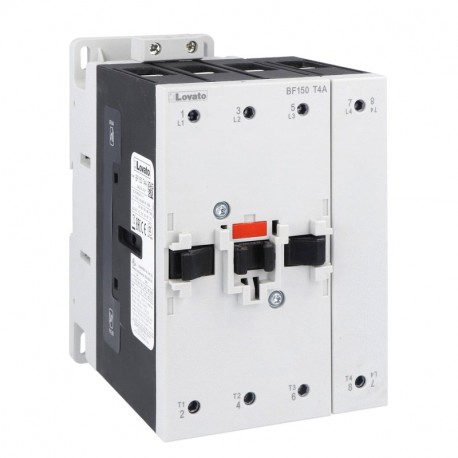

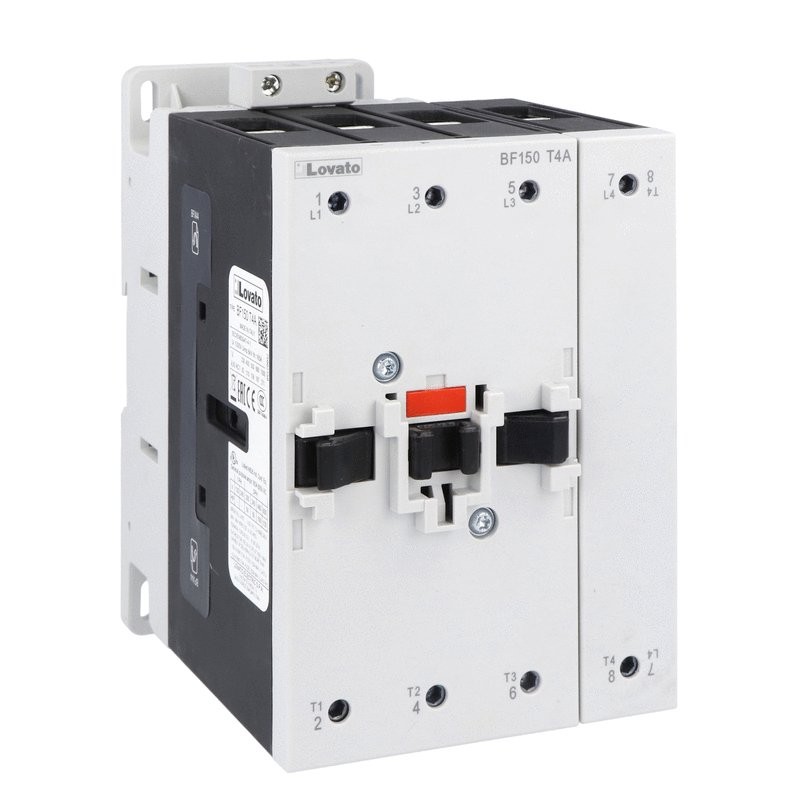

Schütz Tetrapolar 165A AC1 Spule 400V AC
Schütze - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Bestellnummer | BF150T4A400 |
Gewicht [g] | 2780 |
Produktpaketmenge | 1 |
Sammelpackung Bestellmenge | 1 |
Produktpaketmaße [mm] | 173X108X145 |
Volumen [cm³] | 2709 |
Barcode [EAN13] | 8013975239452 |
HS Code | 85365080 |
Product designation | Power contactor | |||
Product type designation | BF150 | |||
Contact characteristics | ||||
Number of poles | Nr. | 4 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operational frequency | ||||
min | Hz | 25 | ||
max | Hz | 400 | ||
IEC Conventional free air thermal current Ith | A | 165 | ||
Operational current Ie | ||||
AC-1 (≤40°C) | A | 165 | ||
AC-1 (≤55°C) | A | 135 | ||
AC-1 (≤70°C) | A | 118 | ||
AC-3 (≤440V ≤55°C) | A | 150 | ||
AC-4 (400V) | A | 70 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 165 | ||
75V | A | 150 | ||
110V | A | 10 | ||
220V | A | – | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 165 | ||
75V | A | 165 | ||
110V | A | 150 | ||
220V | A | 14 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 165 | ||
75V | A | 165 | ||
110V | A | 160 | ||
220V | A | 150 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 165 | ||
75V | A | 165 | ||
110V | A | 165 | ||
220V | A | 165 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 60 | ||
75V | A | 44 | ||
110V | A | 6 | ||
220V | A | – | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 82 | ||
75V | A | 70 | ||
110V | A | 80 | ||
220V | A | 7 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 195 | ||
75V | A | 110 | ||
110V | A | 120 | ||
220V | A | 120 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
≤24V | A | 165 | ||
48V | A | 130 | ||
75V | A | 130 | ||
110V | A | 150 | ||
220V | A | 150 | ||
Short-time allowable current for 10s (IEC/EN60947-1) | A | 1200 | ||
Protection fuse | ||||
gG (IEC) | A | 250 | ||
aM (IEC) | A | 160 | ||
Making capacity (RMS value) | A | 1500 | ||
Breaking capacity at voltage | ||||
440V | A | 1200 | ||
500V | A | 1025 | ||
690V | A | 905 | ||
Resistance per pole (average value) | mΩ | 0.45 | ||
Power dissipation per pole (average value) | ||||
Ith | W | 12 | ||
AC3 | W | 10.1 | ||
Tightening torque for terminals | ||||
min | Nm | 6 | ||
max | Nm | 7 | ||
min | Ibin | 4.4 | ||
max | Ibin | 5.2 | ||
Tightening torque for coil terminal | ||||
min | Nm | 0.8 | ||
max | Nm | 1 | ||
min | Ibin | 0.59 | ||
max | Ibin | 0.74 | ||
Conductor section | ||||
Flexible w/o lug conductor section | ||||
min | mm² | 1.5 | ||
max | mm² | 70 | ||
Flexible c/w lug conductor section | ||||
min | mm² | 1.5 | ||
max | mm² | 70 | ||
Power terminal protection according to IEC/EN 60529 | IP20 front | |||
Mechanical features | ||||
Operating position | ||||
normal | vertical plan | |||
allowable | ±30° | |||
Fixing | Screw / DIN rail 35mm | |||
Weight | g | 2420 | ||
Operations | ||||
Mechanical life | cycles | 15000000 | ||
Electrical life | cycles | 800000 | ||
Safety related data | ||||
EMC compatibility | yes | |||
AC coil operating | ||||
Rated AC voltage at 50/60Hz | V | 400 | ||
AC operating voltage | ||||
of 50/60Hz coil powered at 50Hz | ||||
pick-up | ||||
min | %Us | 80 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 55 | ||
of 50/60Hz coil powered at 60Hz | ||||
pick-up | ||||
min | %Us | 85 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 40 | ||
max | %Us | 55 | ||
AC average coil consumption at 20°C | ||||
of 50/60Hz coil powered at 50Hz | ||||
in-rush | VA | 300 | ||
holding | VA | 20 | ||
of 50/60Hz coil powered at 60Hz | ||||
in-rush | VA | 300 | ||
holding | VA | 17 | ||
of 60Hz coil powered at 60Hz | ||||
in-rush | VA | 300 | ||
holding | VA | 20 | ||
Dissipation at holding ≤20°C 50Hz | W | 6.5 | ||
Max cycles frequency | ||||
Mechanical operation | cycles/h | 1500 | ||
Operating times | ||||
Average time for Us control | ||||
in AC | ||||
Closing NO | ||||
min | ms | 45 | ||
max | ms | 32 | ||
Opening NO | ||||
min | ms | 9 | ||
max | ms | 24 | ||
UL technical data | ||||
General USE | ||||
Contactor | ||||
AC current | A | 165 | ||
Short-circuit protection fuse, 600V | ||||
High fault | ||||
Short circuit current | kA | 100 | ||
Fuse rating | A | 200 | ||
Fuse class | J | |||
Standard fault | ||||
Short circuit current | kA | 10 | ||
Fuse rating | A | 250 | ||
Fuse class | RK5 | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -50 | ||
max | °C | 70 | ||
Storage temperature | ||||
min | °C | -60 | ||
max | °C | 80 | ||
Max altitude | m | 3000 | ||
ETIM classification | ||||
ETIM 8.0 | EC000066 - Power contactor, AC switching |
