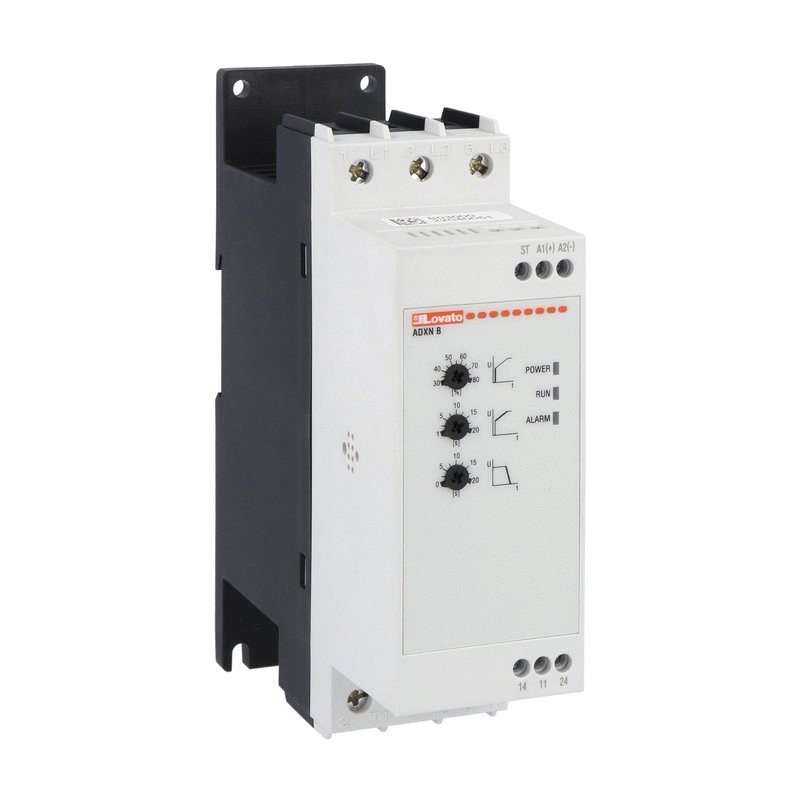

ADXNB030 LOVATO SOFTSTARTER 30A AUX 100-240VAC BASIC
ADXNB030
LOVATO ELECTRIC
SOFTSTARTER 30A AUX 100-240VAC BASIC
Softstarter, ADXNB... Typ, Basisversion, mit integriertem Bypass-Relais. Hilfsversorgung 100...240VAC. Nennbetriebsspannung 208...600VAC, 30A
Soft-Motorstarter - LOVATO ELECTRIC
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von LOVATO ELECTRIC
OFT ZUSAMMEN GEKAUFT
▲Bestseller
▲Mehr Infos
▲| Bestellnummer | ADXNB030 |
| Gewicht [g] | 0.63 |
| Produktpaketmenge | 1 |
| Sammelpackung Bestellmenge | 1 |
| Produktpaketmaße [mm] | 185X176X084 |
| Volumen [cm³] | 2800 |
| Barcode [EAN13] | 8013975299043 |
| HS Code | 85044090 |
cULus
EAC
RCM (pending)
IEC/EN/BS 60947-1
IEC/EN/BS 60947-4-2
UL 60947-4-2
CSA C22.2 n° 60947-4-2
| Product designation | Soft starter basic | |||
| Product type designation | ADXNB | |||
| Motor type | Asynchronous three phase | |||
| Electrical features | ||||
| Supplies voltage | ||||
| Type of system | Three phase | |||
| Rated supply voltage | V | 208…600VAC | ||
| auxiliary supply voltage (Us) | 100…240VAC | |||
| Rated frequency | Hz | 50/60 | ||
| Rated starter current Ie | A | 30 | ||
| Rated motor power | ||||
| IEC ratings (T≤40°C) | ||||
| 230VAC | kW | 7.5 | ||
| 400VAC | kW | 15 | ||
| 500VAC | KW | 18.5 | ||
| UL ratings (T≤40°C) | ||||
| 220-240VAC | HP | 10 | ||
| 380-415VAC | HP | 15 | ||
| 440-480VAC | HP | 20 | ||
| 550-600VAC | HP | 25 | ||
| Number of controlled phases | Nr. | 2 | ||
| Built-in bypass | Yes | |||
| Cooling System | Natural or forced (optional) | |||
| Rated insulation voltage Ui | V | 600 | ||
| Programming interface | ||||
| Potentiometer | Settings: starting voltage, acceleration ramp, deceleration ramp | |||
| Display | No | |||
| Programming with NFC technology | No | |||
| Optical port | No | |||
| Startup and stop settings | ||||
| Startup method | Voltage ramp | |||
| Stop method | Voltage ramp or free-wheel stop | |||
| Acceleration ramp | s | 1-20 | ||
| Deceleration ramp | s | 0-20 | ||
| Startup voltage | % | 30-80 | ||
| Protections | ||||
| Power supply Protection | No power line, phase loss, frequency out of limits, phase sequence (configurable) | |||
| Starter protection | Overtemperature | |||
| Input and Output | ||||
| Digital inputs | ||||
| Number of digital input | Nr. | 1 | ||
| Digital input type | Volt-free contact | |||
| Digital input functions | Motor start | |||
| Digital outputs | ||||
| Number of digital output | Nr. | 2 | ||
| Digital output arrangement | 2 NO contacts with the same common, 5A 250VAC AC1 - 5A 30 VDC | |||
| Digital output functions | Line contactor (Run), TOR (Top Of Ramp) | |||
| Communication interfaces | ||||
| Communication interface | cycles | No | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60°C (with current derating >40°C) | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Max altitude | m | 1000 without derating of the starter current | ||
| Relative humidity | % | <80% | ||
| Pollution degree | 2 | |||
| Installation category | III | |||
| Housing | ||||
| Mounting | Screw-fixing or 35mm DIN rail (IEC/EN/BS 60715) | |||
| IP degree of protection | IP20 | |||
| Dimensions (W x H x D) | mm | 45 x 159 x 128.4 | ||
| Weight | Kg | 0.63 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000640 - Soft starter | |||
