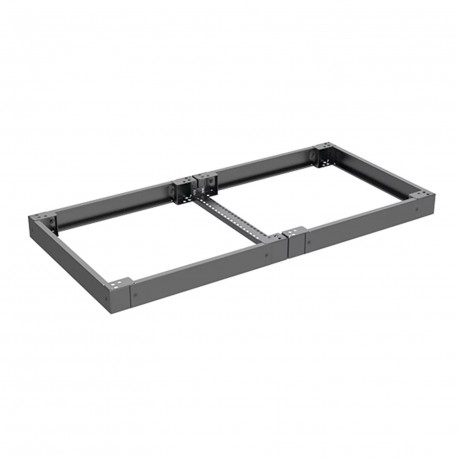

PCP05 nVent HOFFMAN Sockelverstärkungsprofil, 500 PCP05

Beschreibung:

Zur Stabilisierung von Sockeln wenn Kabel zwischen angereihten Schränken verlegt werden. Bei 200 mm Sockeln können PCP in drei verschiedene Höhen montiert werden; Oben, mittig und am Boden. Das Lochraster für Kafigmuttern und Schrauben M5x10 erlaubt es weiteres Zubehör zu montieren.

Material:

2 mm Stahlblech.

Oberfläche:

RAL 7022, Pulver-Strukturlackierung.

Verpackungseinheit:

2 Profile mit Montagematerial.

Feature:

Mild steel combining profile with 25mm integrated hole pattern, for combinable floor standing enclosure plinths.

Advantage:

The profile is mounted, connecting the plinth's front and rear corner pieces of the bayed plinths, providing a more rigid solution. The integrated hole pattern allows customers to fix cables and components securely.

Benefit:

The extra rigidly that the profile provides ensures that the enclosure's assembly can be transported safety and securely either in the factory or in the field. Both incoming and outgoing cables can be installed and secured easily to the profile's hole pattern.

Comment:

The reinforcement can be achieved with the used of plinth side panels in the joinings, but this solution is better because is joining the four corner pieces instead two and maintain the communication between the plinths.
