EFR202 nVent HOFFMAN NC-Thermostat voreingestellt EFR202

Beschreibung:

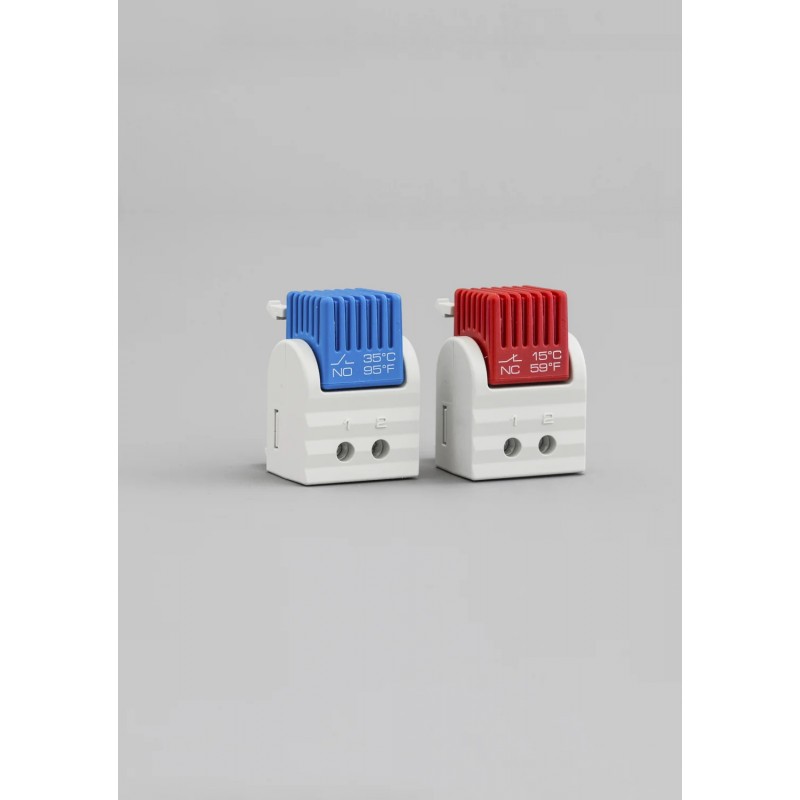

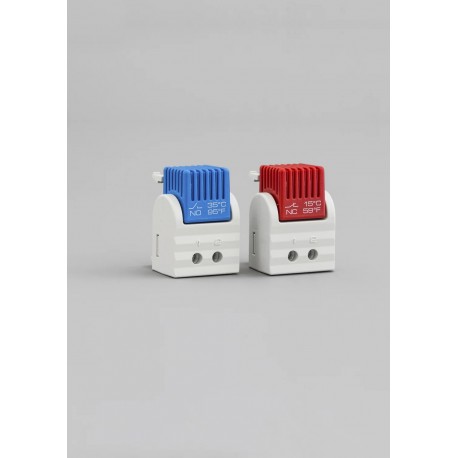

Voreingestelltes Thermostat zur Regulierung von Temperaturen in Schaltschränken. Sensor thermostatisches Bimetall. Grundeinstellung geschlossen, rot (EFR202) zur Regulierung von Heizungen. Grundeinstellung offen, blau (EFR201) zur Regulierung von Filterlüftern, Wärmetauschern oder Anzeigemodulen. Montage-Clip für 35 mm DIN-Schiene (EN60715).

Material:

Plastik gemäß UL94 V-0.

Schalterleistung:

250 V AC, 5 (1,6) A, 120 V AC, 10(2) A. 24 V DC, 30 W. Wert in Klammern für induiktive Ladung.

Betriebstemperatur:

-40 °C bis +80 °C.

Lebensdauer:

> 100.000 Zyklen.

Anschluss:

2-polige Klemme für 2.5 mm², Drehmoment 0.8 Nm max.

Schutzart:

IP 20.

Zertifikate:

CE, EAC, cULus_UL Listed.

Oberfläche:

Lichtgrau.

Verpackungseinheit:

1 Stück.

Feature:

Fixed temperature thermostat, with either a normally open (NO) or normally closed (NC) contact.

Advantage:

The pre-set thermostat allows energy to flow to a device when the temperature threshold has been exceeded (NO variant), or when the internal temperature has dropped below the threshold (NC variant).

Benefit:

The installed devices, such as filter fans or fan heaters, automatically turn on or off when they are required, which reduces the operational cost of the control panel. The pre-set temperature limit, avoids tampering by unauthorised personnel.

Comment:

The thermostat with a normally open contact (EFR201), is used to control cooling or high temperature alarms, and the thermostat with a normally closed contact (EFR202), is used to control heating.
