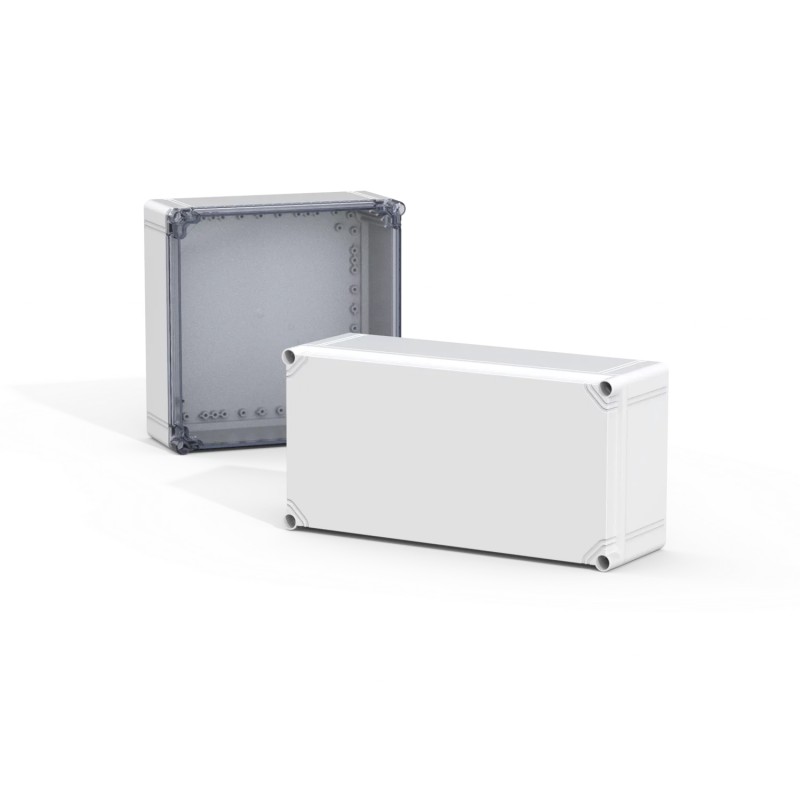

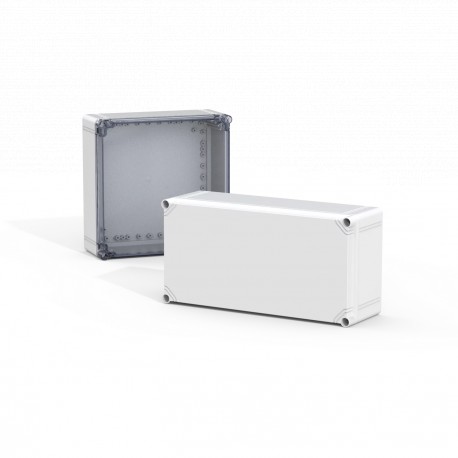

OABP303013TE nVent HOFFMAN Klemmenkasten, 300x300x132

Beschreibung:

ABS, halogenfrei-Klemmenkästen für Innenanwendungen. Geringe UV-Resistenz.

Material:

ABS. Transparente Abdeckung: Polycarbonat.

Dichtung:

Polyurethan (PUR) -Dichtung im Gehäusedeckel integriert.

Temperaturbeständigkeit:

-40° bis +60° C.

Entflammbarkeit:

UL 94 HB.

Schutzart:

IP 66/67 IK 06 (-25°C), IK 07 (+35°C).

Oberfläche:

RAL 7035.

Lieferumfang:

Gehäusekorpus, Deckel, Deckelschrauben in Polyamid und Montageschrauben.

Feature:

ABS terminal box, available in a wide range of sizes, that can be extended in depth, with a high IP 66, 67 protection degree.

Advantage:

Customers can choose terminal boxes that meet their size requirements, off the shelf. The installed components inside the terminal box will be safe and secure due to the high protection degree.

Benefit:

Customers can receive terminal boxes with a short delivery time, that match their size requirements. This will also remove any extra costs due to oversizing. Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box. If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted.

Comment:

The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box. The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required.
