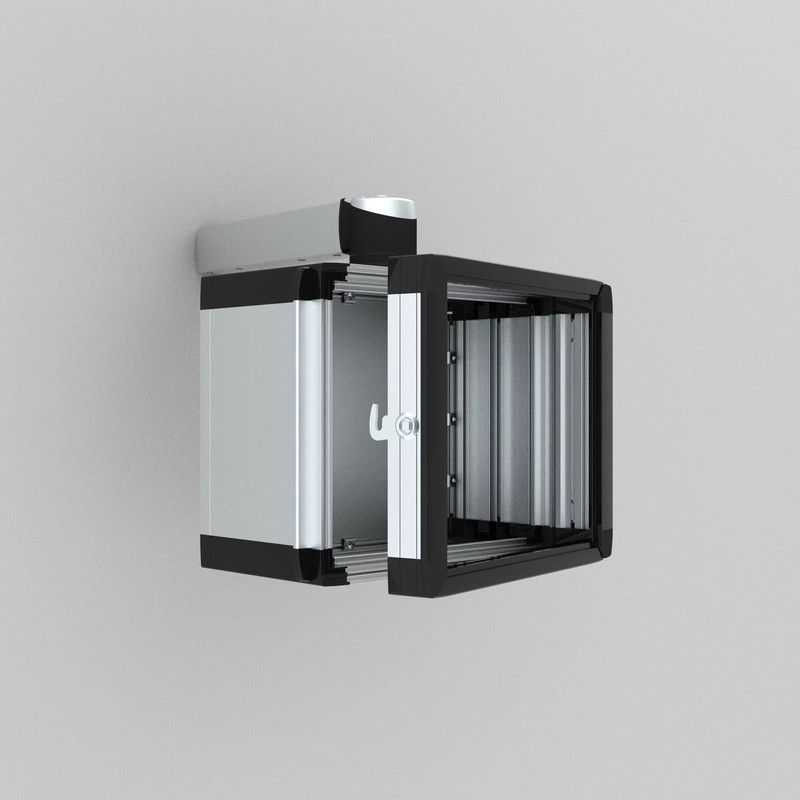

OIDES355205 nVent HOFFMAN HMI-Erweiterung, 354x525x55 OIDES355205

Beschreibung:

OICP-Bediengehäuse mit Tiefenaufbauprofilen. Es vergrößert die Tiefe des OICP-Paneels um 55 mm.

Material:

Gehäuse und Aufbauprofile : Al Mg Si05. Ecken: Al Si12.

Schutzart:

Entspricht IP 65.

Oberfläche:

Gehäuse, Aufbauprofile und Rückwand: anodisiertes Aluminium. Ecken: RAL 7016.

Verpackungseinheit:

OICP-Bediengehäuse mit Rückwand, Tiefenaufbauprofilen, externen Scharnieren und Schließsystem.

Feature:

Aluminium operator interface control panel, with a pre-machined hole pattern to mount onto a swing arm system, hinged extension frame, removable aluminium front plate accessory and a IP 65 protection degree.

Advantage:

Components can be installed easily because of the removable front panel (supplied as an accessory). Installed components are easily accessible due to the removable rear panel and hinged extension frame which also increases the panels depth by 55 mm. The enclosure's pre-machined cut-out allows the panel to be quickly mounted to the swing arm system in the field. The pre-mounted enclosure side handles allow customers to manipulate the enclosure easily when performing operations. The aluminium body will dissipate a larger amount of heat, that has been generated from the installed components.

Benefit:

The enclosure reduces customer's labour cost and allows ergonomic use in the field, due to the pre-installed handles. The internal temperature of the control panel is kept low which may remove the requirement for ventilation. The depth extension frame allows customers to install larger components, if required.

Comment:

The aluminium front plate (OIFP), must be ordered separately.
