MSHS410010
ELDON
1
Verfügbar Schiff am heute

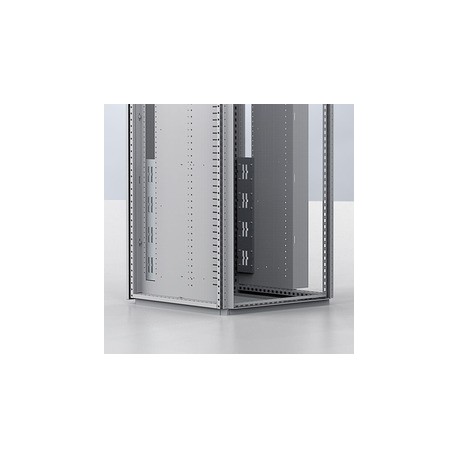

Schienenträger 2 // 100x10
Sop. bars die Hauptstraße.2x(100x10), bis zu 3600A
This horizontal busbar support, MSHS, for two bars up to 120x10 mm, is available off the shelf and has been tested according to IEC 61439. It can be mounted at any height behind fix, modular, and plug-in systems.
Energieverteilsysteme/Schaltanlagen > Zubehör/Ersatzteile für Sammelschienen
Stromverteilung
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Busbar supports up to 3600A to be mounted horizontally behind the compartments. Mounts to the internal side panels MSPS, and in the height position which we need. Supports for single or double bar per phase for bar thickness 10 mm, and width from 10 to 120 mm. Distance between bars of 20 mm. |
Material: | Polycarbonate reinforced with 10% of glass material. |
Lieferumfang: | Busbar support for 3 phases and neutral, and mounting material. |
Feature: | Horizontal main busbar support for 2 bars up to 120 x 10 mm, which can be mounted at the required height behind any system (fix, modular or plug-in). |
Advantage: | The standard supports are available off the shelf and have been tested according to IEC 61439. The supports are suitable for the most common bars on the market. Main busbars can be installed in the middle of the enclosure height, which will reduce the required busbar section. |
Benefit: | A flexible and reliable solution that ensures procurement, design and installation can be done efficiently reducing the labour time required. |
Comment: | Internal side panels (MSPS) are required in order to mount the busbar supports. |
Titel: | Größe: | Typ: |
---|---|---|
MSHS410010 MSHS410010 DE_MSHS401010.pdf | 163 Kbytes | |
Gesamtkatalog herunterladen |
